27
maximum signal value set on the "General setting of the U10 multi-purpose
input" page of this menu; if the value is "NTC signal", the parameter will corre-
spond to the maximum temperature measured by the NTC probe (the minimum
and maximum temperature values measured by the NTC probe are specied in
a window that is only visible if the "NTC" option is chosen)

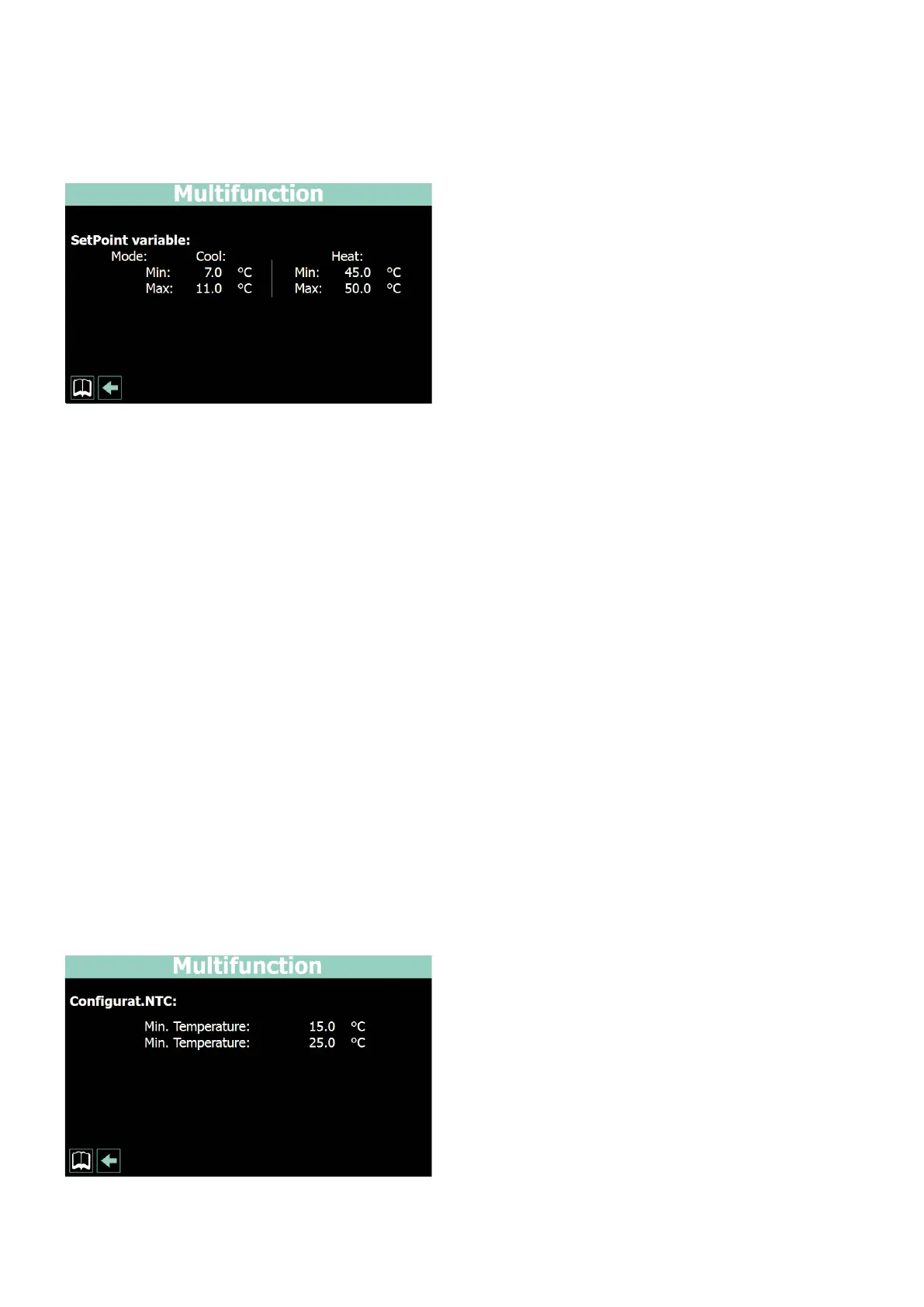

14.3 SETTING FOR VARIABLE SETPOINT FUNCTION
— Used to dene the set-point (for cooling mode) to be assigned to the mini-
mum signal read on input U10. If voltage (0-10V) or current (4-20mA) signals
are selected as the value, the minimum set-point specied in this parameter
will correspond to the minimum signal value set on the "General setting of the
U10 multi-purpose input" page of this menu; if the value is "NTC signal", the
parameter will correspond to the minimum temperature measured by the NTC
probe (the minimum and maximum temperature values measured by the NTC
probe are specied in a window that is only visible if the "NTC" option is chosen)
— Used to dene the set-point (for cooling mode) to be assigned to the maxi-
mum signal read on input U10. If voltage (0-10V) or current (4-20mA) signals
are selected as the value, the maximum set-point specied in this parameter
will correspond to the maximum signal value set on the "General setting of the
U10 multi-purpose input" page of this menu; if the value is "NTC signal", the
parameter will correspond to the minimum temperature measured by the NTC
probe (the minimum and maximum temperature values measured by the NTC
probe are specied in a window that is only visible if the "NTC" option is chosen)
— Used to dene the set-point (for heating mode) to be assigned to the mini-
mum signal read on input U10. If voltage (0-10V) or current (4-20mA) signals
are selected as the value, the minimum set-point specied in this parameter
will correspond to the minimum signal value set on the "General setting of the
U10 multi-purpose input" page of this menu; if the value is "NTC signal", the
parameter will correspond to the minimum temperature measured by the NTC
probe (the minimum and maximum temperature values measured by the NTC
probe are specied in a window that is only visible if the "NTC" option is chosen)
— Used to dene the set-point (for heating mode) to be assigned to the maxi-
mum signal read on input U10. If voltage (0-10V) or current (4-20mA) signals
are selected as the value, the maximum set-point specied in this parameter
will correspond to the maximum signal value set on the "General setting of the
U10 multi-purpose input" page of this menu; if the value is "NTC signal", the
parameter will correspond to the minimum temperature measured by the NTC
probe (the minimum and maximum temperature values measured by the NTC
probe are specied in a window that is only visible if the "NTC" option is chosen)
14.4 SETTING FOR NTC SIGNAL TYPE
— Used to set the temperature value measured by the NTC probe which should be
assigned to the minimum signal read on input U10
— Used to set the temperature value measured by the NTC probe which should be
assigned to the maximum signal read on input U10
