151
Installation
GPIB Interface
Connector

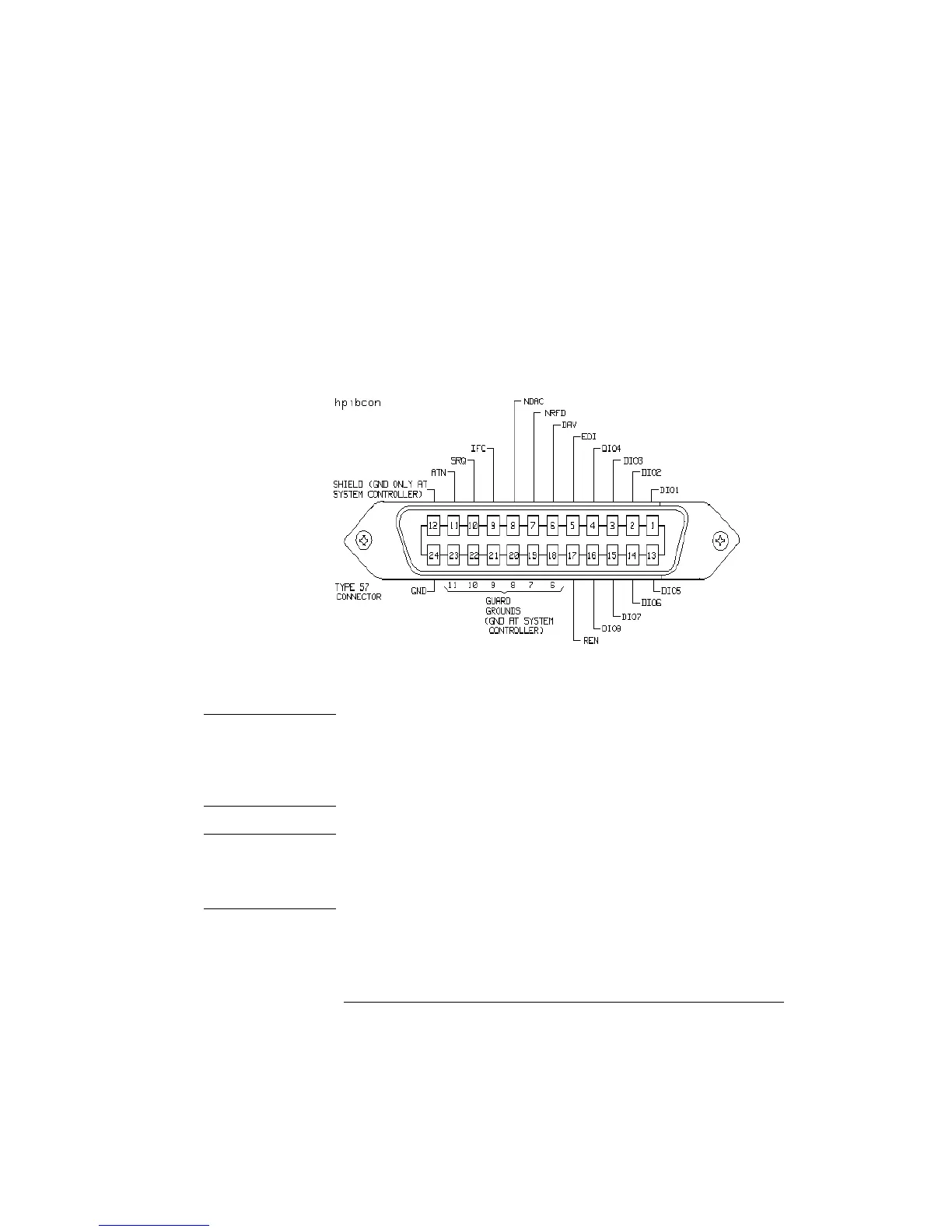

The following figure shows the connector and pin assignments.
Connector Part Number: 1251-0293
Figure A-6 GPIB Connector
CAUTION Agilent Technologies products delivered now are equipped with
connectors having ISO metric- threaded lock screws and stud mounts
(ISO M3.5
×0.6) that are black in color. Earlier connectors may have
lock screws and stud mounts with imperial-threaded lock screws and
stud mounts (6-32 UNC) that have a shiny nickel finish.
CAUTION It is recommended that you do not stack more than three connectors,
one on top of the other.
Hand-tighten the connector lock screws. Do not use a screwdriver.
