Quick Start

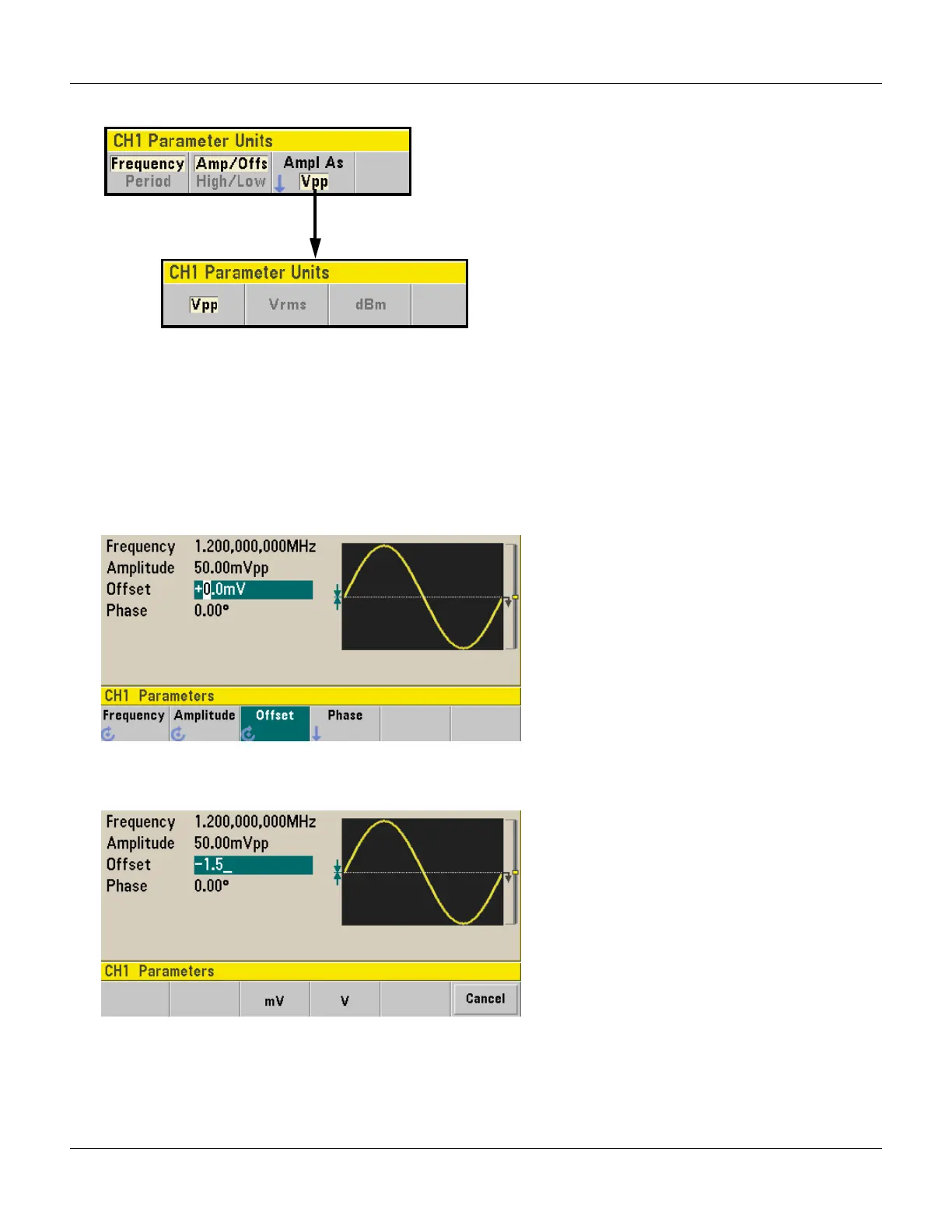

Set DC Offset Voltage
At power-on, the DC offset is 0 V. The following steps change the offset to –1.5 VDC.
1. Press the Parameters key, followed by Offset.
The displayed offset voltage is either the power-on value or the offset previously selected. When you change func-
tions, the same offset is used if the present value is valid for the new function.
2. Enter the desired offset.
In this, case we will use the numeric keypad to enter –1.5.
3. Select the desired units.
Press the softkey for the desired units. When you select the units, the instrument outputs the waveform with the
Agilent 33500 Series Operating and Service Guide 21
