186 Chapter 7
Custom Real Time I/Q Baseband
Working with Data Patterns
Navigating the Bit Values of an Existing Data Pattern User File
1. Press
Goto > 4 > C > Enter.

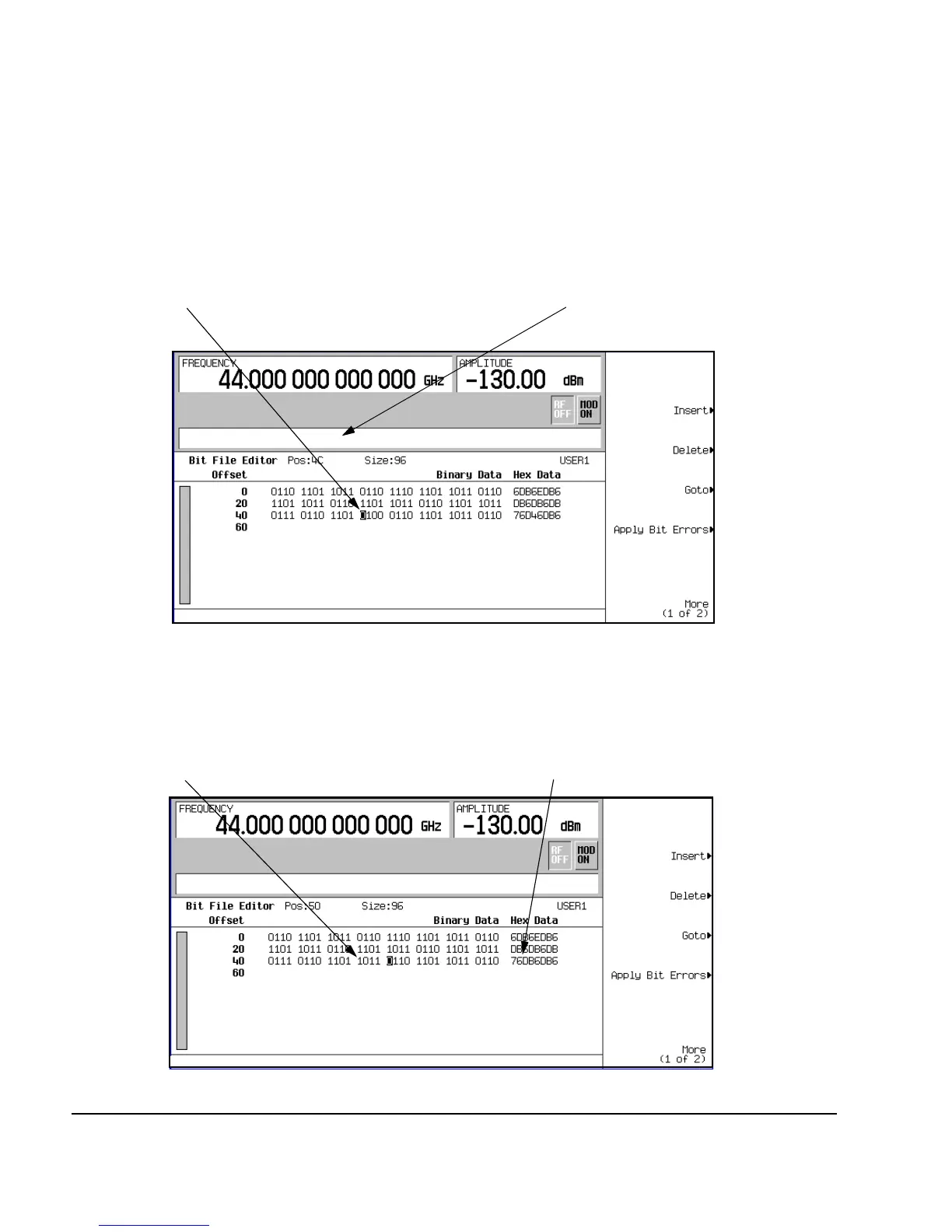

This moves the cursor to bit position 4C, of the table, as shown in the following figure.
Inverting the Bit Values of an Existing Data Pattern User File
1. On the keypad, press
1011.
This inverts the bit values that are positioned 4C through 4F. Notice that hex data in this row has
now changed to 76DB6DB6, as shown in the following figure.
Cursor moves to new position
Position indicator changes
Bits 4C through 4F inverted
Hex Data changed
