20 Chapter 1
Signal Generator Overview
Rear Panel
Rear Panel
This section describes each item on the PSG rear panel. Four consecutive drawings show the
standard and Option 1EM rear panels for the E8267D, E8257D, and the E8663D. (Option 1EM moves
all front panel connectors to the real panel.)

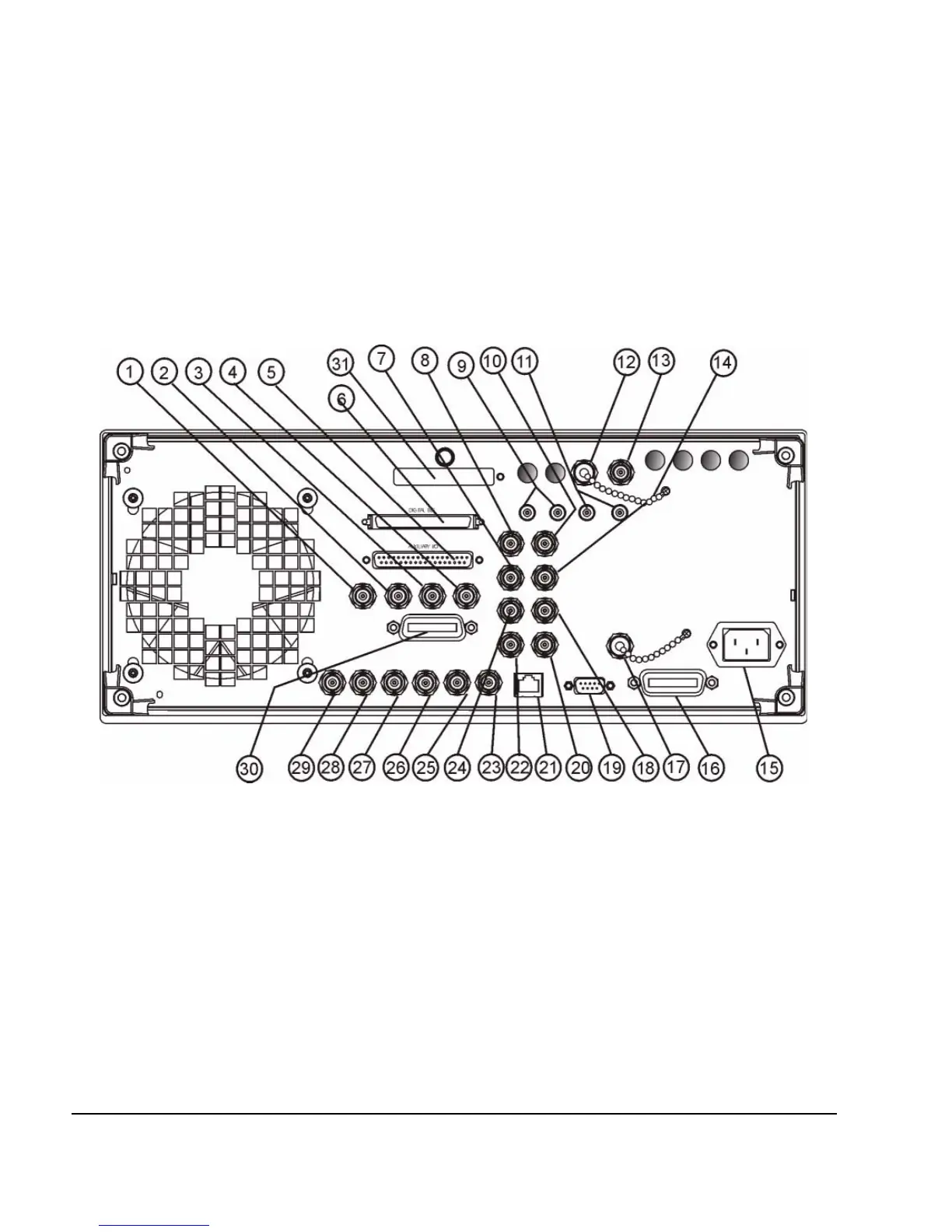

Figure 1-3 Standard E8267D Rear Panel
1. EVENT 1 11. WIDEBAND Q INPUTS 21. LAN
2. EVENT 2 12. COH CARRIER (Serial Prefixes
>=US4646/MY4646)
22. 10 MHz OUT
3. PATTERN TRIG IN 13. 1 GHz REF OUT (Serial Prefixes
>=US4646/MY4646)
23. STOP SWEEP IN/OUT
4. BURST GATE IN 14. Q–bar OUT 24. BASEBAND GEN CLK IN
5. AUXILIARY I/O 15. AC Power Receptacle 25. Z–AXIS BLANK/MKRS
6. DIGITAL BUS 16. GPIB 26. SWEEP OUT
7. Q OUT 17. 10 MHz EFC 27. TRIGGER OUT
8. I OUT 18. ALC HOLD (Serial Prefixes
>=US4722/MY4722)
28. TRIGGER IN
9. WIDEBAND I INPUTS 19. AUXILIARY INTERFACE 29. SOURCE SETTLED
10. I–bar OUT 20. 10 MHz IN 30. SOURCE MODULE INTERFACE
44. Flash Drive (Serial Prefixes
>=US4829/SG4829/MY4829 (E8267D)
and >=US4928/SG4928/MY4928
(E8257D))
