38 Chapter 2
Basic Operation
Using Table Editors
Using Table Editors
Table editors simplify configuration tasks, such as creating a list sweep. This section provides
information to familiarize you with basic table editor functionality using the List Mode Values table
editor as an example.
Press
Preset > Sweep/List > Configure List Sweep.
The signal generator displays the List Mode Values table editor, as shown below.

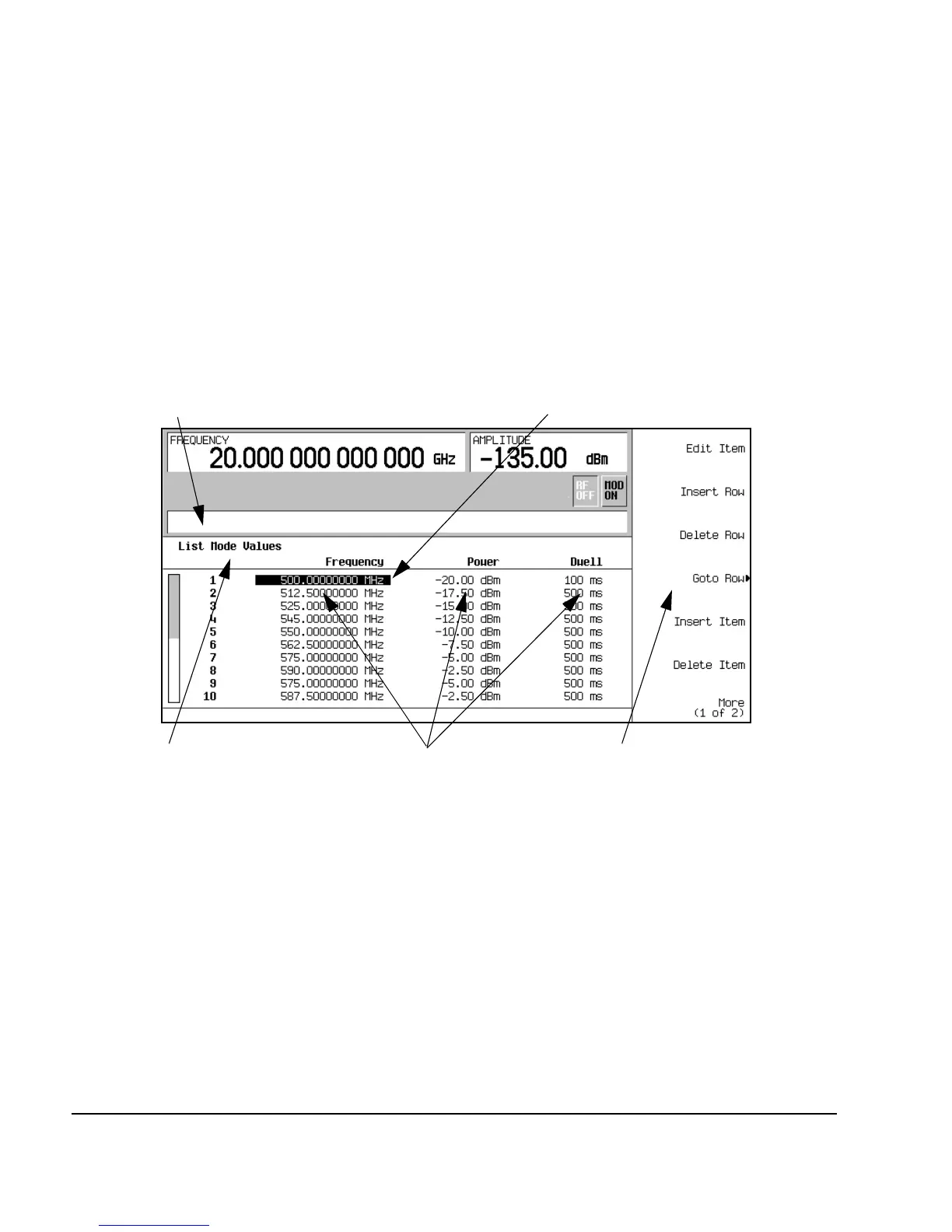

Figure 2-1
Active Function Area displays the active table item while its value is edited
Cursor an inverse video identifier used to highlight specific table items
for selection and editing
Table Softkeys select table items, preset table values, and modify table
structures
Table Items values arranged in numbered rows and titled columns (The
columns are also known as data fields. For example, the
column below the Frequency title is known as the Frequency
data field).
Cursor
Table Softkeys
Table Name
Table Items
Active Function Area
To Next Page
