OmniSwitch 6900 Chassis Chassis and Power Supplies
page 3-2 OmniSwitch 6900 Hardware Users Guide June 2020

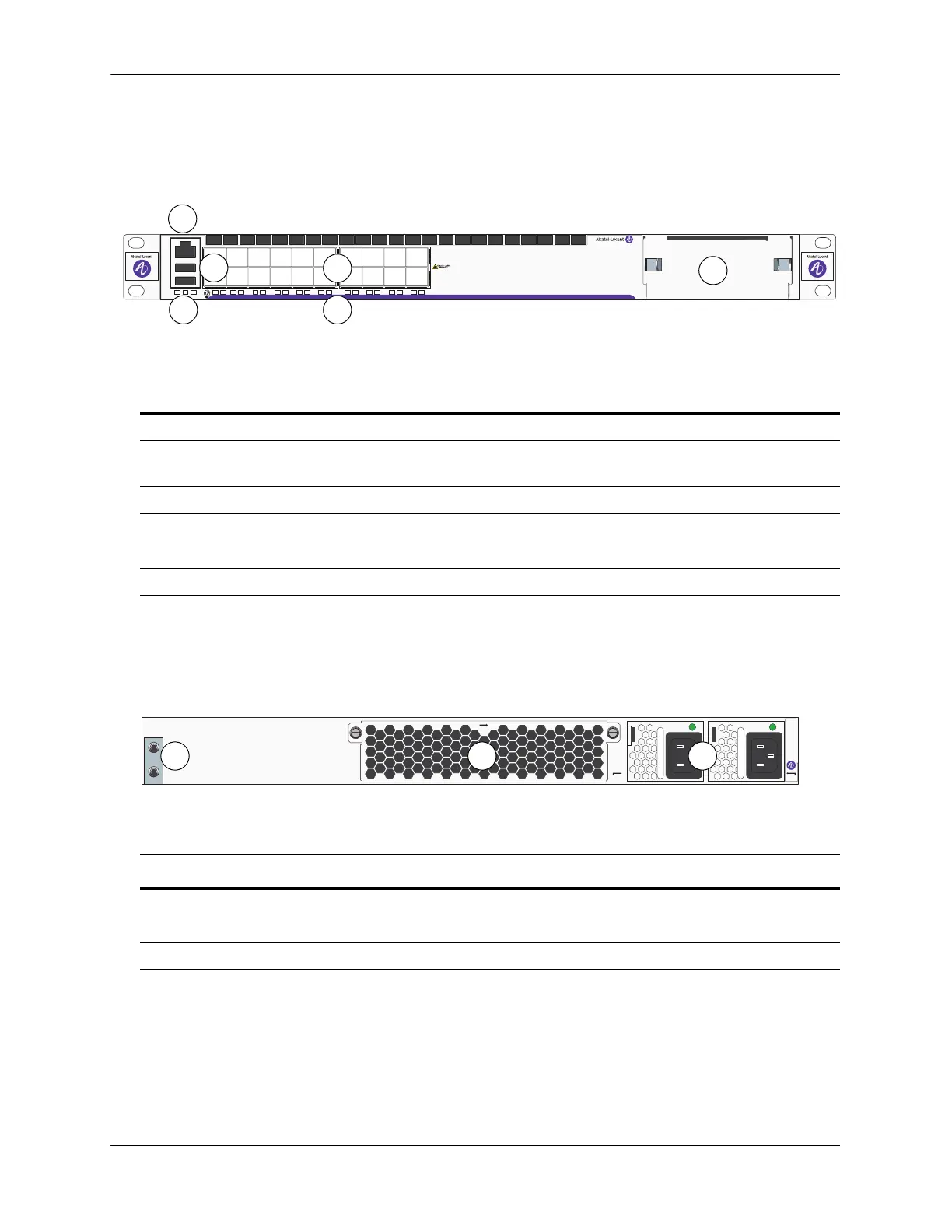

OmniSwitch 6900 Chassis
OS6900-X20 Front Panel
OS6900-X20 Rear Panel
Item Description
A
Ethernet Management Port (EMP)
B
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
C
Console Port
D
Status LEDs
E
20 10G SFP+ Ports
F
Expansion Module Slot
Item Description
A
Chassis Grounding Lug
B
Fan Tray
C
Power Supply Bays (OS6900-BP-F AC power supplies shown)
1
2
3
4
5
6
7
8
19
20
13
14
15
16
17
18
9
10
11
12
OK
PS
EMP
CONSOLE
E
M
P
E
M
P
U
S
B
U
S
B
OS6900-X20
D
E
F
A
C
B
OS6900-X20
PS2PS1
F R
A B C
