Chassis and Power Supplies OmniSwitch 6900 Chassis
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-21

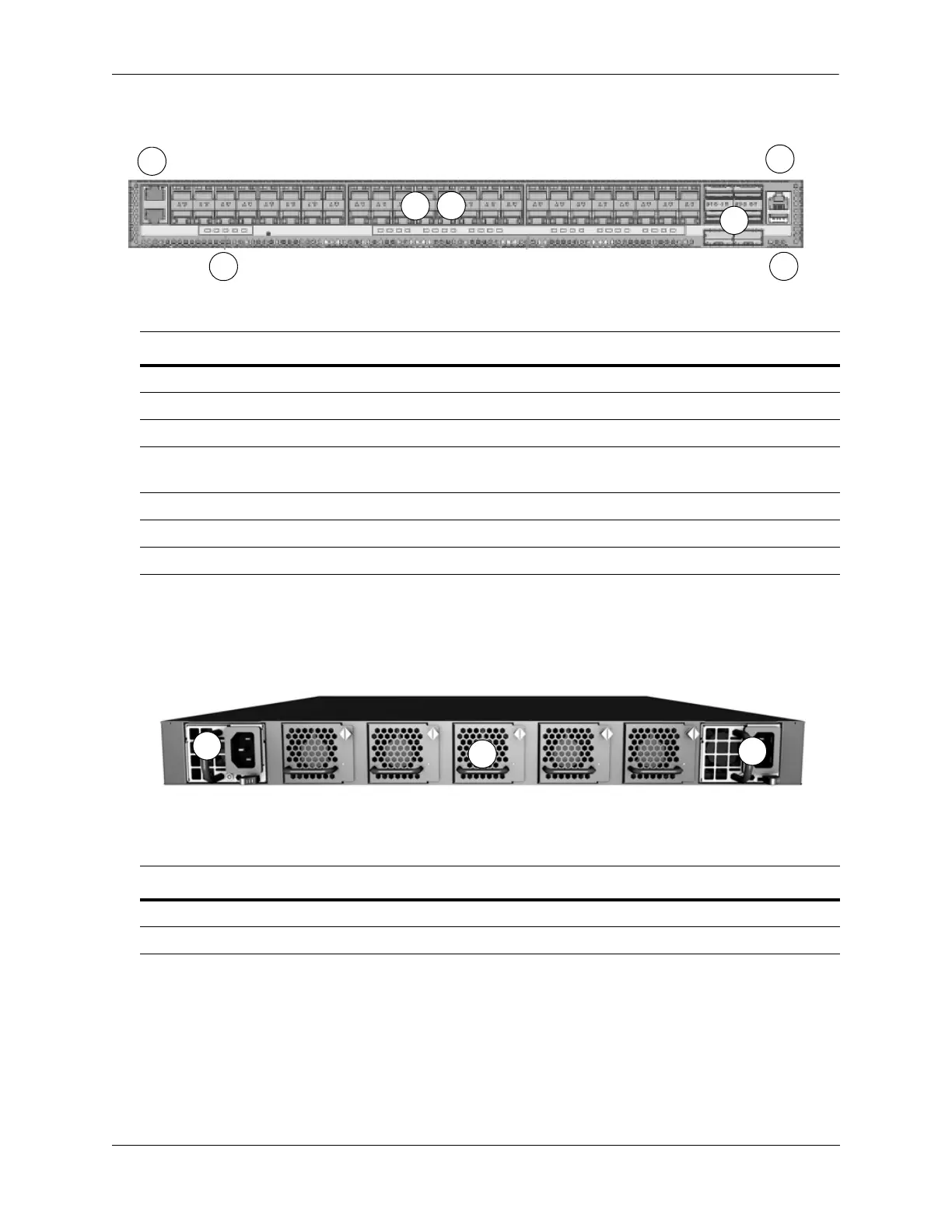

OS6900-X48C6 Front Panel
*Refer to page 3-25 for detailed information on port LED behavior.
OS6900-X48C6 Rear Panel
Item Description
A
10/100/1000 RJ45 Ethernet Management Port (EMP)
B
System Status LEDs*
C
Port Status LEDs*
D
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
E
Console Port
F
1G/10G SFP+ ports (Ports 1- 48)
G
QSFP28 ports (Ports 49-54 - 40G/100G)
Item Description
A
Power Supply Bays
B
Fan Trays
