Chassis and Power Supplies Power Supplies
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-51
OS6900-V72/C32 DC Power Supply

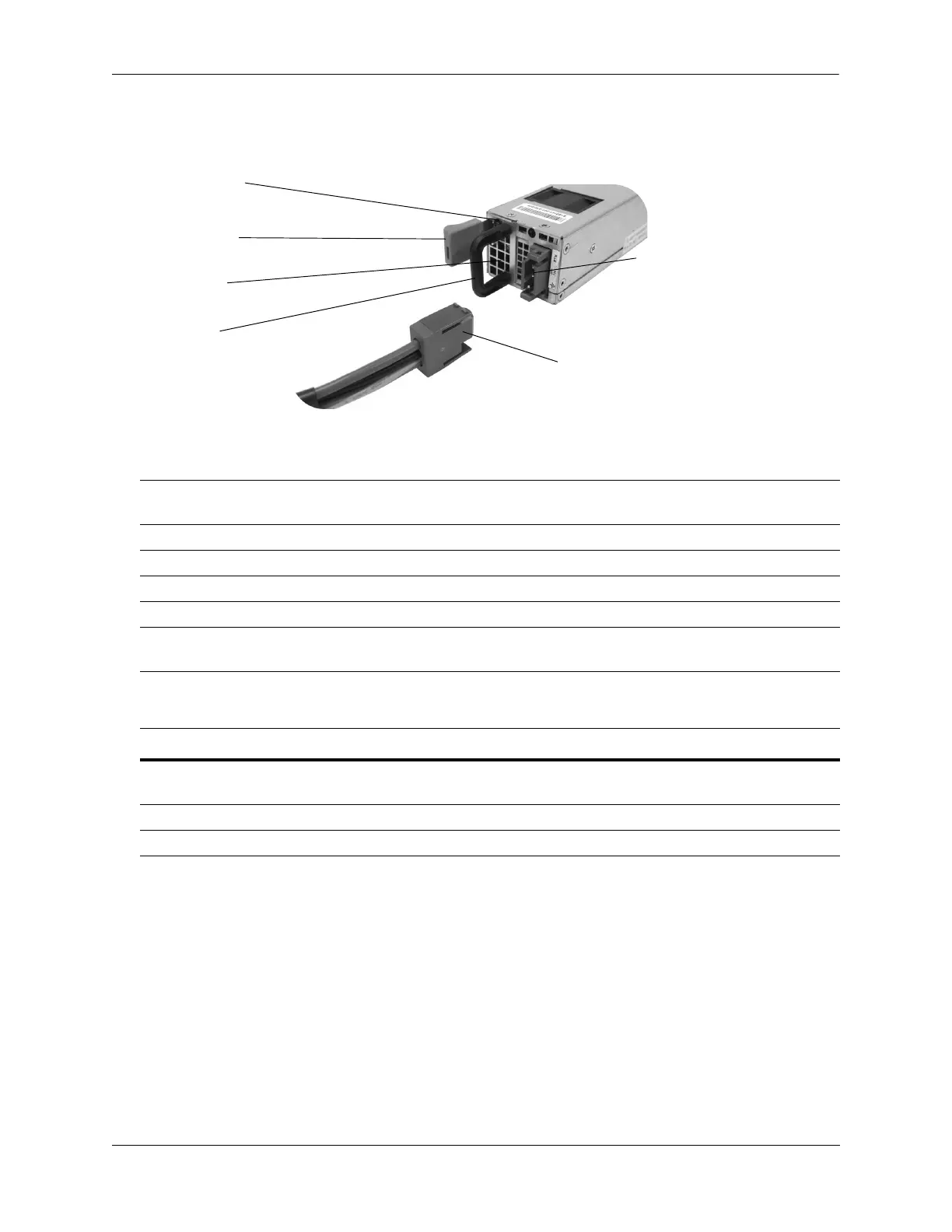

DC Power Supply Front Panel
DC Power Supply LED States
Model OS6900V-PS-D-F, Front-to-Rear
OS6900V-PS-D-R, Rear-to-Front
Product Compatibility OS6900-V72, OS6900-C32
Power Rating 48 VDC, 650 Watts
DC Input 36-72 VDC, 25-11A
DC Output 5 VDC @ 4 A, 12 VDC @ 52.9 A
Airflow This power supply is available in either a front-to-rear or
rear-to-front model.
LED State Description
Solid Green The power supply is operating normally and providing power to the
chassis
Solid Red Power supply failure
Off No DC power.
Status LED
DC Connector
Handle
Air Vent
Lock Tab
DC Power Cord
