Chassis and Power Supplies Plug-In Modules
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-43
Installing Plug-In Modules
Note. When installing plug-in modules, the transceivers must not be installed. Otherwise, the transceivers
will interfere with the module’s lock lever.

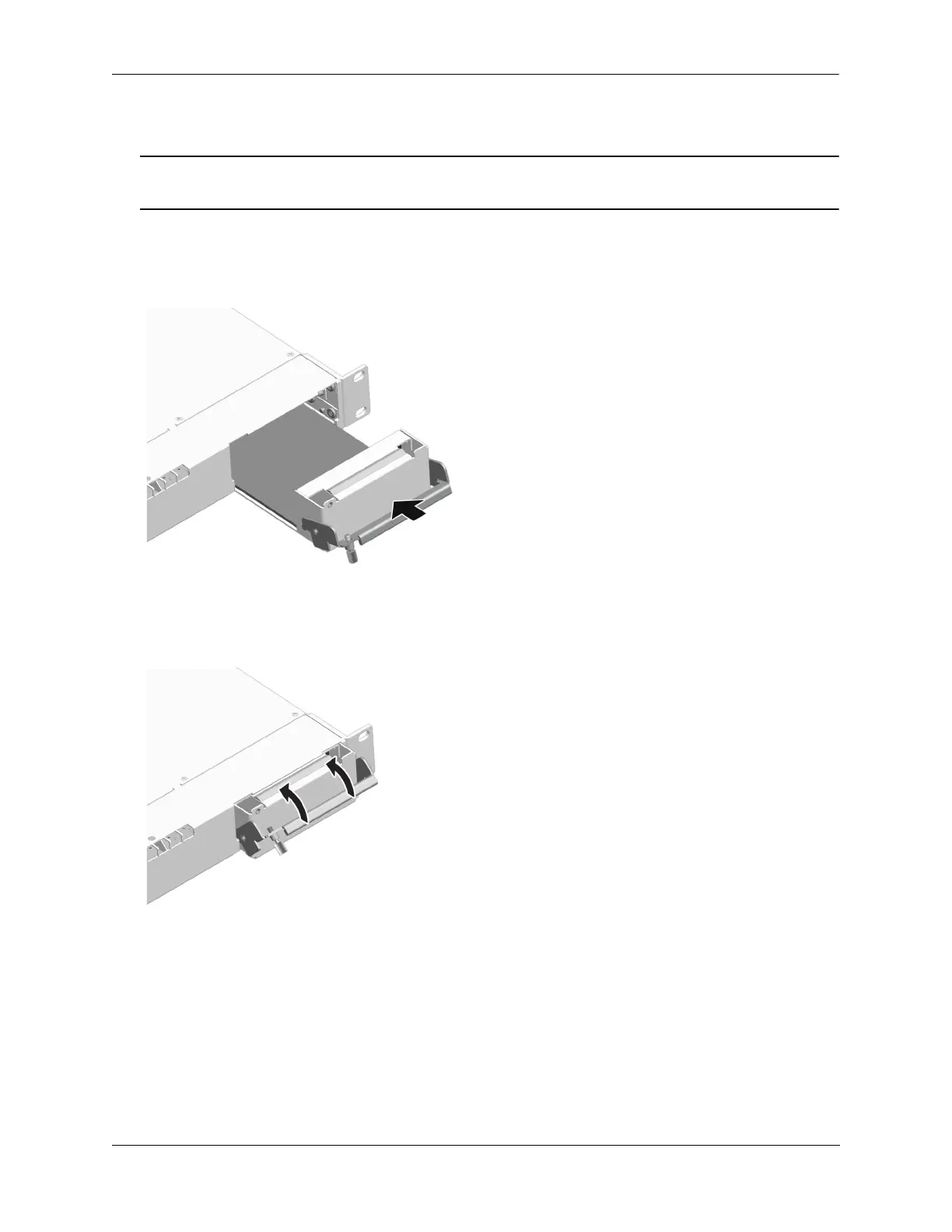

1 With the lock lever in the open position, insert the module into the chassis card guides and slide the
module straight back.
2 When the bottom portion of the lever meets the chassis, be sure that the catches grab the chassis sheet
metal, then push the lever up and back as shown. This will fully seat the module in the chassis backplane.
