OmniSwitch 6900 Chassis Chassis and Power Supplies
page 3-6 OmniSwitch 6900 Hardware Users Guide June 2020

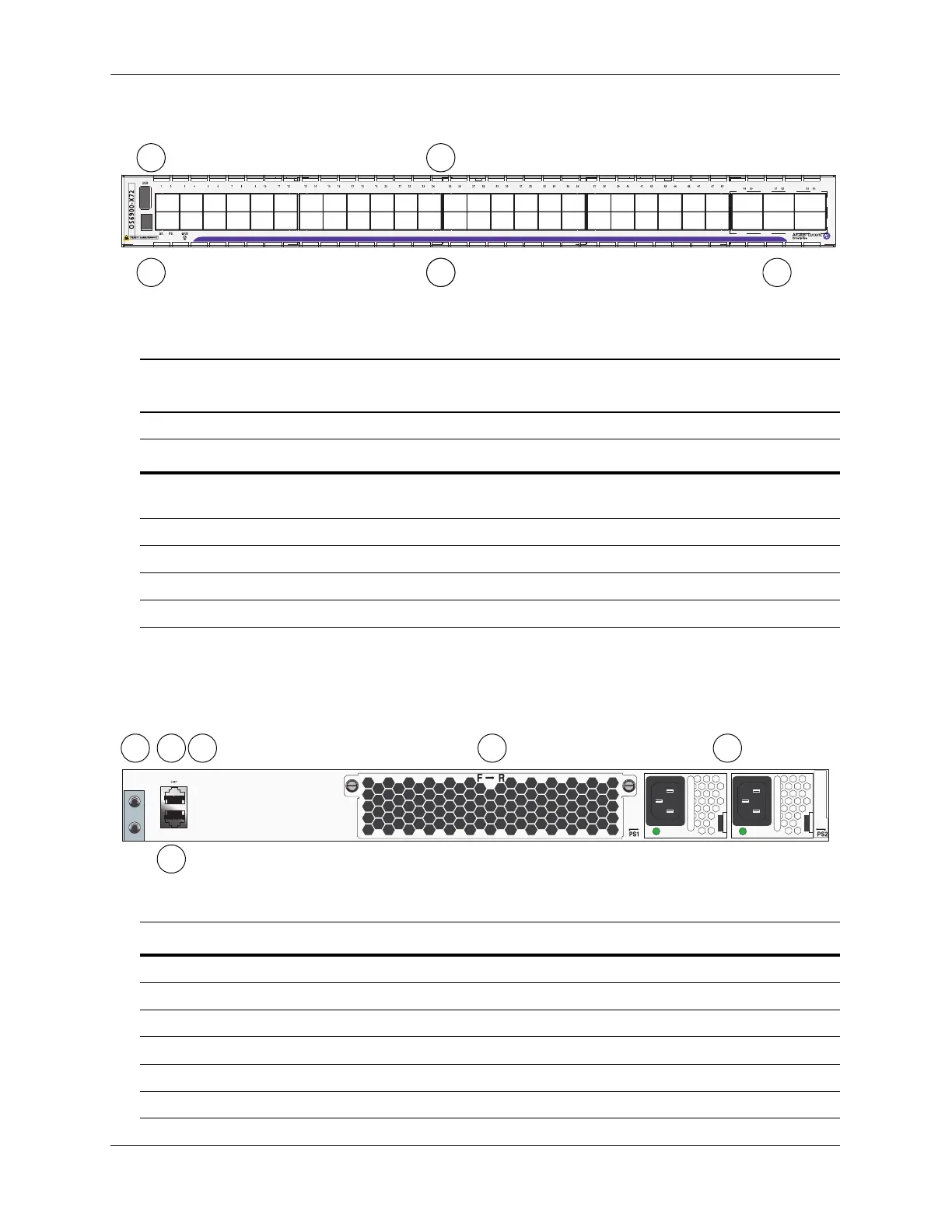

OS6900-X72 Front Panel
Note. For OS6900-X72 switches, the console and Ethernet Management Port (EMP) are located on the
rear panel. Refer to the rear panel diagram and descriptions below for more information.
*Refer to page 3-26 for detailed information on port LED behavior for OS6900-X72 switches.
OS6900-X72 Rear Panel
Item Description
A
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
B
Port Status LEDs*
C
Chassis/System Status LEDs
D
1/10G SFP+ ports 1 through 48
E
QSFP+ ports 49 through 54: providing 40G or optional 4X10G splitter cable support
Item Description
A
Chassis Grounding Lug
B
Ethernet Management Port (EMP) Status LED
C
RJ-45 Ethernet Management Port (EMP)
D
RJ-45 Console Management Port
E
Fan Tray (Front-to-Rear Shown)
F
Power Supply Bays
F E
Ports 1 - 48
1/10G SFP+
Ports 49 - 54
40G or 4X10G QSFP+
C
A
D
B
A B E FC
D
