Chassis and Power Supplies Pinouts
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-63
Pinouts
OmniSwitch 6900 RS-232 console ports use either an RJ-45 connector or a USB connector. (Refer to
diagrams below.) Three signals are used: Transmit Data (TXD), Receive Data (RXD) and Signal
Ground (GND).
Note. No hardware handshaking (RTS, CTS) is used. Instead, software flow control (XON, XOFF) is
required, where XON is equal to ready and XOFF is equal to not ready.

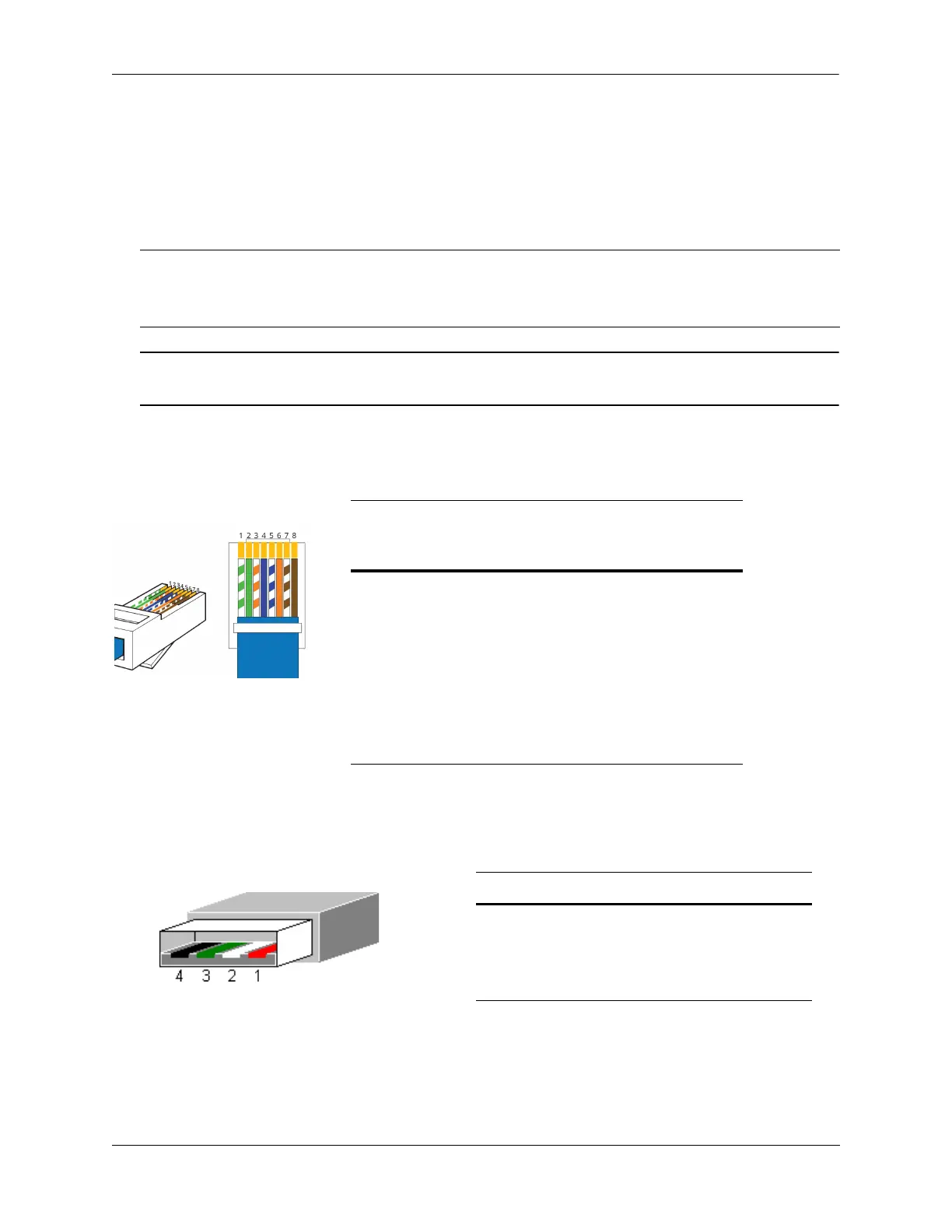

RJ45 Console Port Connector Pinout
USB Console Port Connector (All Other Models)
TXD The data sent out from the console port to the receiving device.
RXD The data received by the console port from the sending device.
GND The common return for all signals on the interface.
OS6900 Console Pin
OS6900-V72/
C32/T48C6/
X48C6
Not Connected 1 RTS
Not Connected 2 Not Connected
RXD 3 TXD
GND 4 GND
GND 5 GND
TXD 6 RXD
Not Connected 7 Not Connected
Not Connected 8 CTS
RS-232 Signal USB Type A Pin
Not Connected 1
RXD 2
TXD 3
GND 4
