Power Supplies Chassis and Power Supplies
page 3-48 OmniSwitch 6900 Hardware Users Guide June 2020
OS6900-V72/C32 AC Power Supply

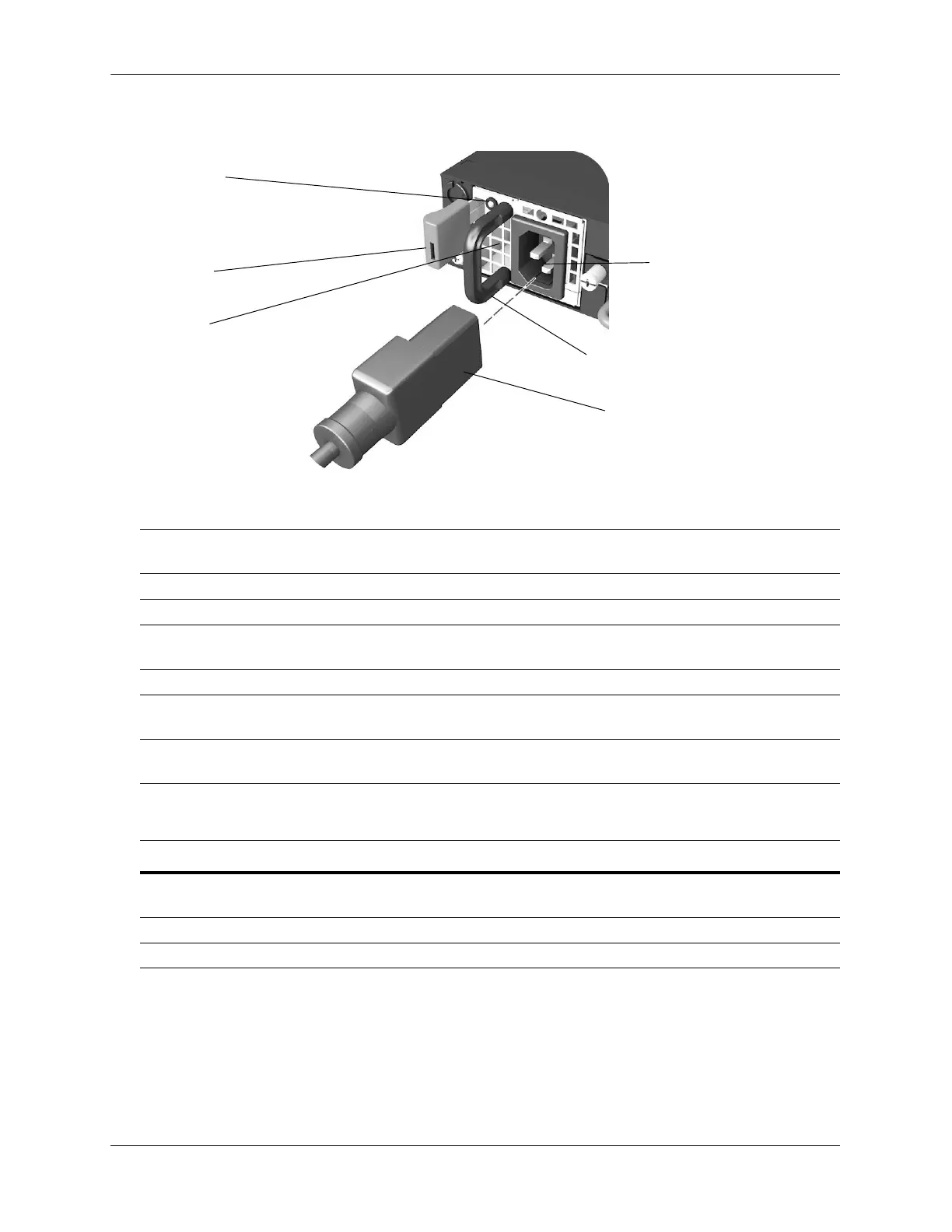

AC Power Supply Front Panel
AC Power Supply LED States
Model OS6900V-PS-A-F, Front-to-Rear
OS6900V-PS-A-R, Rear-to-Front
Product Compatibility OS6900-V72, OS6900-C32
Total DC Output 650 Watts
AC Input 100–240VAC, 50-60Hz, 10–5A or 8.2-3.5A or 7.8-
3.8A
DC Output 5VSB @ 4A, 12VDC @ 52.9A
Airflow This power supply is available in either a front-to-rear or
rear-to-front model.
Notes: Do not mix OS6900-V72/C32 power supplies withOS6900-
T48C6/X48C6 power supplies.
LED State Description
Solid Green The power supply is operating normally and providing power to the
chassis
Solid Red Power supply failure
Off No AC power.
Status LED
AC Connector
Handle
Air Vent
Lock Tab
AC Power Cord
