18 Rockwell Automation Publication 8720MC-RM001K-EN-P - September 2018
Chapter 2 Plan and Mount the 8720MC-RPS Installation

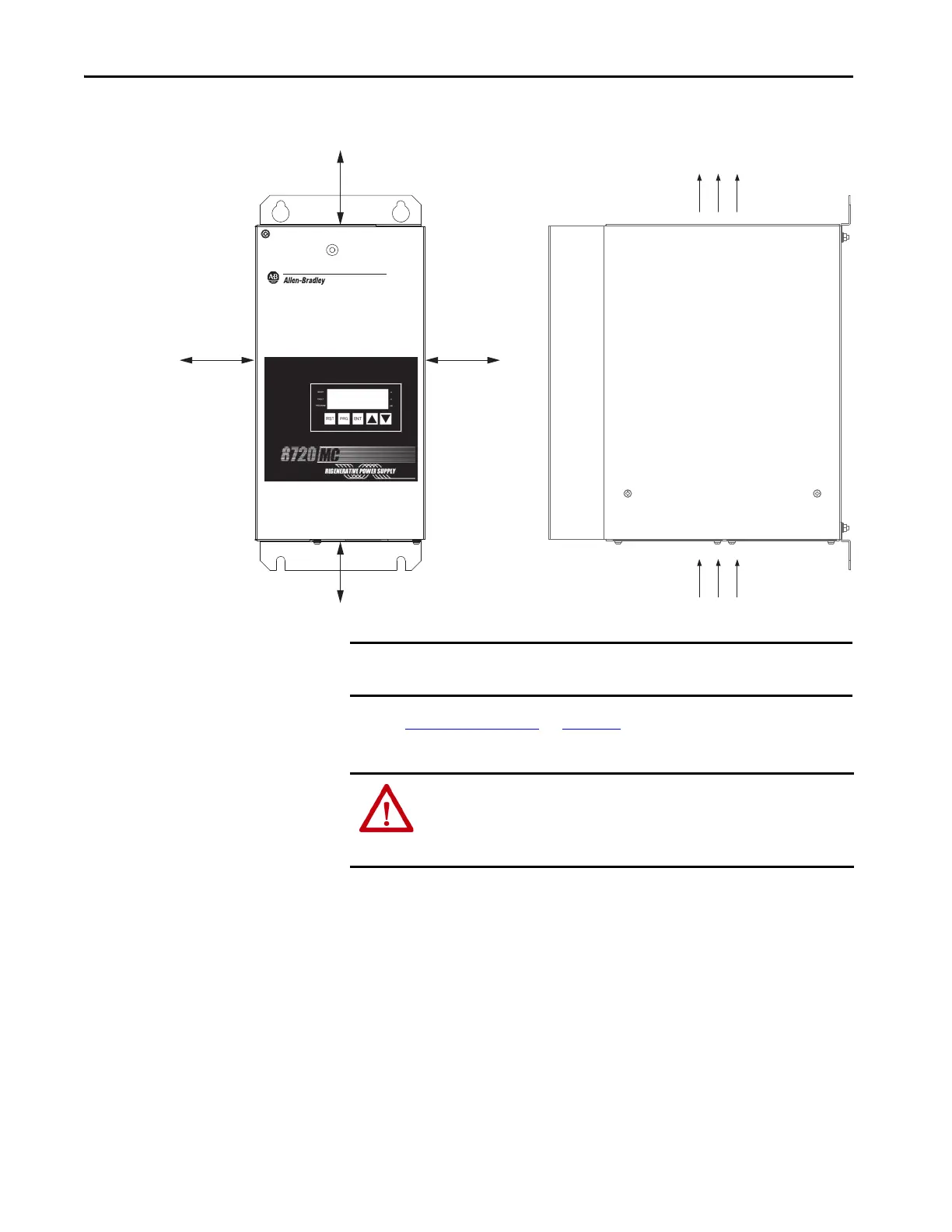

Minimum Clearance Requirements
Refer to Product Dimensions on page 111 for 8720MC-RPS mounting
dimensions.
㻼㻻㼃㻱㻾
Air Flow
Air Flow
150 mm
(5.9 in.)
150 mm
(5.9 in.)
150 mm
(5.9 in.)
150 mm
(5.9 in.)
8720MC Regenerative Power Supply
(8720MC-RPS065 unit is shown)
IMPORTANT Mount the 8720MC-RPS unit in an upright position as shown. Do not mount
the module on its side.
ATTENTION: The temperature inside the cabinet must be kept below 50 °C
(122 °F). Because the 8720MC-RPS unit dissipates large amounts of heat,
exercise special caution for exhausting air. Take into account heat dissipation
for all units when sizing the enclosure and providing ventilation.
