Figure 44 - Monitor Mode Example
Program Mode
In Program mode you can display and modify parameter values, and display the
error log. The following can be displayed in program mode:
•Types of parameters
• Parameter numbers
• Parameter values
• Selection of error log
• Error log number
• Error codes
In Program mode, the PROGRAM status indicator is ON, indicating that the
operation panel is in Program mode.

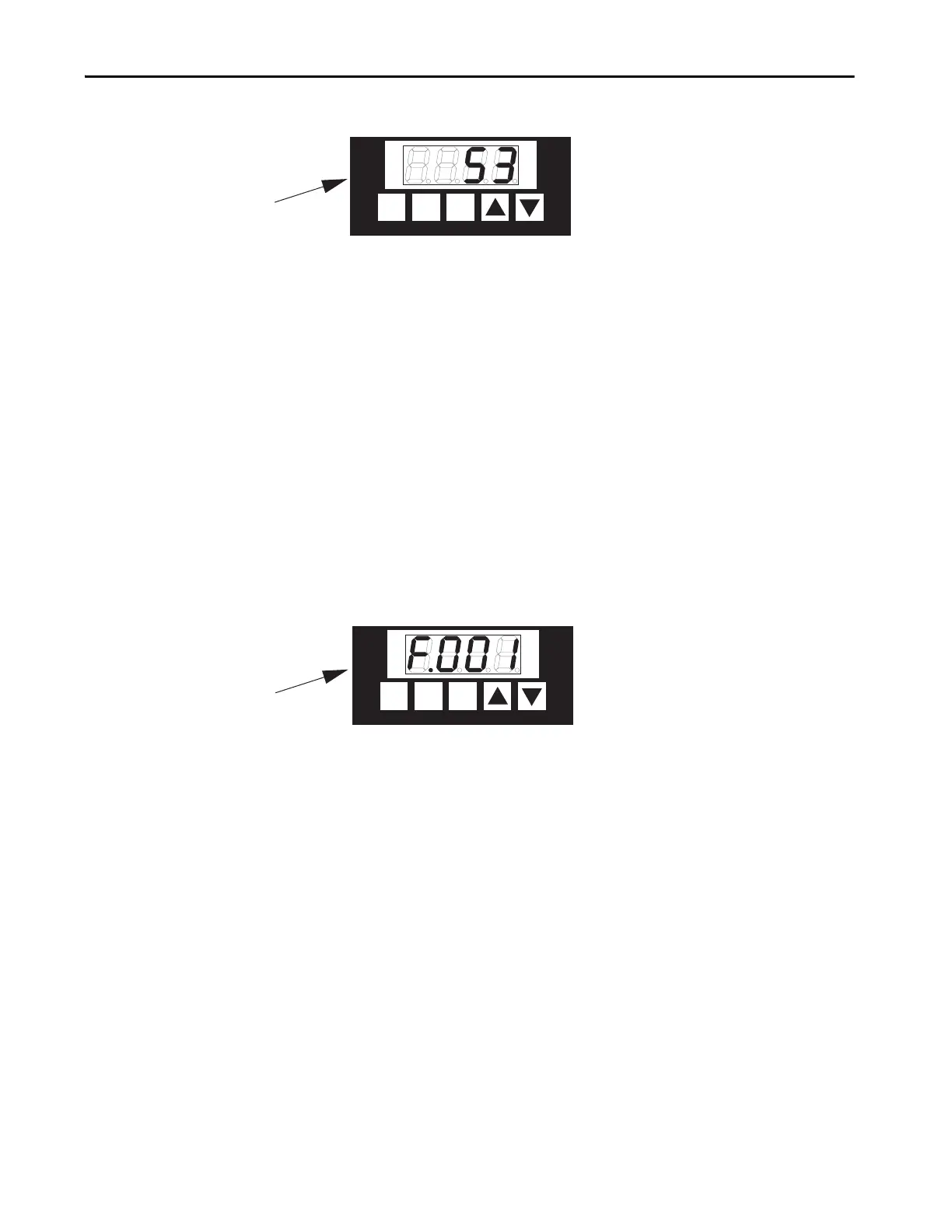

Figure 45 - Program Mode Example
RST
PRG
ENT
READYREADY
FAULTFAULT
PROGRAMPROGRAM kWkW
V
A
In Monitor mode, the PROGRAM
status indictor is OFF.
The A, V, or kW status indicator is ON
depending on the selected monitor display.
RST
PRG
ENT
READY
READY
FAULT
FAULT
PROGRAM
PROGRAM
kW
kW
V
A
In Program mode, the PROGRAM
status indictor is ON.
