Allen-Bradley 8720MC-RPS065 User Manual

24 Rockwell Automation Publication 8720MC-RM001K-EN-P - September 2018
Chapter 3 Mount the 8720MC-RPS Unit
Mounting Guidelines
Observe the following guidelines when mounting 8720MC-RPS units in
parallel configurations:
• In configurations where one or two follower units are present, mount
the leader unit to the far right of the follower units
• Leader and follower units in the same configuration must be of the same
size and series. You cannot mix units of catalog number
8720MC-RPS065 with 8720MC-RPS190 and you cannot mix units of
series # with series B
• Mount 8720MC-RPS units according to the specified maximum
distance. This is required so that the connecting cables between
8720MC-RPS units reach from one unit to another

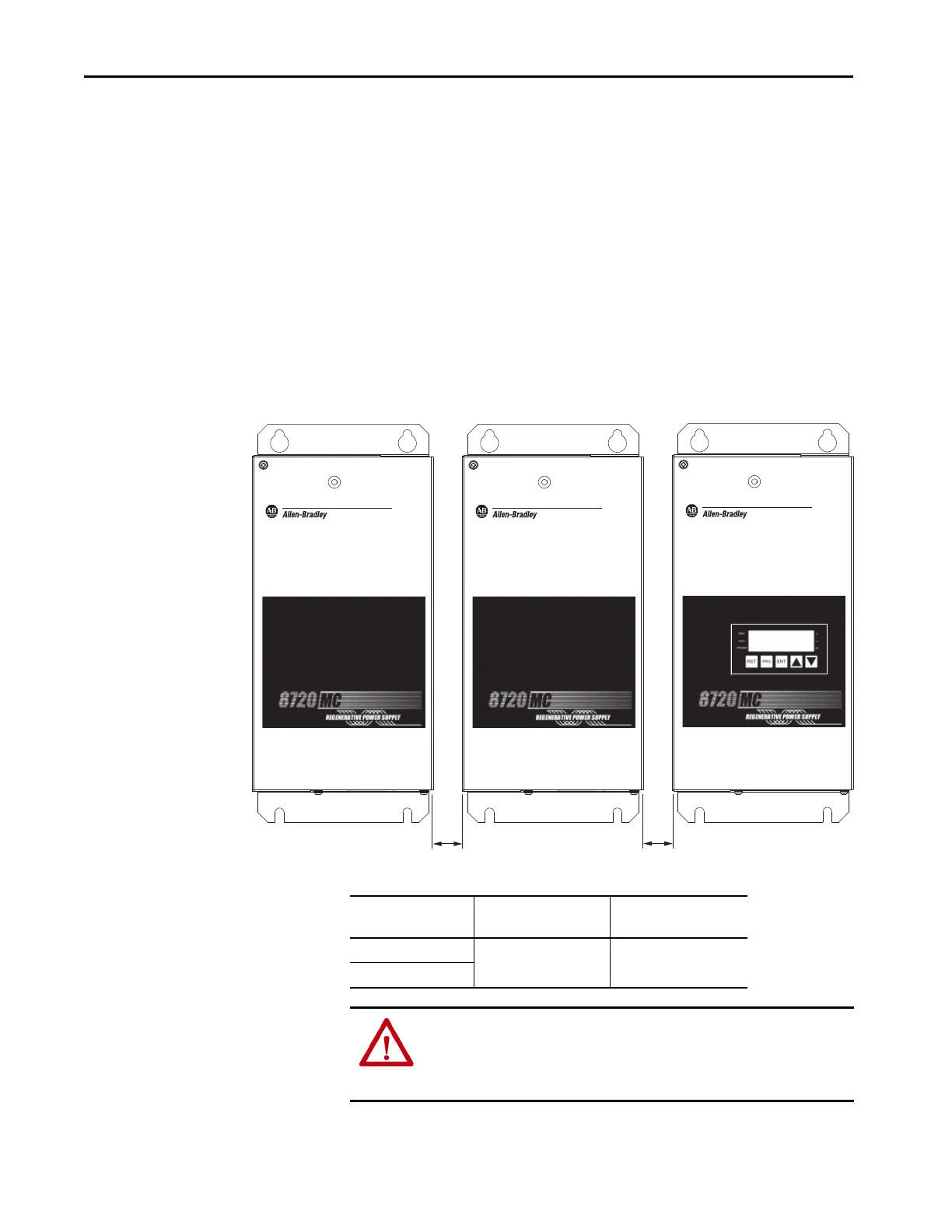

Figure 6 - 8720MC-RPS065 Leader and Follower Units
Table 5 - Maximum Unit Spacing Specifications
㻼㻻㼃㻱㻾 㻼㻻㼃㻱㻾
㻼㻻㼃㻱㻾
Maximum Spacing Maximum Spacing
Leader Unit
8720MC-RPS065BM
Follower Unit
8720MC-RPS065BS
Follower Unit
8720MC-RPS065BS
8720MC-RPS
Cat. No.
8720MC-RPS (series #)
mm (in.)
8720MC-RPS (series B)
mm (in.)
8720MC-RPS065BM
250 (9.8 200 (7.9)
8720MC-RPS065BS
ATTENTION: Leader and follower units in the same configuration must be of
the same size and series. You cannot mix units of catalog number
8720MC-RPS065 with 8720MC-RPS190 and you cannot mix units of series #
with series B. Failure to comply can result in damage to equipment.
