Publication 1763-UM001E-EN-P - June 2015

82 Communication Connections

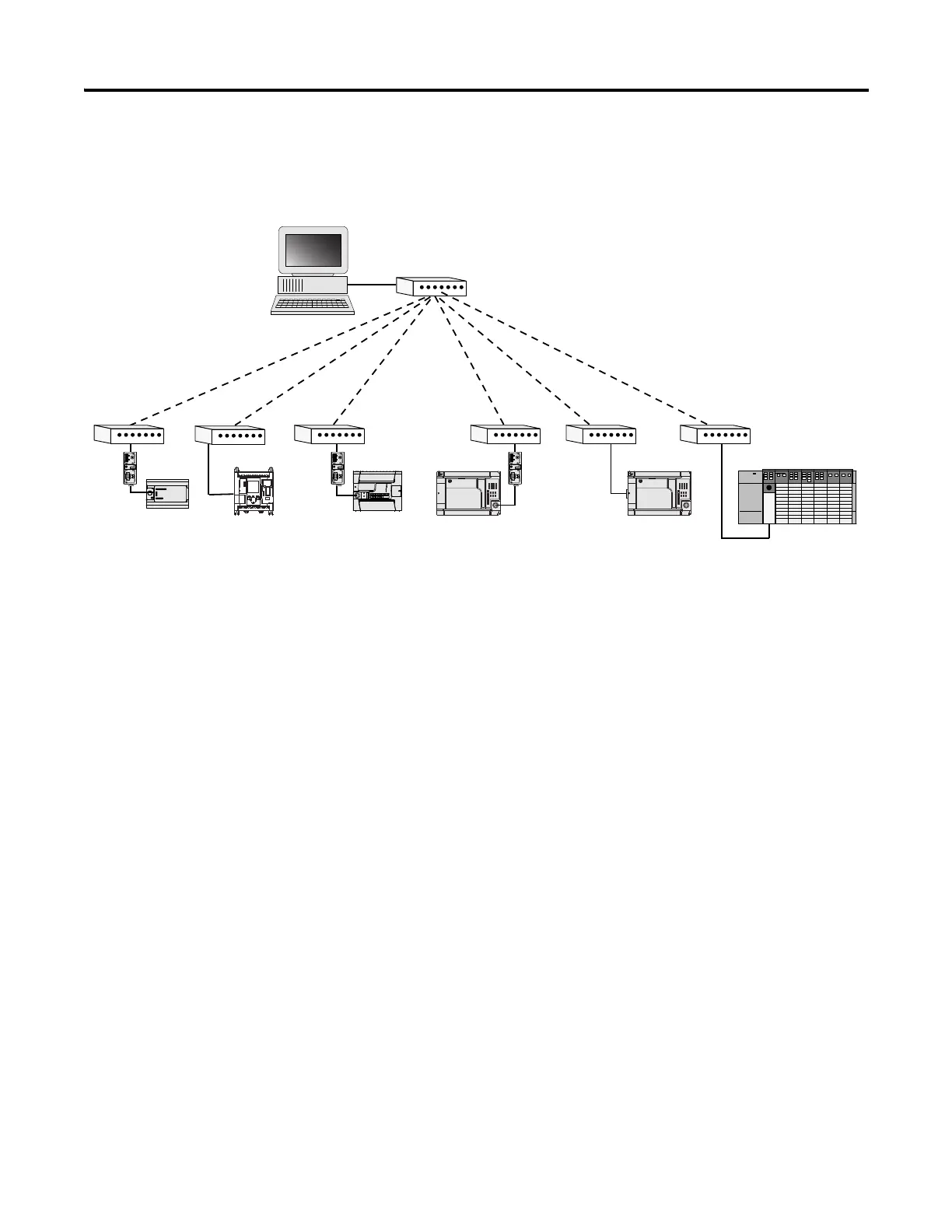

DF1 Half-Duplex Network (Using PC and Modems)

TERM

COM

SHLD

CHS GND

TX PWR

DC SOURCE

CABLE

EXTERNAL

TERM

COM

SHLD

CHS GND

TX PWR

DC SOURCE

CABLE

EXTERNAL

TERM

COM

SHLD

CHS GND

TX PWR

DC SOURCE

CABLE

EXTERNAL

Rockwell Software RSLinx 2.0 (or

higher), SLC 5/03, SLC 5/04,

SLC 5/05, PLC-5, or MicroLogix

1000, 1200, and 1500 processors

configured for DF1Half-Duplex

Master. Rockwell Software RSLinx

2.5 required for MicroLogix 1100.

DF1 Half-Duplex Protocol

MicroLogix 1500 with

1764-LSP or 1764-LRP

Processor (Slave)

SLC 5/03 (Slave)MicroLogix

1000 (Slave)

MicroLogix 1500 with

1764-LRP Processor (Slave)

MicroLogix

1100 (Slave)

Modem

MicroLogix

1200 (Slave)

Default Chapter3
