Allen-Bradley PanelView 2711P-RW1 User Manual

Publication 2711P-UM001A-EN-P
Overview 1-3
Base Configured Unit

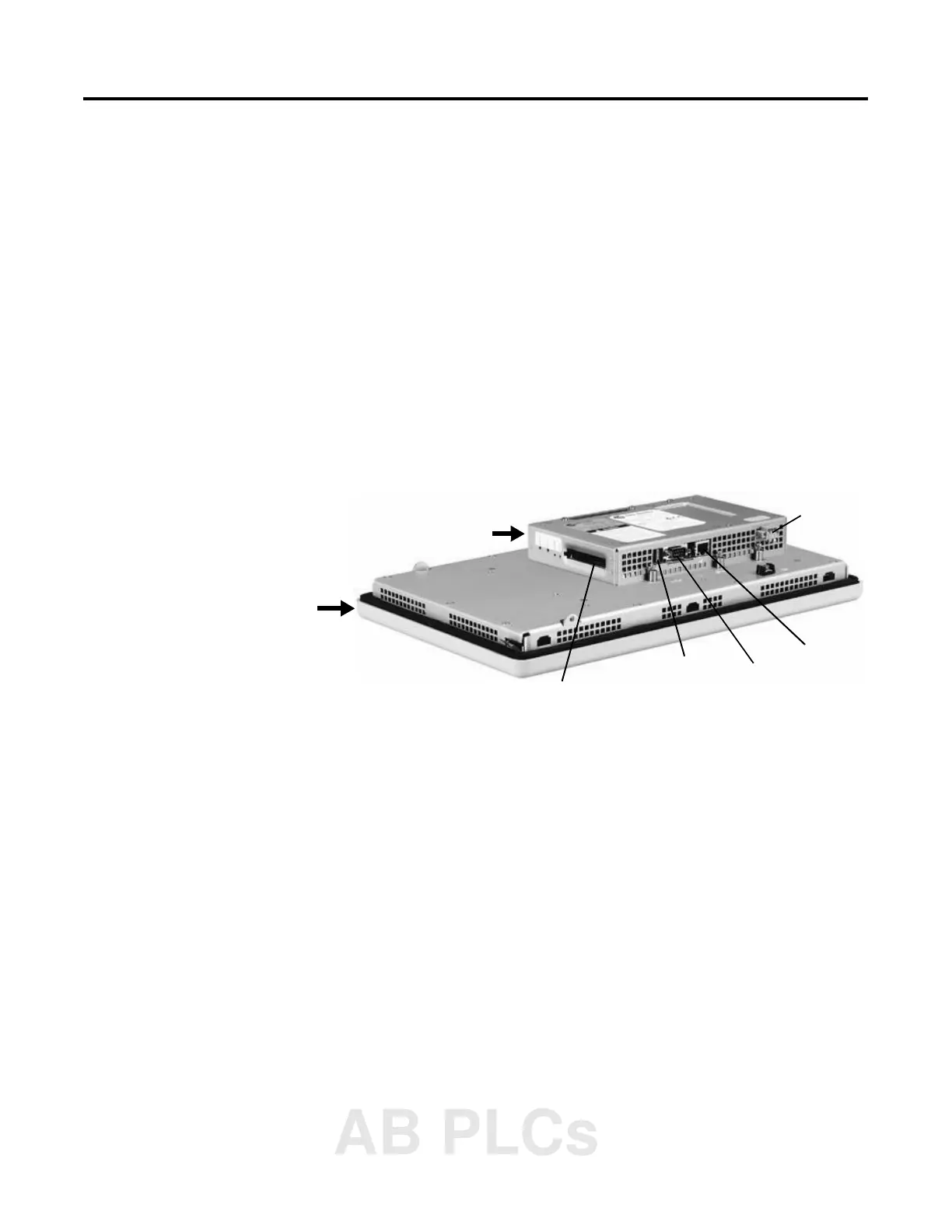

The base configured unit of the PanelView Plus terminal consists of:
• Display Module (700, 1000, 1250, 1500) with Keypad, Touch or
Keypad & Touch Input
• Logic Module
The Logic Module contains:
• 24V dc input (18…32V dc)
• SDRAM and Flash memory (various sizes)
• 10/100BaseT Ethernet Port
• Serial RS-232 Port for file transfers, printing and logic controller
communications
• 2 USB Ports for attaching mouse, keyboard or printer
• Compact Flash Card Slot for Type I/II Compact Flash cards
• Battery-backed real-time clock
DC Input
Ethernet Port
Serial Port
Compact Flash Card Slot
USB Ports
Logic Module
Display Module
AB PLCs
