Publication 2711P-UM001A-EN-P
6-4 Terminal Connections
USB Ports
The PanelView Plus terminal has two USB ports. The Windows CE
operating system currently only supports standard USB keyboard and
mouse devices (that is, HID devices) with native device drivers. It also
supports some USB printers that have Printer Control Language (PCL)
capabilities. A vendor-specific Windows CE driver will be required for
all other USB devices.
The USB device can plug into either one of the two USB ports on the
PanelView Plus terminal. While the USB interface is designed to be
connected and disconnected under power, the Windows CE operating
system will not automatically recognize any changes made under
power.

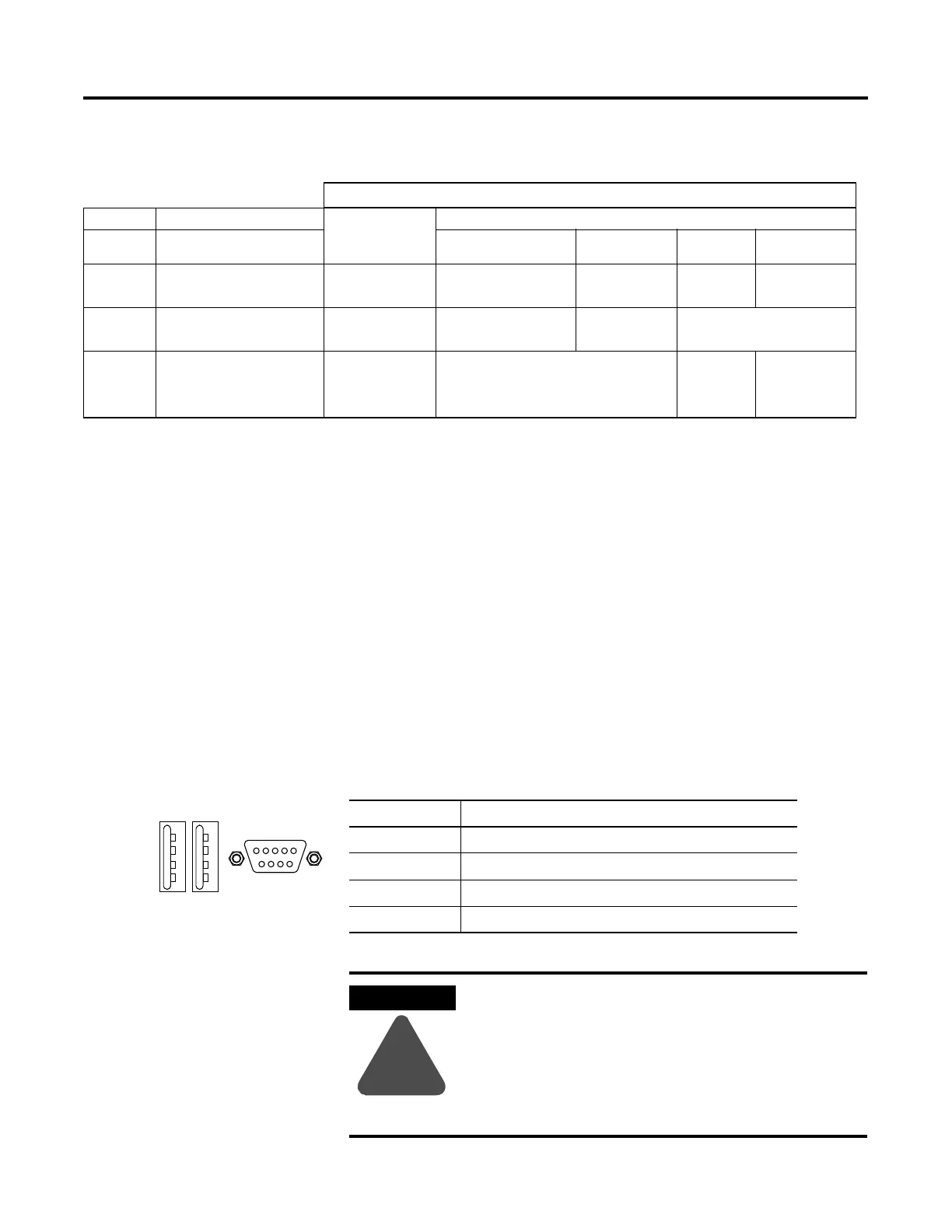

USB Connector Pinout
Cables: PanelView Plus to Communication Adapters
1747-AIC
1761-NET-AIC
Protocol PanelView Plus Comm Port Port 1 (9-pin)
Port 2
8-pin Mini DIN()
Port 3
(DH485)
1761-NETDNI
or 1771-NET-ENI
DF1 (any) RS-232 Comm Port (9-pin)
PanelView Plus 700 -1500
2711P-xxx4xx
N/A
2711-NC13 (16ft/5m)
2711-NC14 (32ft/10m)
2706-NC13 (10ft/3m)
2711-NC21 (16ft/5m)
2711-NC12 (32ft/10m) N/A
2711-NC21 (16ft/5m)
2711-NC12 (32ft/10m)
DH-485 Serial
(any)
RS-232 Comm Port (9-pin)
PanelView Plus 700 - 1500
N/A
2711-NC13 (16ft/5m)
2711-NC14 (32ft/10m)
2706-NC13 (10ft/3m)
2711-NC21 (16ft/5m)
2711-NC12 (32ft/10m) N/A
DH-485
xxx6xx
DH-485 Communication Port
PanelView Plus 700 - 1500
2711P-xxx6xx
1761-CBL-AS03
(10ft/3m)
1761-CBL-AS09
(30ft/9m)
or wired
N/A
DH-485 Cable
N/A
Pin Signal
1 USBVCC
2 USBD-
3 USBD+
4 USB-GND
WARNING
!
If you connect or disconnect the USB cable with
power applied to the PanelView Plus or the serial
device on the other end of the cable, an electrical arc
can occur. This could cause an explosion in
hazardous location installations. Be sure that power
is removed or the area is nonhazardous before
proceeding.
4
3
2
1
4
3
2
1
USB Ports
