Publication 2711P-UM001A-EN-P
Using Configuration Mode 4-15

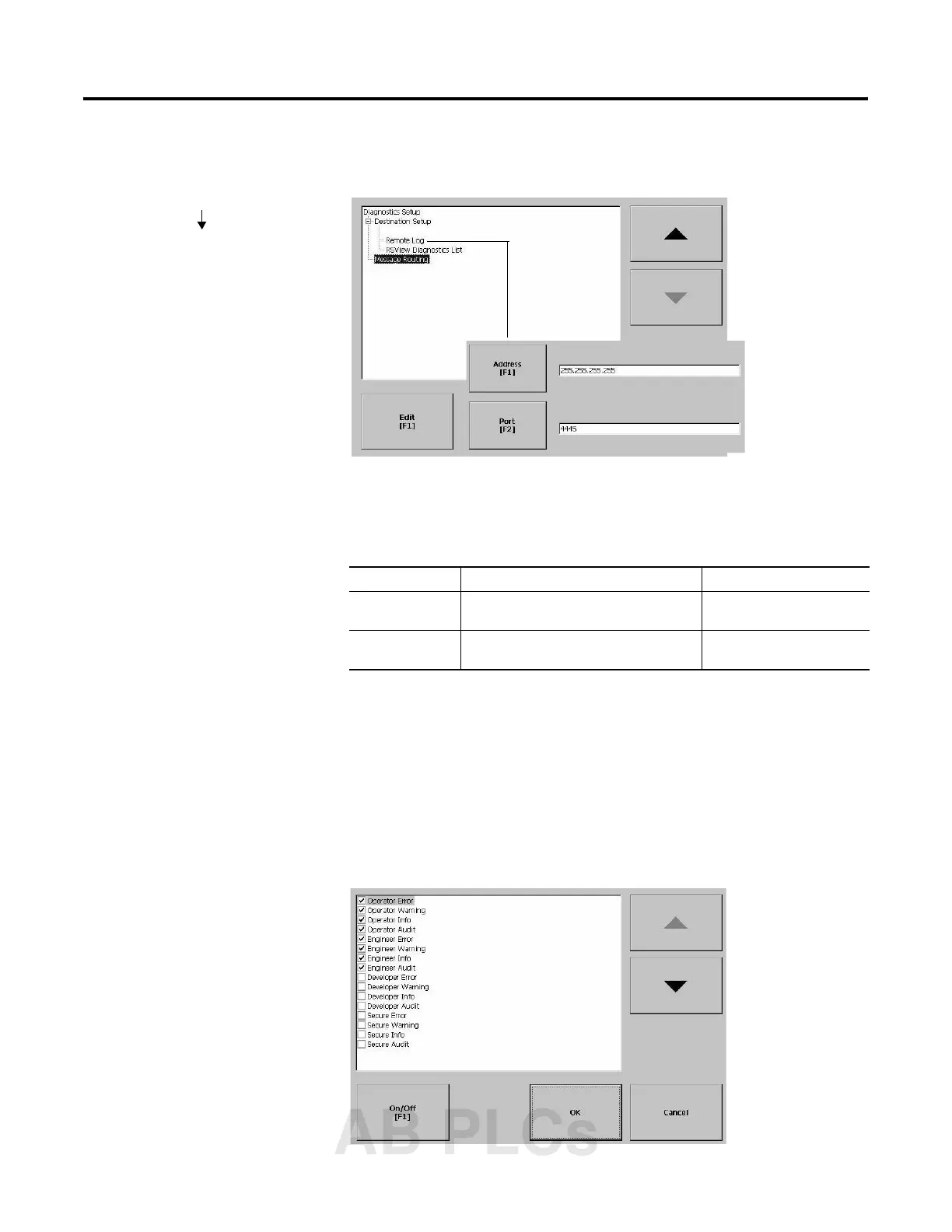

Diagnostic Setup
The Diagnostic Setup screen configures diagnostics for the current
computer. The screen shows a treeview of possible diagnostic nodes.
The Remote Log Destination forwards messages that it receives to a
Windows 2000/XP computer running diagnostics. The location is
determined by the IP address and port number.
Message Routing
The Message Routing screen lets you access the following screens:
• Remote Log
• RSView Diagnostics List
Each one of the above screens shows a list of messages that can be
sent to that destination. The list shows the On/Off status of each
message type. Use the On/Off button to turn a message type on or
off. A message type is enabled if it has a checked box.
To access the Remote
Log Setup or Message
Routing, select the node
and then the Edit button.
Terminal Settings
Diagnostic Setup
Field Description Valid Values
Address Address of the remote Windows 2000/XP
computer.
xxx.xxx.xxx.xxx
Port The port used to communicate with the
remote Windows 2000/XP computer.
4445 (default)
