Using Configuration Mode
Chapter Objectives
This chapter shows how to use the configuration screens of your
PanelView Plus terminal to:
• perform data entry and navigation
• load an ME application
• run an ME application
• modify application settings
• modify terminal settings
Starting Configuration
Mode
When you reset or startup the PanelView Plus, you should
automatically enter Configuration Mode.
If you are unable to enter confguration mode, see page 8-11 in
Chapter 8, Troubleshooting.
To access Configuration Mode from a running application:
• press the Goto Configuration Mode button.
The application stops running but is still loaded.
To activate buttons:
• on keypad terminals, select the
corresponding function key [Fx]
• on touch screen terminals, tap the
button with your finger or stylus.
• if a mouse is attached, make
selections with the mouse.

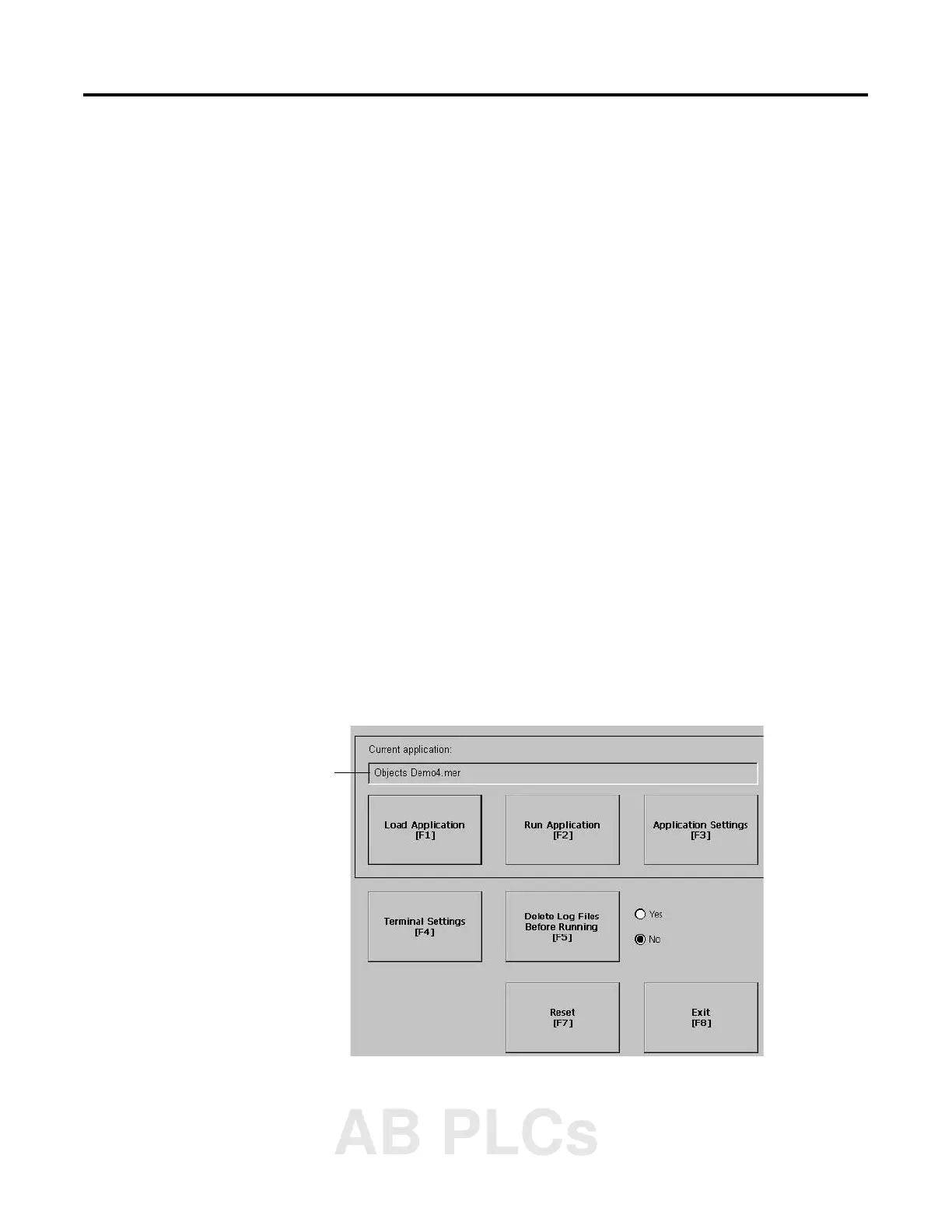

Name of application that is currently loaded.
Only appears if application is loaded.
