Installing and Replacing Components 5-13
Replacing Backlight
This section shows how to replace the backlight for the 700, 1000, and
1250 models. The 1500 does not have a replaceable backlight.
1. Disconnect power from the terminal.
2. Remove Display Module bezel as described on page 5-11.

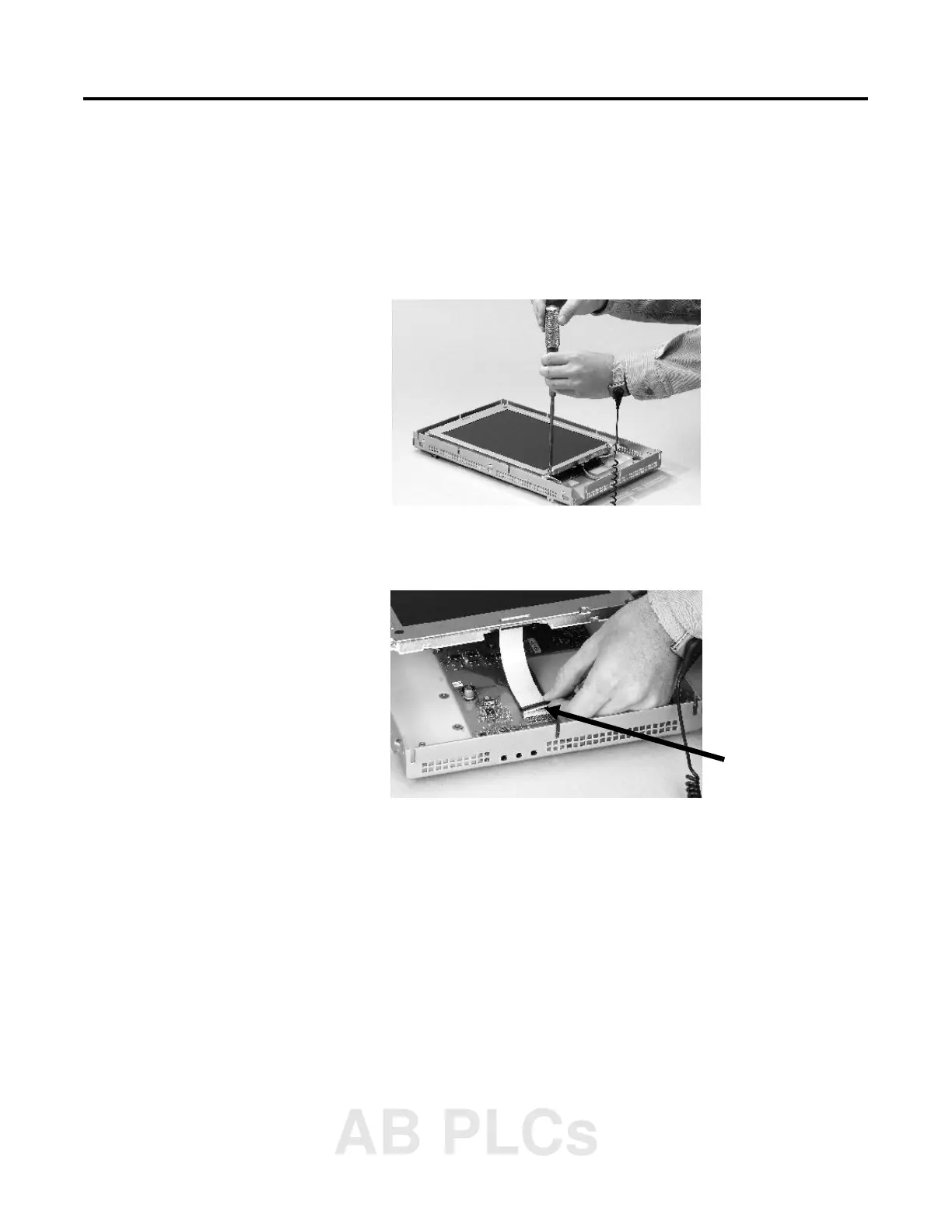

3. Remove the 4 screws that secure the LCD Display.
4. Lift the LCD Display and detach the Display Connector from the
circuit board. The location of the connector varies by model.
Display
Connector
