Publication 2711P-UM001A-EN-P
2-8 Installation
Panel Installation
All of the PanelView Plus terminals are installed in the same manner
using clips for mounting. The number of clips used (4, 6 or 8) varies
by terminal type. The mounting clips are shipped with each terminal.
To install a PanelView Plus terminal in a panel:
1. Cut an opening in the panel using the panel cutout provided
with the terminal. Remove any sharp edges or burrs.

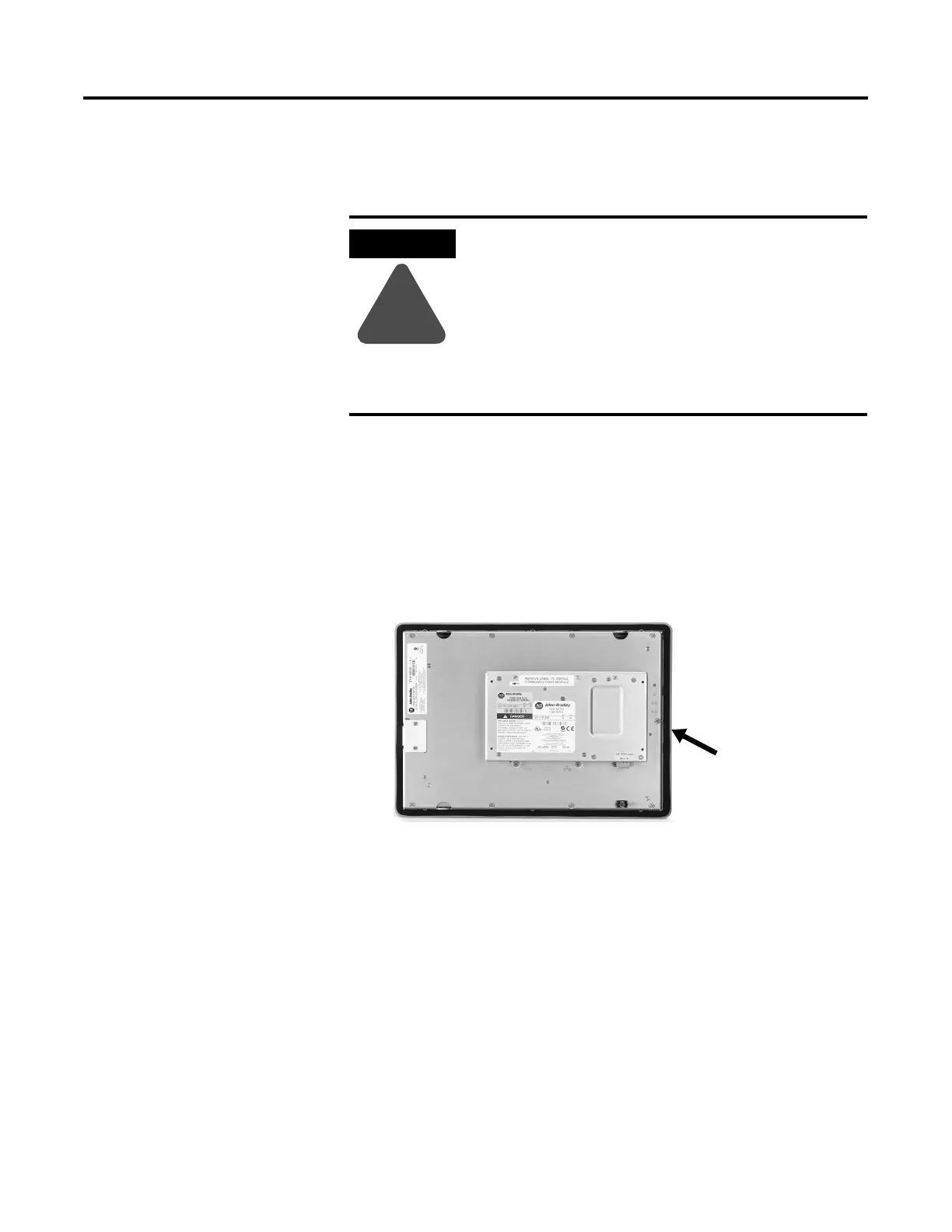

2. Make sure the terminal sealing gasket is properly positioned on
the terminal as shown. This gasket forms a compression type
seal. Do not use sealing compounds.
3. If using keypad legend strips on keypad terminals, we
recommend that you install the strips before installing the
terminal. Be careful not to pinch the legend strip during
installation.
4. Place the terminal in the panel cutout.
ATTENTION
!
• Disconnect all electrical power from the panel
before making the panel cutout.
• Make sure the area around the panel cutout is
clear.
• Do not allow metal cuttings to enter any
components already installed in the panel.
• Failure to follow these instructions may result in
personal injury or damage to panel components.
Sealing Gasket
To Next Page
