Allen-Bradley PowerFlex 527 Original Instructions

Rockwell Automation Publication 520-TD002A-EN-E - May 2015 37
PowerFlex 527 AC Drive Specifications

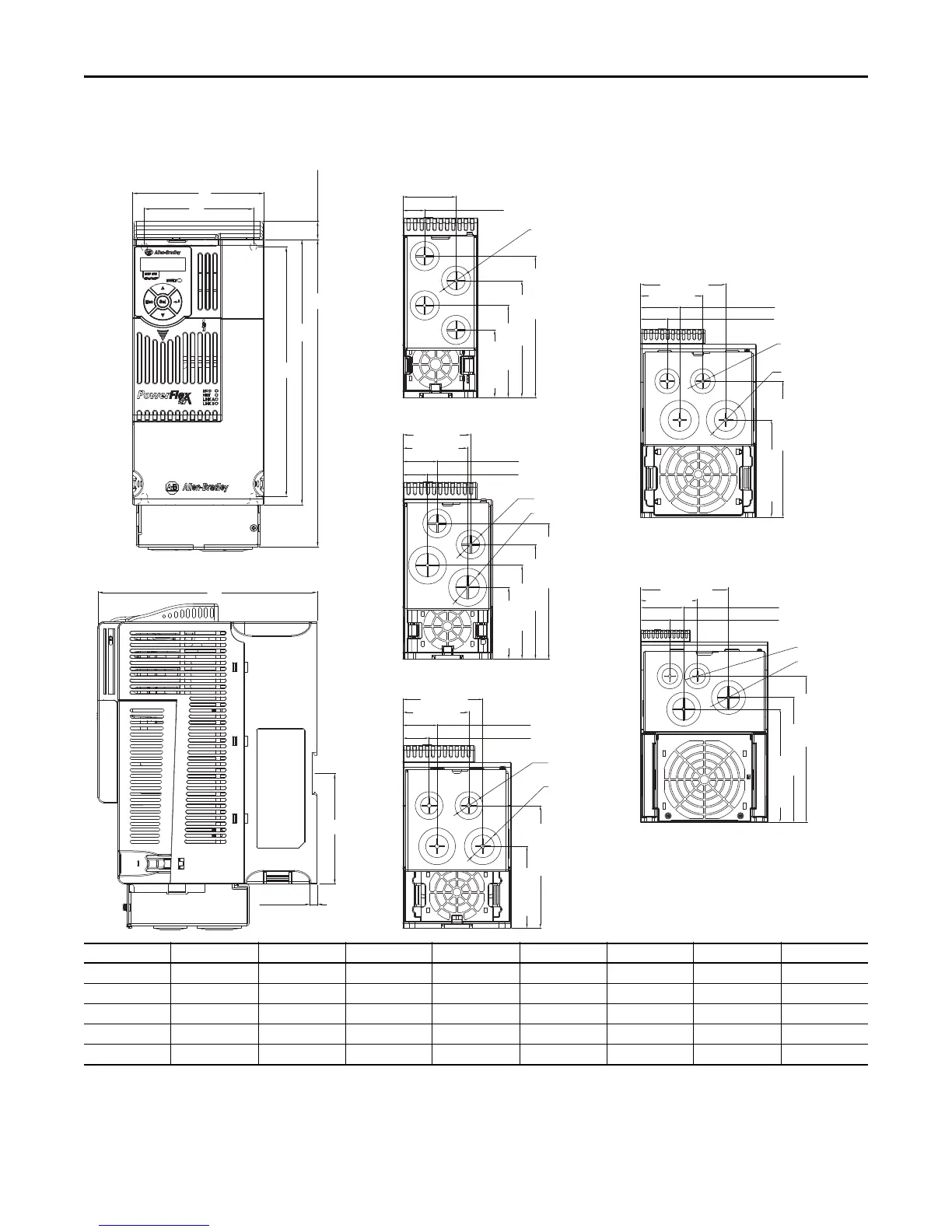

Accessory Dimensions
IP 30/NEMA 1/UL Type 1 Kit – Dimensions are in mm and (in.).
Frame Size A B C D E F G H
A 72.0 (2.83) 219.0 (8.62) 172.0 (6.77) 57.5 (2.26) 152.0 (5.98) 92.7 (3.65) 6.0 (0.24) 140.0 (5.51)
B 87.0 (3.43) 218.0 (8.58) 172.0 (6.77) 72.5 (2.85) 180.0 (7.09) 92.7 (3.65) 6.0 (0.24) 168.0 (6.61)
C 109.0 (4.29) 255.0 (10.04) 184.0 (7.24) 90.5 (3.56) 222.0 (8.66) 92.7 (3.65) 6.0 (0.24) 207.0 (8.15)
D 130.0 (5.12) 295.0 (11.61) 212.0 (8.35) 116.0 (4.57) 260.0 (10.24) – 6.0 (0.24) 247.0 (9.74)
E 185.0 (7.28) 350.0 (13.78) 279.0 (10.98) 160.0 (6.30) 300.0 (11.81) – 7.6 (0.30) 280.0 (11.02)
C
F
G
51.1 (2.01)
21.0 (0.82)
135.4 (5.33)
111.9 (4.41)
88.2 (3.47)
64.7 (2.55)
ø21.5 (ø0.85)
66.1 (2.60)
63.1 (2.48)
33.5 (1.32)
23.9 (0.94)
128.5 (5.06)
108.5 (4.27)
88.3 (3.48)
67.3 (2.65)
ø21.5 (ø0.85)
ø27.5 (ø1.08)
123.3 (4.85)
82.2 (3.24)
80.5 (3.17)
66.5 (2.62)
34.5 (1.36)
26.5 (1.04)
ø21.5 (ø0.85)
ø27.5 (ø1.08)
109.8 (4.32)
153.3 (6.04)
96.0 (3.78)
44.0 (1.73)
30.0 (1.18)
70.0 (2.76)
ø21.5 (ø0.85)
ø33.5 (ø1.32)
127.5 (5.02)
82.5 (3.25)
62.5 (2.46)
42.5 (1.67)
212.0 (8.35)
181.0 (7.13)
164.0 (6.46)
ø21.5 (ø0.85)
ø43.7 (ø1.72)
A
15.0 (0.59)
H
E
B
D
Frame A
Frame B
Frame C
Frame D
Frame E
