Allen-Bradley PowerFlex 527 Original Instructions

Rockwell Automation Publication 520-TD002A-EN-E - May 2015 39
PowerFlex 527 AC Drive Specifications

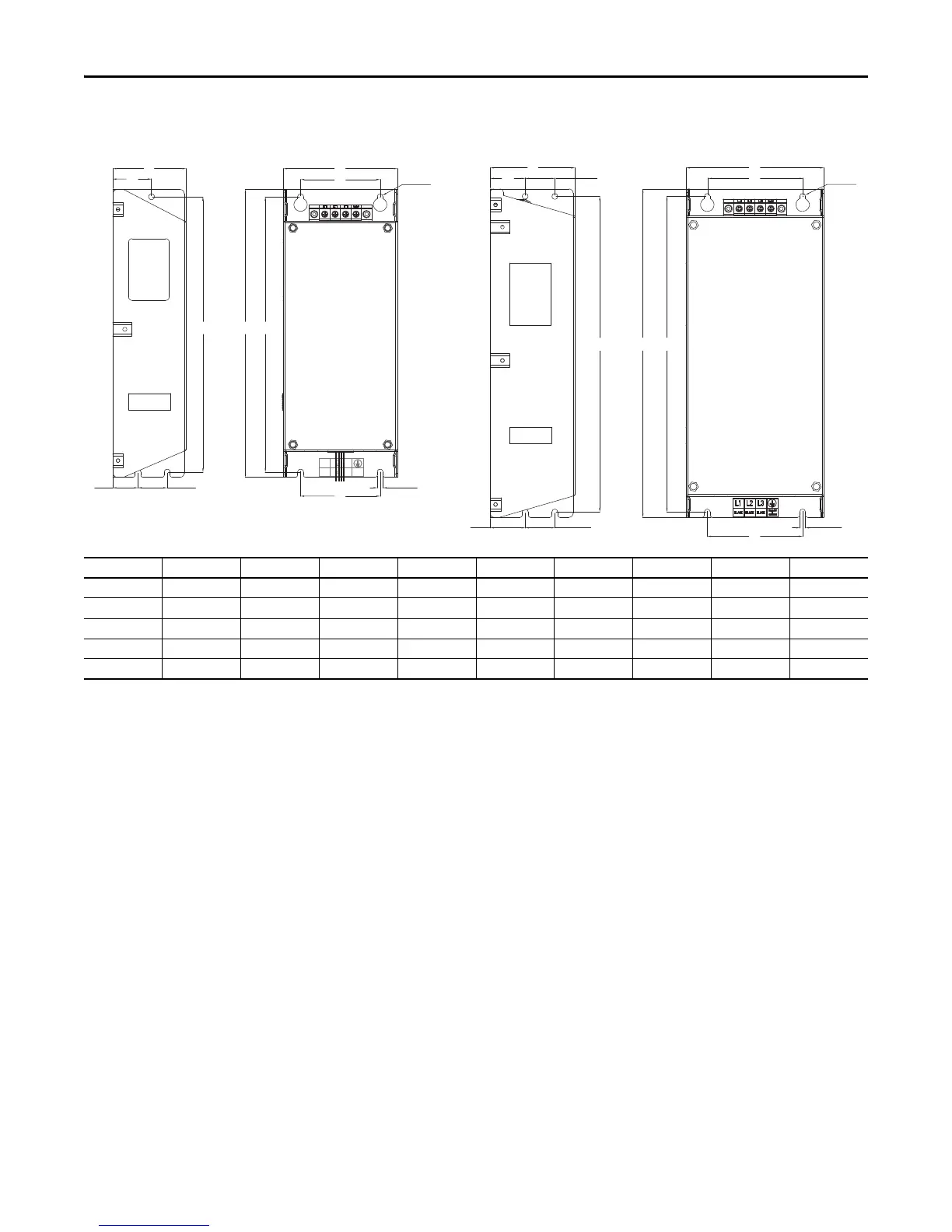

EMC Line Filter – Dimensions are in mm and (in.).
Frame Size A B C D E F G H I
A 55.0 (2.17) 72.0 (2.83) 234.0 (9.21) 30.0 (1.18) 223.0 (8.78) 54.0 (2.13) 20.0 (0.79) 23.0 (0.91) 5.5 (0.22)
B 70.0 (2.76) 87.0 (3.43) 270.0 (10.63) 35.0 (1.38) 258.0 (10.16) 58.0 (2.28) 25.0 (0.98) 24.0 (0.94) 5.5 (0.22)
C 70.0 (2.76) 109.0 (4.29) 275.0 (10.83) 37.0 (1.46) 263.0 (10.35) 76.0 (2.99) 25.0 (0.98) 28.0 (1.10) 5.5 (0.22)
D 80.0 (3.15) 130.0 (5.12) 310.0 (12.20) 33.0 (1.30) 298.0 (11.73) 90.0 (3.54) 33.0 (1.30) 28.0 (1.10) 5.5 (0.22)
E 80.0 (3.15) 155.0 (6.10) 390.0 (15.35) 33.0 (1.30) 375.0 (14.76) 110.0 (4.33) 33.0 (1.30) 28.0 (1.10) 5.5 (0.22)
A
D
E
GH
A
D
E
GH
H
B
F
F
CE
I
ø5.5
(ø0.22)
B
CE
F
F
I
ø5.5
(ø0.22)
BLACK BLACK
L1 L2 L3
BLACK
YELLOW
&
GREEN
Frame A...D Frame E
