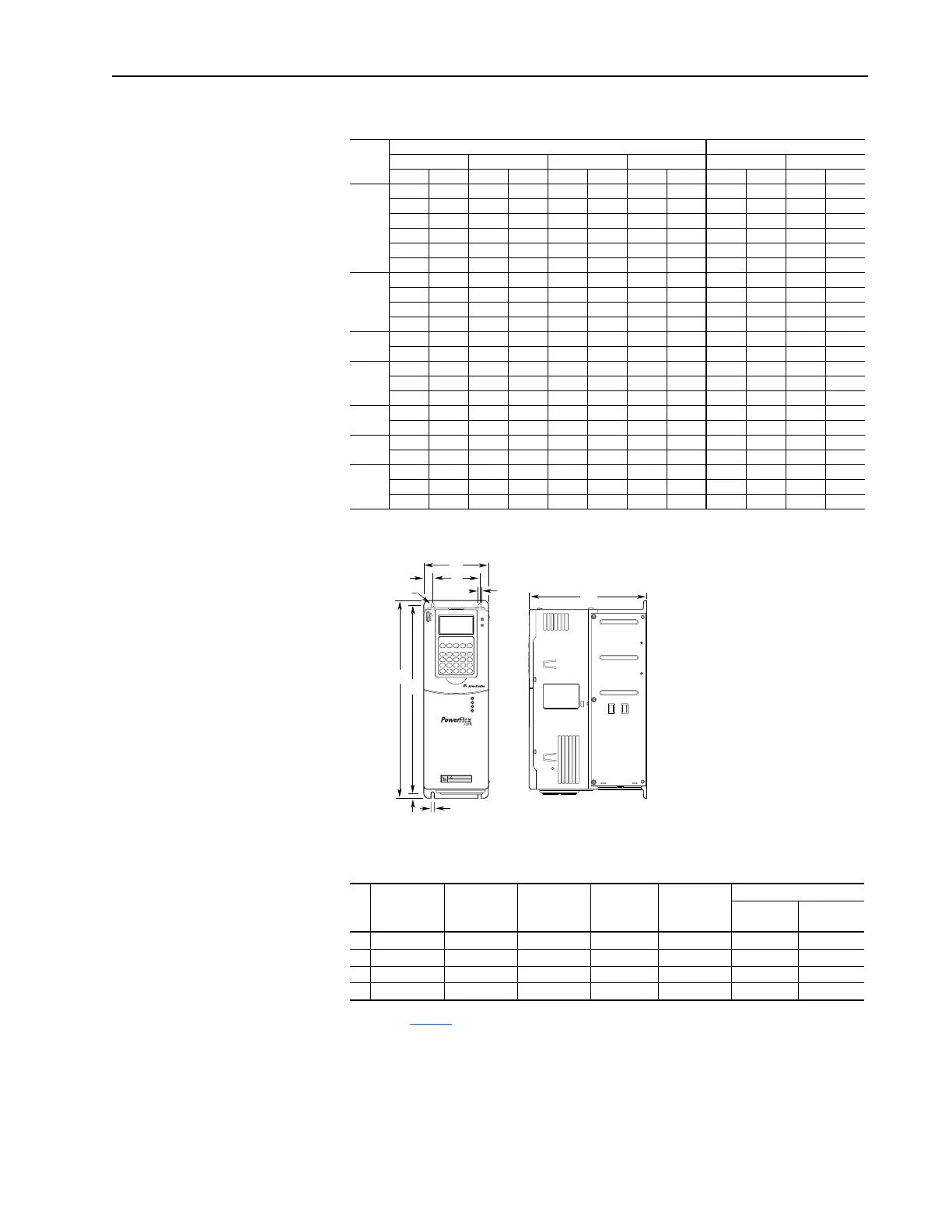

PowerFlex 700 Dimensions 1-13
PowerFlex 700
Dimensions
Table 1.B PowerFlex 700 Frames
Figure 1.7 PowerFlex 700 Frames 0-3
(0 Frame Shown)
Dimensions are in millimeters and (inches)
Frame
AC Input DC Input
208/240 400V 480V 600V 540V 650V
ND HP HD HP ND kW HD kW ND HP HD HP ND HP HD HP ND HP HD HP ND HP HD HP
0 0.5 0.33 0.37 0.25 0.5 0.33 – – 0.37 0.25 0.5 0.33
1 0.75 0.75 0.55 1 0.75 – – 0.75 0.55 1 0.75
– – 1.5 0.75 2 1.5 – – 1.5 0.75 2 1.5
––2.21.532––2.21.532
––42.253––42.253
– – 5.5 4 7.5 5 – – 5.5 4 7.5 5
1 2 1.5 7.5 5.5 10 7.5 10 7.5 7.5 5.5 10 7.5
3 2 117.515101510117.51510
53––––––––––
7.55––––––––––
2 107.515112015201515112015
– – 18.5152520252018.5152520
3 15 10 22 18.5 30 25 30 25 22 18.5 30 25
20 15 30 22 40 30 40 30 30 22 40 30
– – 37 30 50 40 50 40 37 30 50 40
4 25 20 45 37 60 50 60 50 45 37 60 50
3025––––––––––
5 40 30 55 45 75 60 75 60 55 45 75 60
50 40 – – 100 75 100 75 – – 100 75
6 60 50 75 55 125 100 – – 75 55 125 100
75 60 90 75 150 125 – – 90 75 150 125
– – 110 90 – – – – 110 90 – –
Frame
(1)
(1)
Refer to Ta ble 1. B for frame information.
ABCDE
Weight
(2)
kg (lbs.)
(2)
Weights include HIM and Standard I/O.
Drive
Drive &
Packaging
0 110.0 (4.33) 336.0 (13.23) 200.0 (7.87) 80.0 (3.15) 320.0 (12.60) 5.22 (11.5) 8.16 (18)
1 135.0 (5.31) 336.0 (13.23) 200.0 (7.87) 105.0 (4.13) 320.0 (12.60) 7.03 (15.5) 9.98 (22)
2 222.0 (8.74) 342.5 (13.48) 200.0 (7.87) 192.0 (7.56) 320.0 (12.60) 12.52 (27.6) 15.20 (33.5)
3 222.0 (8.74) 517.5 (20.37) 200.0 (7.87) 192.0 (7.56) 500.0 (19.69) 18.55 (40.9) 22.68 (50)
C
A
D
15.0 (0.59)
5.8 (0.23) dia.
see below
E
8.0
(0.31)
5.5 (0.22) - Frames 0-1
7.0 (0.28) - Frames 2-3
3 Places
B
HOT surfaces can cause severe burns
CAUTION
