10-2 Installing the PV900/1000 Terminals
Required Tools
Other than the tools required to make the panel cutout, the tools
required for installation are:
• small slotted screwdriver
• torque wrench (in. / lbs) with slotted or phillips head driver
Mounting Dimensions
PV900 Terminals

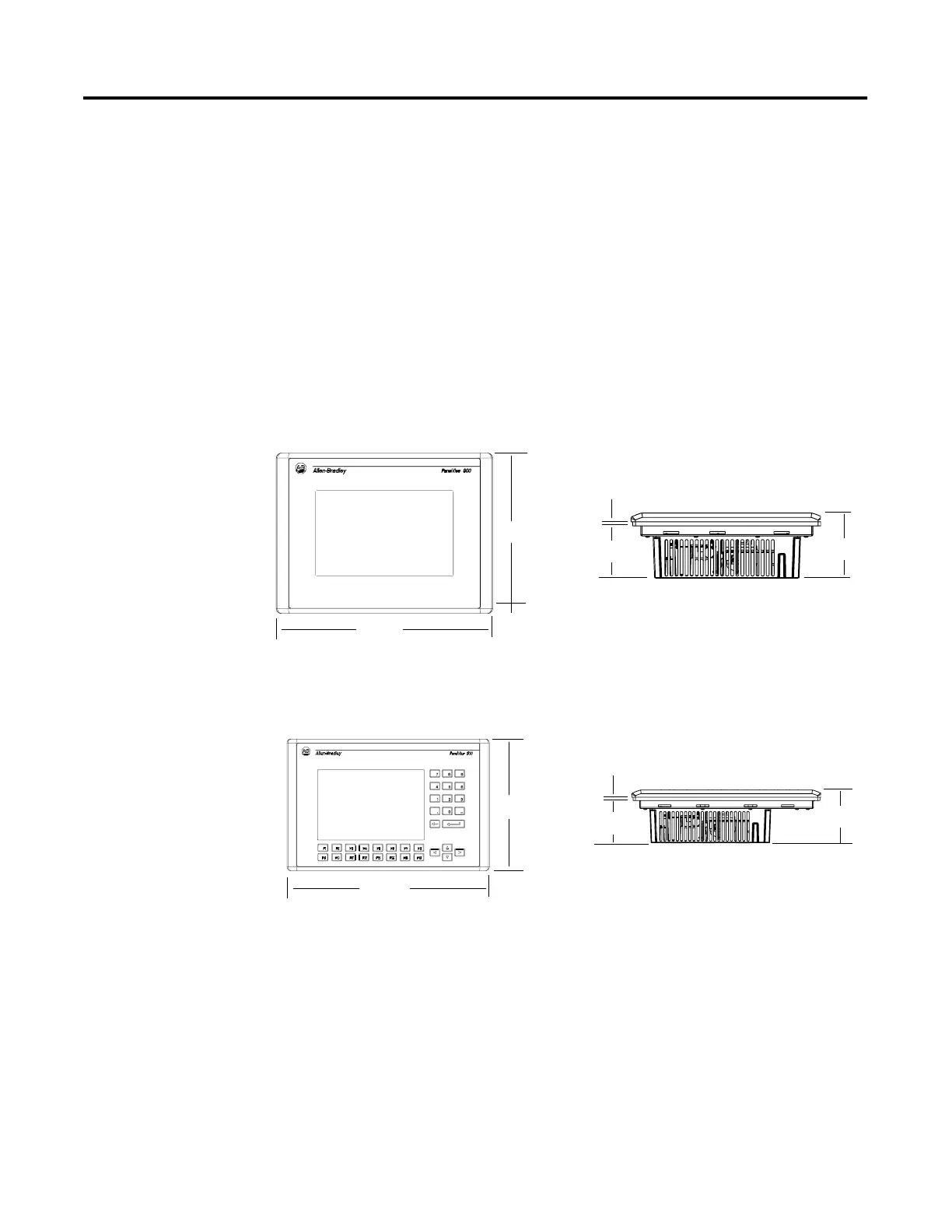

The illustrations below show mounting dimensions for the PV900
monochrome and color terminals.
PV900 Touch Terminal Mounting Dimensions
PV900 Keypad Terminal Mounting Dimensions
336 mm
(13.24 in)
249 mm
(9.80 in)
6.9 mm
(0.27 in)
112 mm
(4.40 in)
90 mm
(3.54 in)
Top View
406 mm
(15.97 in)
112 mm
(4.40 in)
6.9 mm
(0.27 in)
90 mm
(3.54 in)
Top View
249 mm
(9.80 in)
