Publication 2711-UM014B-EN-P
Installing the PV1400 Terminal 11-3

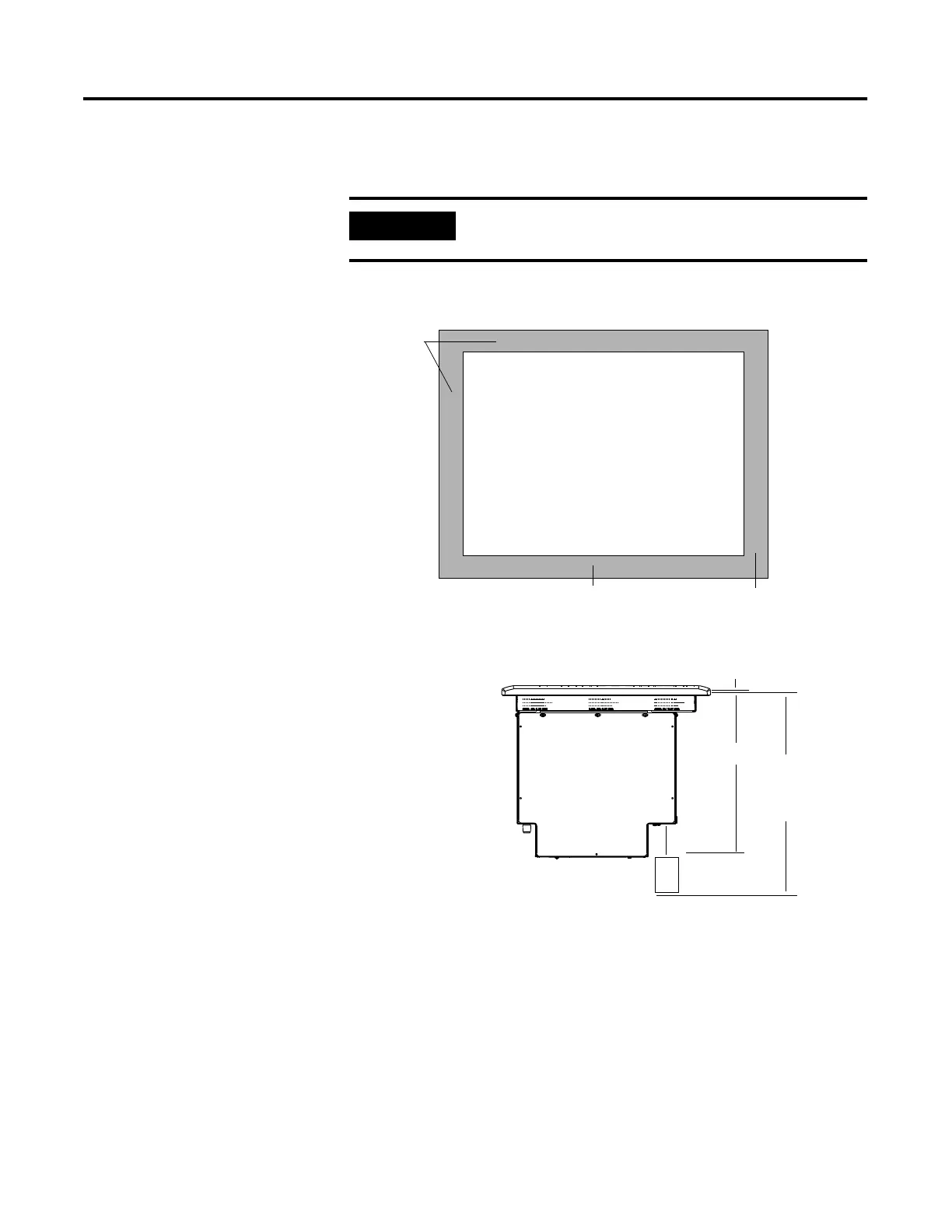

Clearances
Allow adequate space for mounting, air flow, maintenance, adjusting
brightness/contrast, memory card and legend strip installation.
IMPORTANT
If using a memory card, allow a back clearance to
load the card.
Leave 51 mm (2.0 in) for Mounting
Leave 51 mm (2.0 in)
for Mounting and Air Flow
Leave 51 mm (2.0 in)
for Mounting and Air Flow
Side, Top and Bottom Clearances
Terminal Cutout - Front View
Use full size template
shipped with terminal
370 mm
(14.58 in)
3.3 mm
(0.13 in)
Approximately 400
mm (15.74 in) is
required to insert
and load a memory
card.
Card
Back Clearance
