Allen-Bradley PV550 User Manual

Publication 2711-UM014B-EN-P
12-10 Terminal Connections
DH+ Terminal Connections
This section describes connections for the DH+ PanelView terminals
including:
• DH+ ports
• typical DH+ system configuration
• making DH+ connections
DH+ Terminal Ports
The DH+ versions of the PanelView terminals (catalog numbers
ending in 8) have a DH+ port and an RS-232 port.
Use the DH+ port to:
• communicate with a PLC-5 controller on the Allen-Bradley DH+
link via the processor’s DH+ port.
• communicate with an SLC 5/04 controller (Channel 1 port) on
the Allen-Bradley DH+ link via the processor’s DH+ port.
• communicate with a ControlLogix controller on the
Allen-Bradley DH+ link via the 1756-DHRIO module.
• transfer applications over the DH+ link from a computer with a
DH+ connection.
Use the RS-232 port to:
• transfer PanelView applications between a computer and the
DH+ terminal using a direct connection.
• connect a printer. For connection details, see the last section in
this chapter.

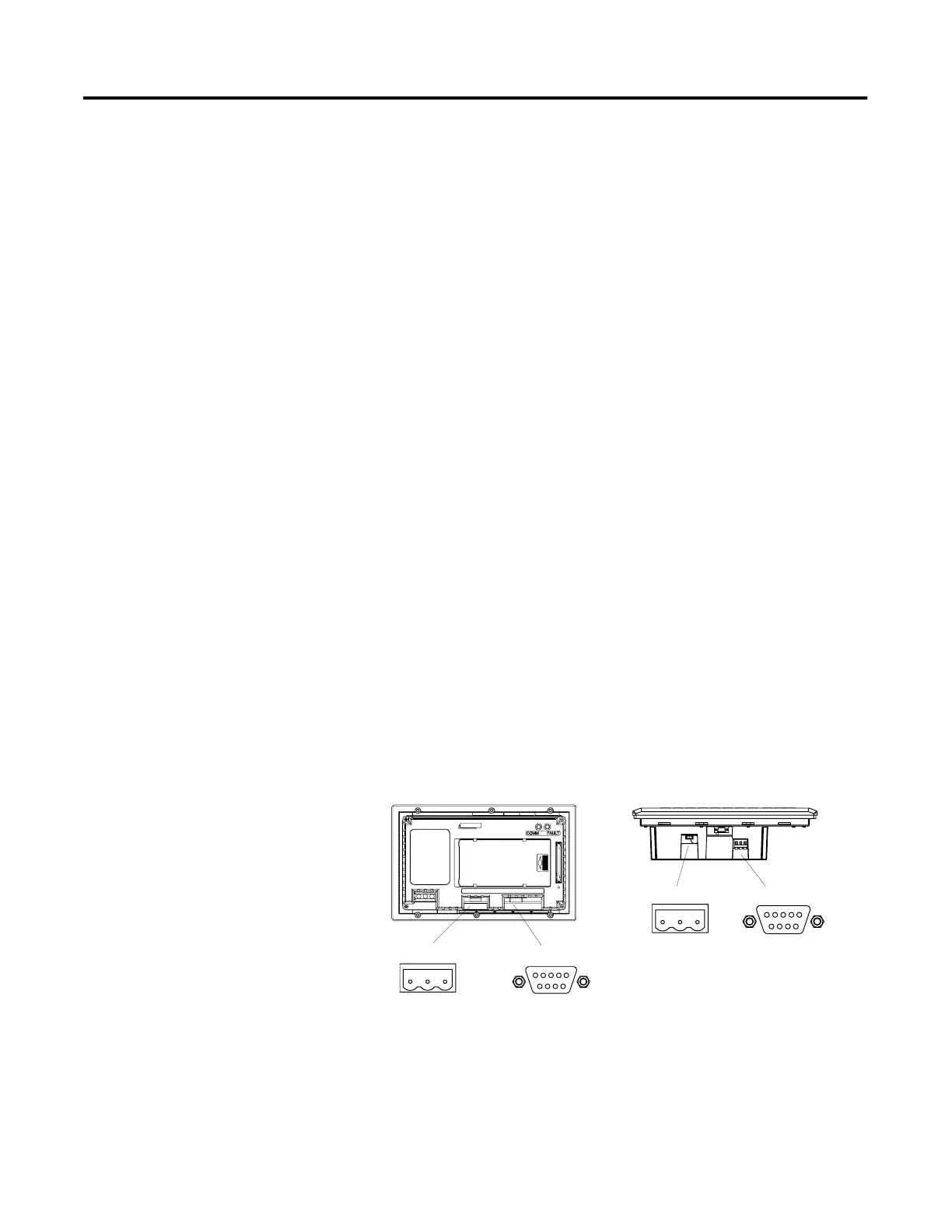

DH+ Port
DH+ Port
RS-232 Port
RS-232 Port
PanelView 550
PanelView 1000
