Publication 2711-UM014B-EN-P
11-2 Installing the PV1400 Terminal
Mounting Dimensions

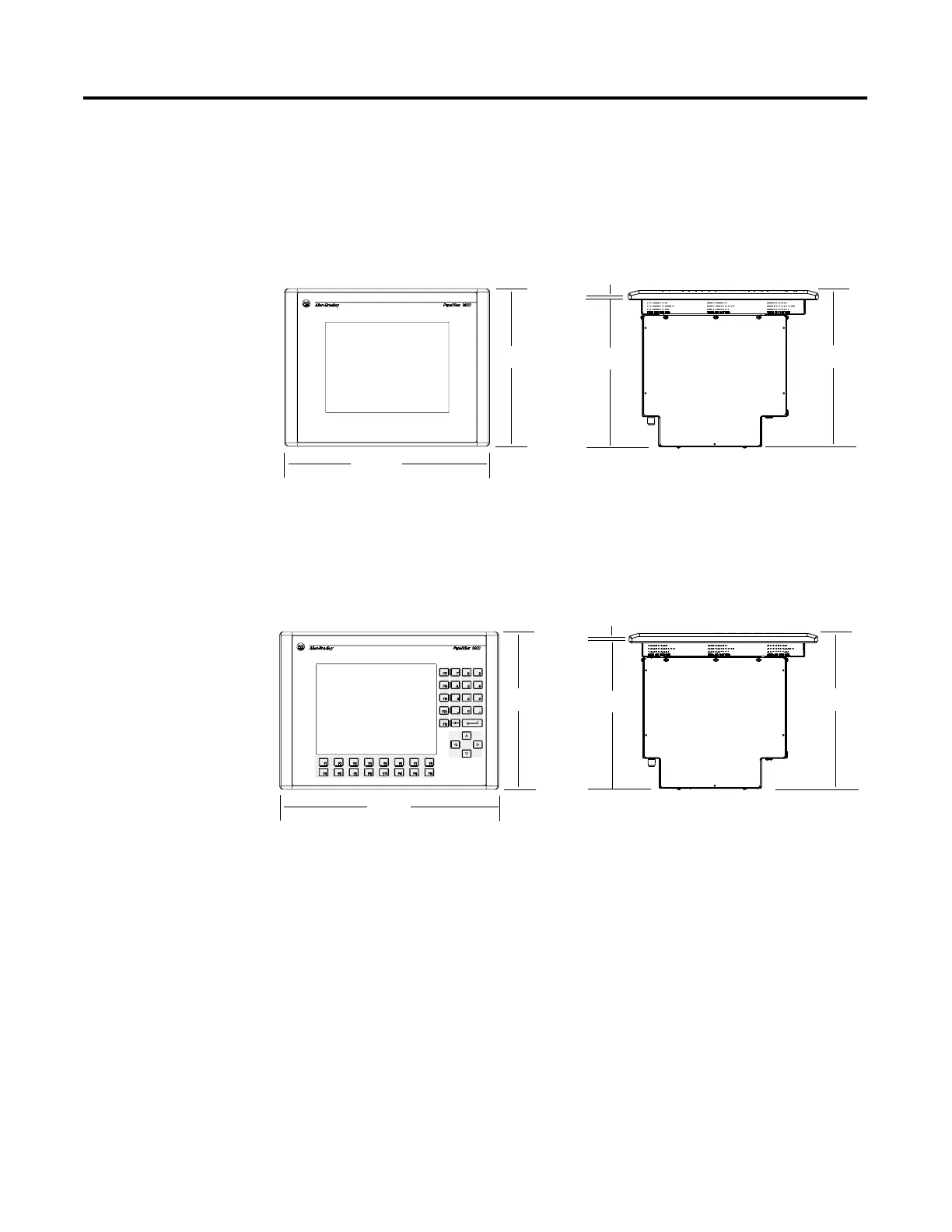

The illustrations below show mounting dimensions for the PV1400
terminals.
PV1400 Touch Terminal Mounting Dimensions
PV1400 Keypad Terminal Mounting Dimensions
441 mm
(17.37 in)
394 mm
(15.53 in)
370 mm
(14.58 in)
3.3 mm
(0.13 in)
355 mm
(13.97 in)
Top View
483 mm
(19.0 in)
394 mm
(15.53 in)
370 mm
(14.58 in)
3.3 mm
(0.13 in)
355 mm
(13.97 in)
Top View
