Publication 2711-UM014B-EN-P
Installing the PV1400 Terminal 11-5
Installing the PV1400 in a
Panel
This section gives procedures for mounting a PV1400 using:
• mounting clips (10 shipped with terminal, 10 required)
• mounting studs (ordered separately, Catalog No. 2711-NP3)
To install the PV1400 terminal in a panel using clips:
1. Cut an opening in the panel using the panel cutout provided
with the terminal. Remove any sharp edges or burrs. Do not drill
the mounting stud holes if you are using clips.

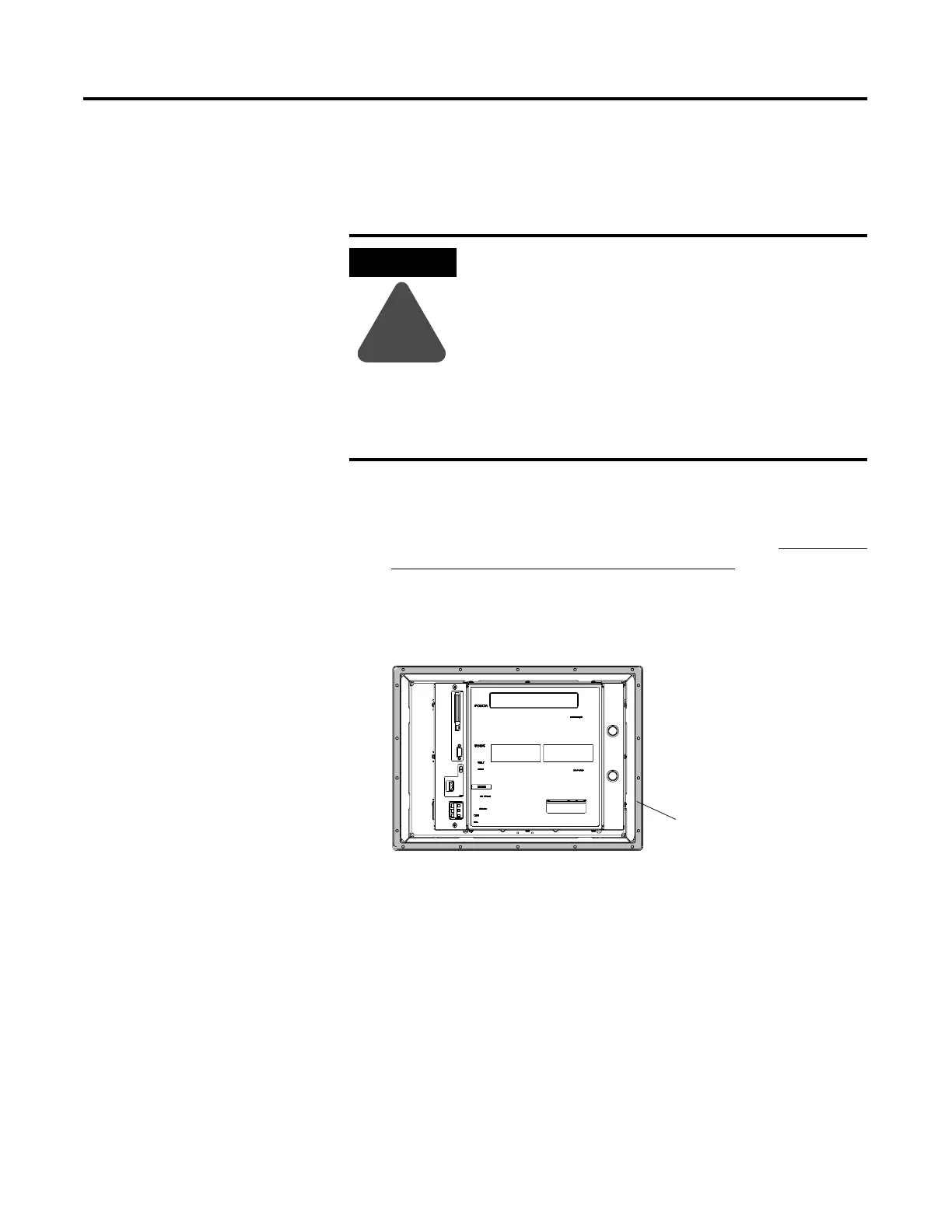

2. Make sure the sealing gasket is properly positioned on the
terminal as shown below. This gasket forms a compression type
seal. Do not use sealing compounds.
3. Although the keypad legend strip can be installed any time, we
recommend that you install them after the terminal is installed.
4. Place the PV1400 in the panel cutout. The terminal will snap
into the panel as the temporary retaining tabs lock against the
panel.
Note: The PV1400 has 2 metal tabs (on bottom edge) that
temporarily lock the terminal against the panel. These tabs only
facilitate installation of the mounting hardware. The tabs are not
designed to provide permanent mounting.
ATTENTION
!
• Disconnect all electrical power from the panel
before making the cutout.
• Make sure the area around the panel cutout is
clear.
• Do not allow metal cuttings to enter any
components that may already be installed in the
panel.
• Failure to follow this warning may result in
personal injury or damage to the panel
components.
Sealing Gasket
To Next Page
