Publication 2711-UM014B-EN-P
12-24 Terminal Connections
RS-232 (DF1) Terminal
Connections
This section describes connections for the RS-232 (DF1) versions of
the PanelView terminal including:
• compatible controllers
• RS-232 terminal ports
• connecting to a controller (point-to-point)
• using a modem
• connecting to a DeviceNet or EtherNet/IP network
Note: For PanelView 300 Micro terminals, refer to page 12-39.
Compatible Controllers
The RS-232 (DF1) terminals support full duplex communications with
the following controllers.
• MicroLogix 1000, 1200, 1500 via the communication port.
• ControlLogix, CompactLogix,FlexLogix controller via RS-232 port
• SLC, PLC or MicroLogix 1000, 1200 or 1500 via 1761-Net-DNI
modules (for DeviceNet Network).
• SLC 5/03, 5/04, or 5/05 via Channel 0/DF1 port.
• PLC-5/10, 5/12, 5/15, or 5/25 via bridge such as the 1770-KF2, or
1785-KE.
• Enhanced PLC-5 controllers (for example, PLC-5/11, 5/20, 5/20C,
5/20E) via Channel 0/DF1 port.
RS-232 (DF1) Terminal Ports
The RS-232 (DF1) PanelView terminals, with catalog numbers ending
in 17, have a single RS-232 commuications port supporting DF1 (Full
Duplex) communications port. PanelView terminals with catalog
numbers ending in 16 also have an RS-232 printer/file transfer port.
• Use the DF1 port to communicate with a logic controller using
DF1 full duplex communications.
• Use the RS-232 printer/file transfer port to transfer applications
between a computer and the terminal or to connect a printer.
For connection details, see the last section in this chapter.

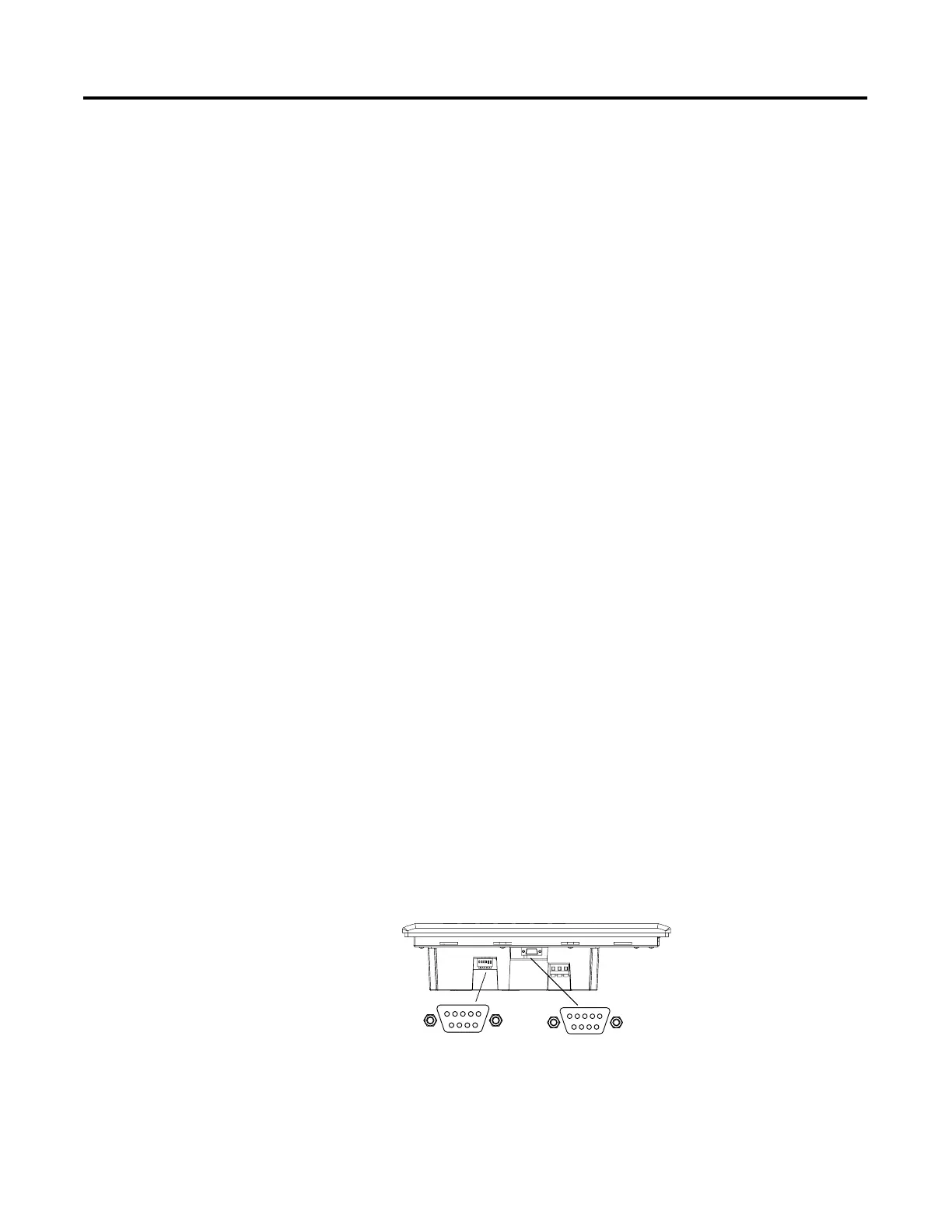

DF1 Port
PanelView 1000 shown
RS-232 File Transfer/Printer Port
Note: The PanelView 300
has one DF1 port which is
used for communications
and transferring
applications.
