11-4 Installing the PV1400 Terminal

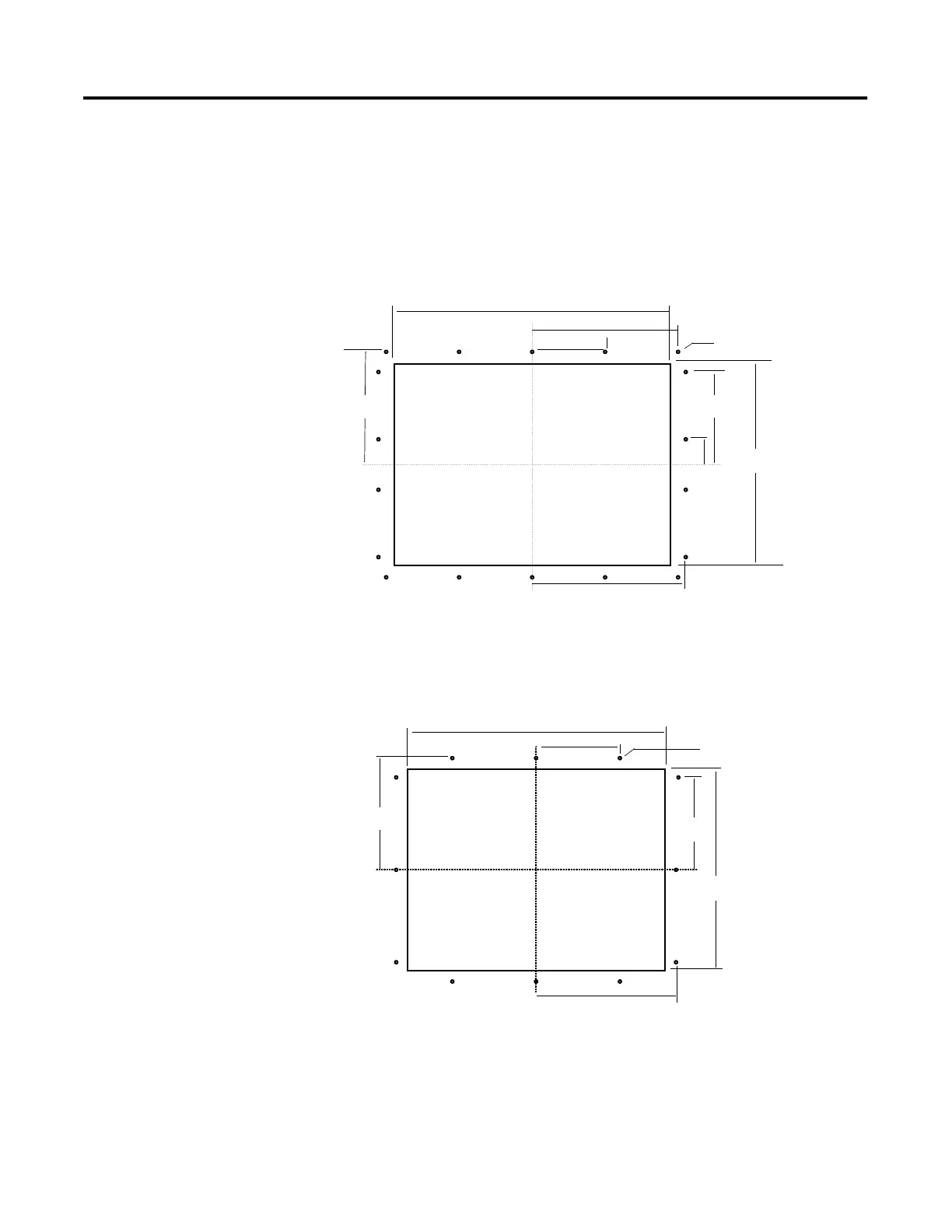

Cutout Dimensions
Use the full size template provided with the terminal to mark cutout
dimensions. The illustration below shows reduced size cutouts with
dimensions.
PV1400 Keypad Terminals
PV1400 Touch Screen Terminals
170 mm
(6.70 in)
110 mm
(4.35 in)
221 mm
(8.70 in)
419 mm
(16.50 in)
233 mm
(9.16 in)
305 mm
(12.0 in)
38mm
1.50 in
7/32 in (5.56 mm) Typical
18 Holes
Ignore stud holes if
mounting terminal
using panel clips.
140 mm
(5.50 in)
391 mm
(15.40 in)
212 mm
(8.35 in)
305 mm
(12.0 in)
169 mm
(6.65 in)
7/32 in (5.56 am) Typical
18 Holes
Ignore stud holes if
mounting terminal
using panel clips.
140 mm
(5.50 in)
127 mm
(5.0 in)
