49-EN
Accessory List
Main unit ............................................................................................................. 1
Power cable........................................................................................................ 1
RCA cable ............................................................................................................ 1
GPS antenna ............................................................................................... 1set
Microphone ....................................................................................................... 1
USB extension cable ...................................................................................... 1
Screw .................................................................................................................... 4
Countersunk screw .........................................................................................4
Quick Reference Guidance ........................................................................... 1
Card note1 ..........................................................................................................1
Card note2 ..........................................................................................................1
Warranty card .................................................................................................... 1

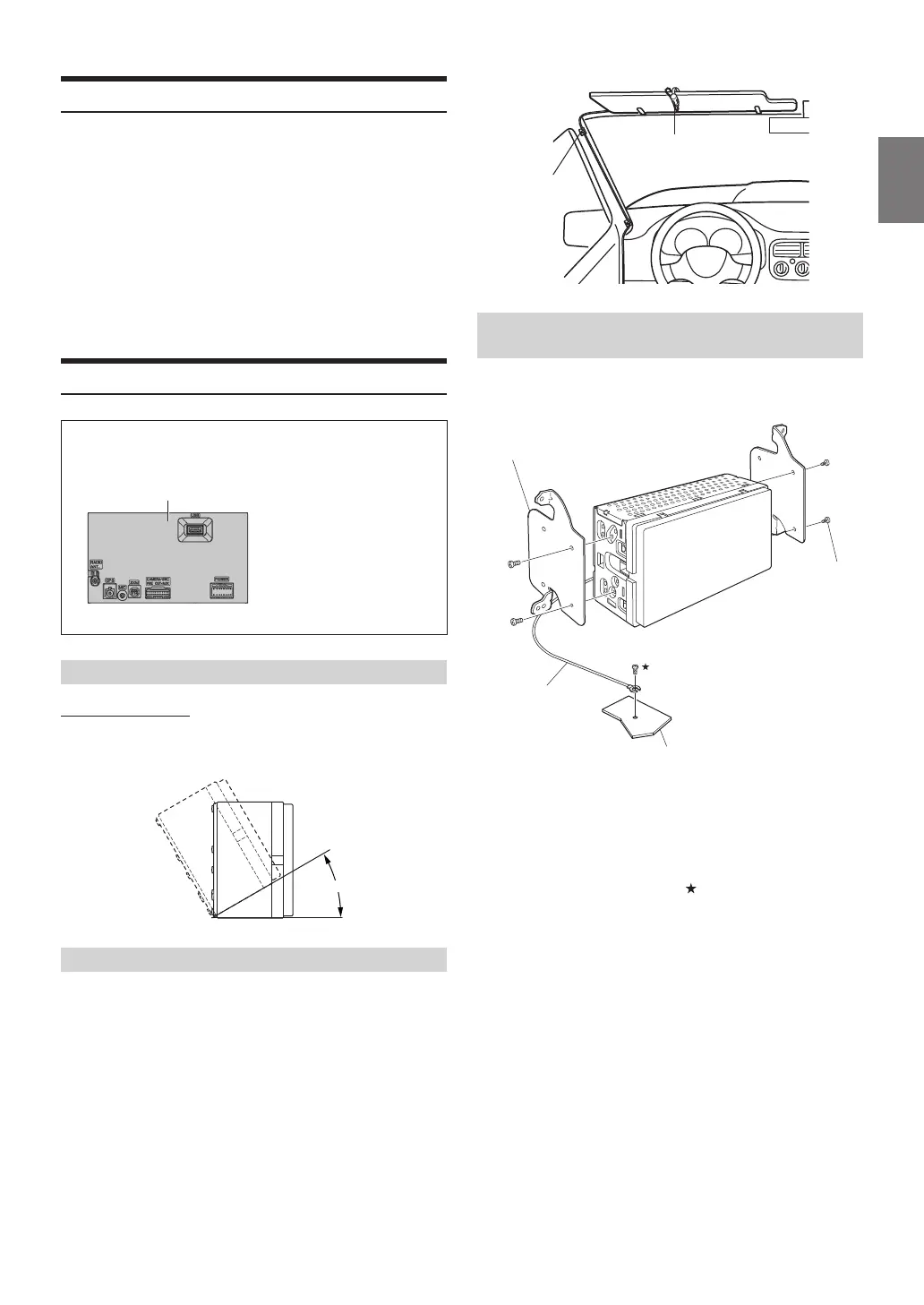

Installation
CAUTION
• Do not cover the heat sink to block air circulation, as heat can
accumulate in the chamber and cause a re.
Heat sink
Rear of the Unit
Caution concerning the installation location
Angle of installation
Install at an angle between horizontal and 30°. Note that installing at
an angle outside of this range will result in a loss of performance and
possibly damage.
0-30°
Mounting the Microphone
For safe use, make sure of the following:
• Location is stable and rm.
• Does not interfere with safety equipment.
• Driver’s view and operations are not obstructed.
• Microphone is located where the driver’s voice can be easily
picked up (for example, on the sun visor).
When you speak into the microphone, you should not have to
change your driving posture. This may cause a distraction, taking
your attention away from safely driving your vehicle. Carefully
consider direction and distance while mounting the microphone.
Conrm that the driver’s voice can be easily picked up at the selected
location.
Cable clamp
(sold separately)
Microphone
Installation example using the Original
Mounting Bracket
1
Mount the original mounting bracket to the unit using
the supplied screws.
Original Mounting Bracket
Screws (M5×8)
(included)
Ground Lead*
Chassis
The original mounting
bracket is not included with
the product.
2
Connect all other leads of the unit according to details
described in the “Connections” (page 50).
3
Mount the unit in a car.
•
To securely connect the ground lead, use an already installed screw on
a metal part of the vehicle (marked ( )) or a clean, bare metal spot
on the vehicle's chassis.
•
Fix the cables carefully. Do not damage them by mounting them into
movable parts, such as the seat rail, or by locating them against sharp
or pointed edges.
4
Reattach the removed vehicle parts (panels, etc.) or
other aftermarket dash kit back onto the vehicle.
To Next Page
