2.4. Exterior view

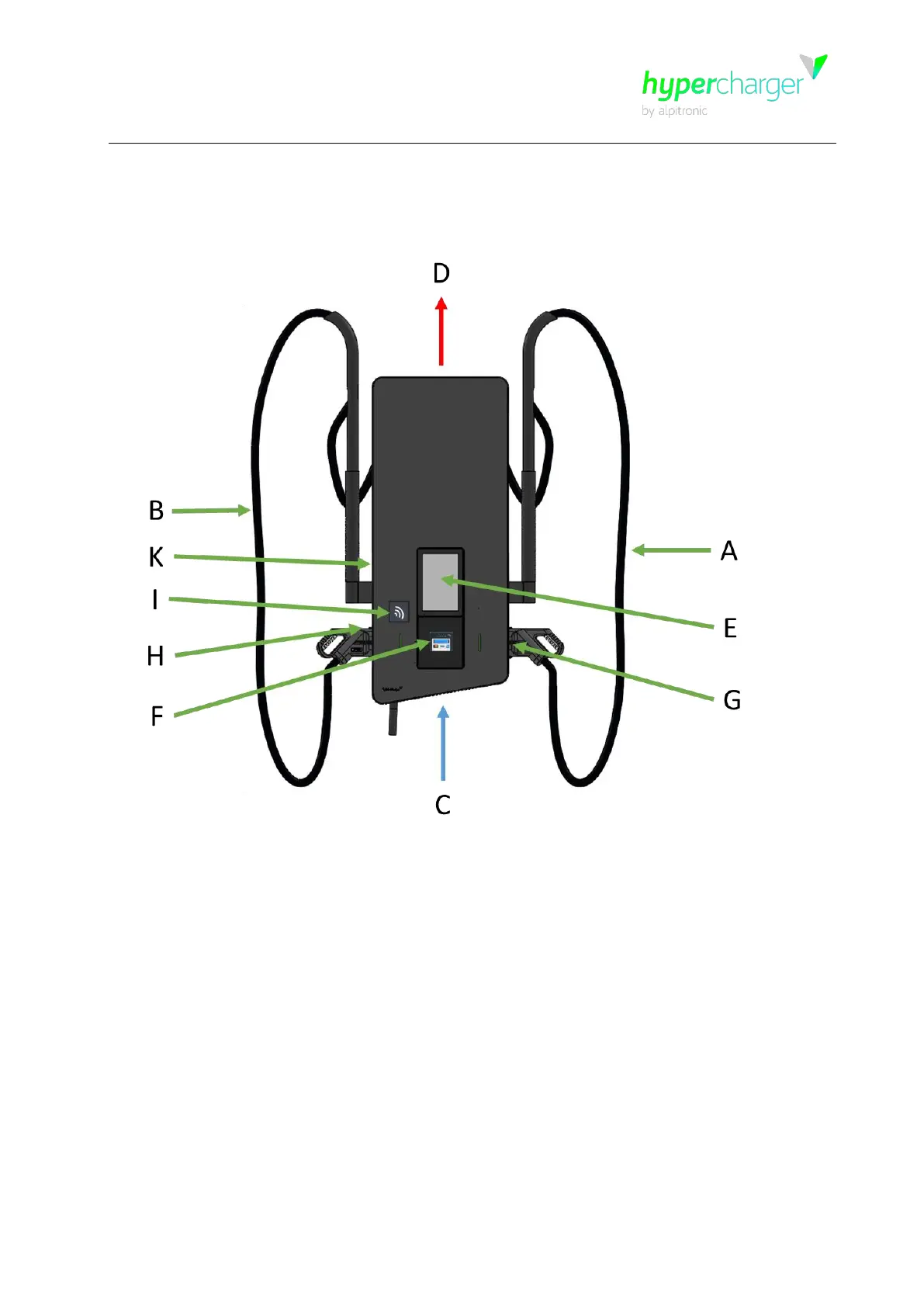

The following figure 5 shows the various elements of the unit from the outside.
Figure 5: Elements of the HYC_50
A DC charging cable 1 (depending on configuration)
B DC charging cable 2 (depending on configuration)
C Air inlet
D Air outlet
E Display / HMI
F RFID card reader (optional position if I equipped with credit card reader)
G Charging plug holder 1
H Charging plug holder 2
I RFID card reader or credit card reader (optional)
K Type plate
