HYC_50 – Operation and Installation Guide
Hardware
Version 1-2
4 HYC_50 Installation and commissioning
All rights reserved. Reproduction of this document, in whole or in part, is only permitted with the permission of alpitronic GmbH.
Attention
The legal minimum widths for escape routes must be observed in any
case.
Before installation, compliance with all legal requirements for the
installation site (e.g. tilt resistance, impact protection, frost exposure, etc.)
must be checked.
Each charging cable must be located as close as possible to the parking
space to be supplied, taking into account ergonomics and mechanical
impact protection. In doing so, observe the cable radius (Figure 13)
The ground conditions should be as flat and level as possible in the areas
shown.

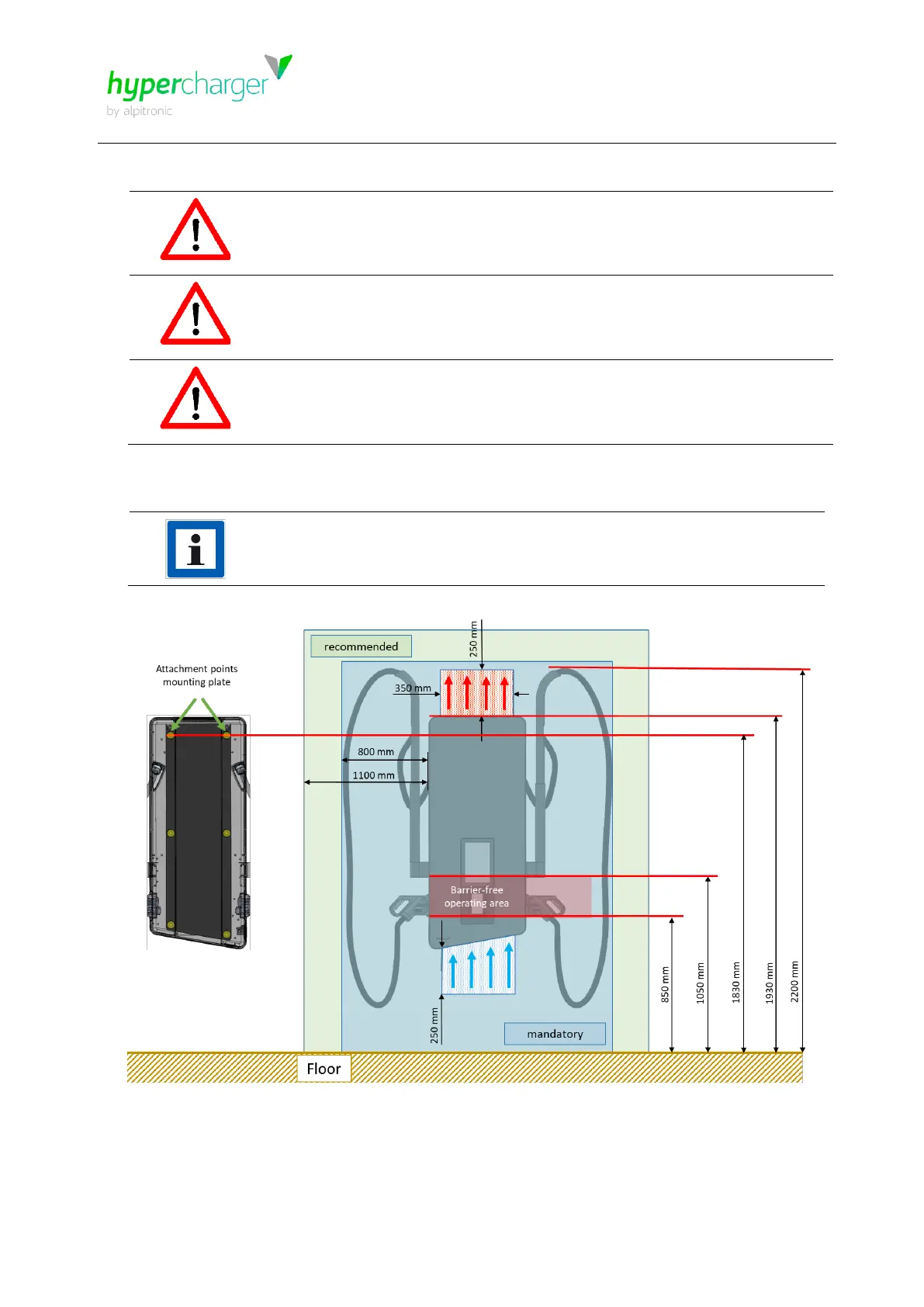

Figure 15: Installation height (barrier-free) and minimum distances for supply air and exhaust air
For an easy replacement of the modules, the suggested dimensions should be adhered to.
If HYC_50 is installed in a closed or even partially closed environment, the exhaust air must
