HYC_50 – Operation and Installation Guide
Hardware
Version 1-2
4 HYC_50 Installation and commissioning
All rights reserved. Reproduction of this document, in whole or in part, is only permitted with the permission of alpitronic GmbH.

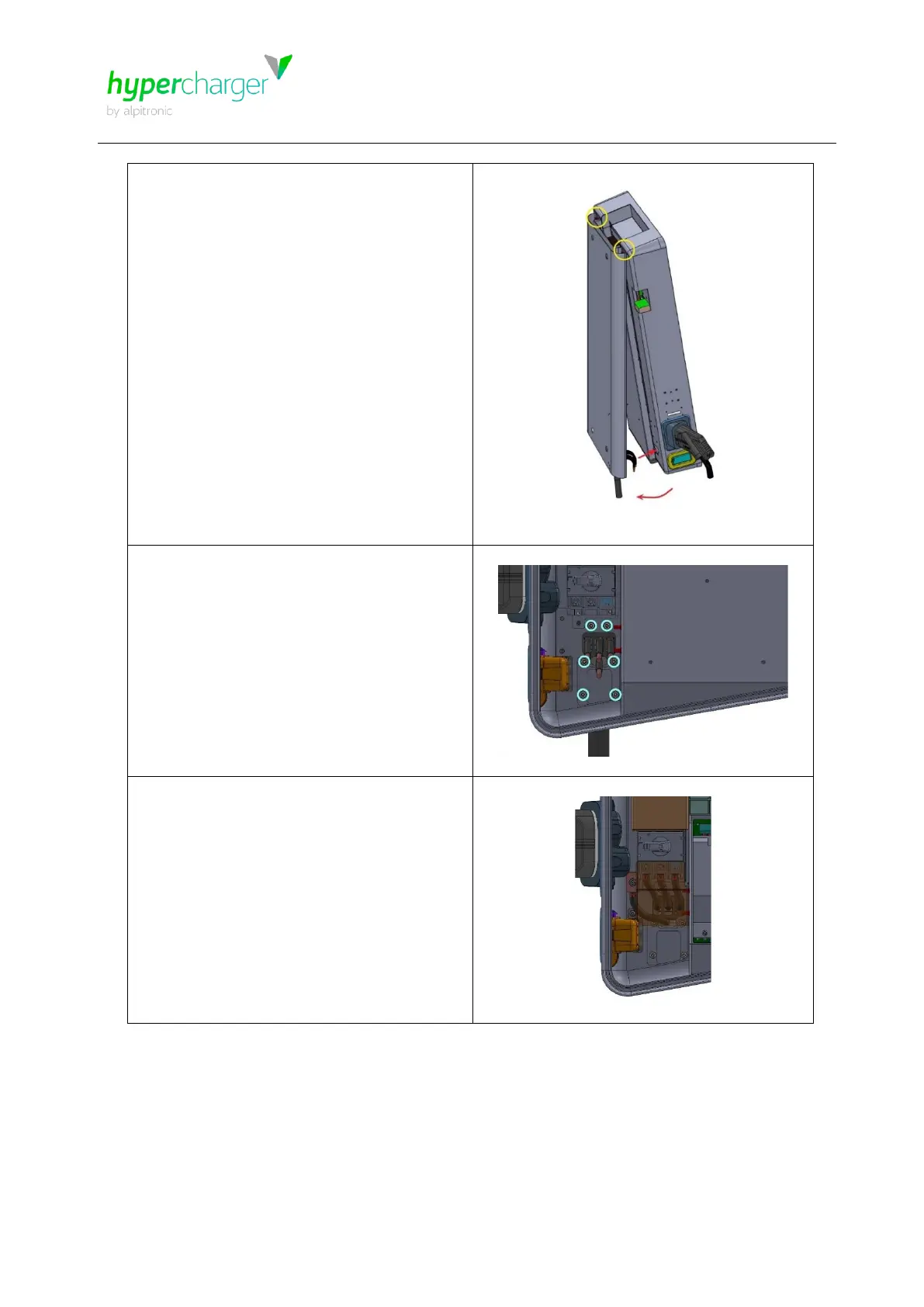

As soon as the HYC_50 hangs securely on
the two upper locking bolts, the cables can
be routed inside the unit.
Now the device only has to be fixed to the
back plate at the marked points (TX20 and
TX30), the phases have to be connected to
the main switch and the PE connection to
the housing.
The mounting of the touch guard finishes
the mounting process.
Table 6: Assembly steps HYC_60
