HYC_50 – Operation and Installation Guide
Hardware
Version 1-2
4 HYC_50 Installation and commissioning
All rights reserved. Reproduction of this document, in whole or in part, is only permitted with the permission of alpitronic GmbH.
4.1.3. Location selection
When installing the HYC_50, it must be ensured that a minimum distance to possible objects
around the HYC_50 is maintained in order to ensure sufficient air flow and to have enough
space available for possible service or maintenance work.
Attention
The position of the HYC_50 is to be selected, taking into account the
impact protection that may be required, so that possible damage due to
foreseeable circumstances is avoided.
Figure 14 shows the recommended minimum clearances to be provided when selecting a
location for a HYC_50.

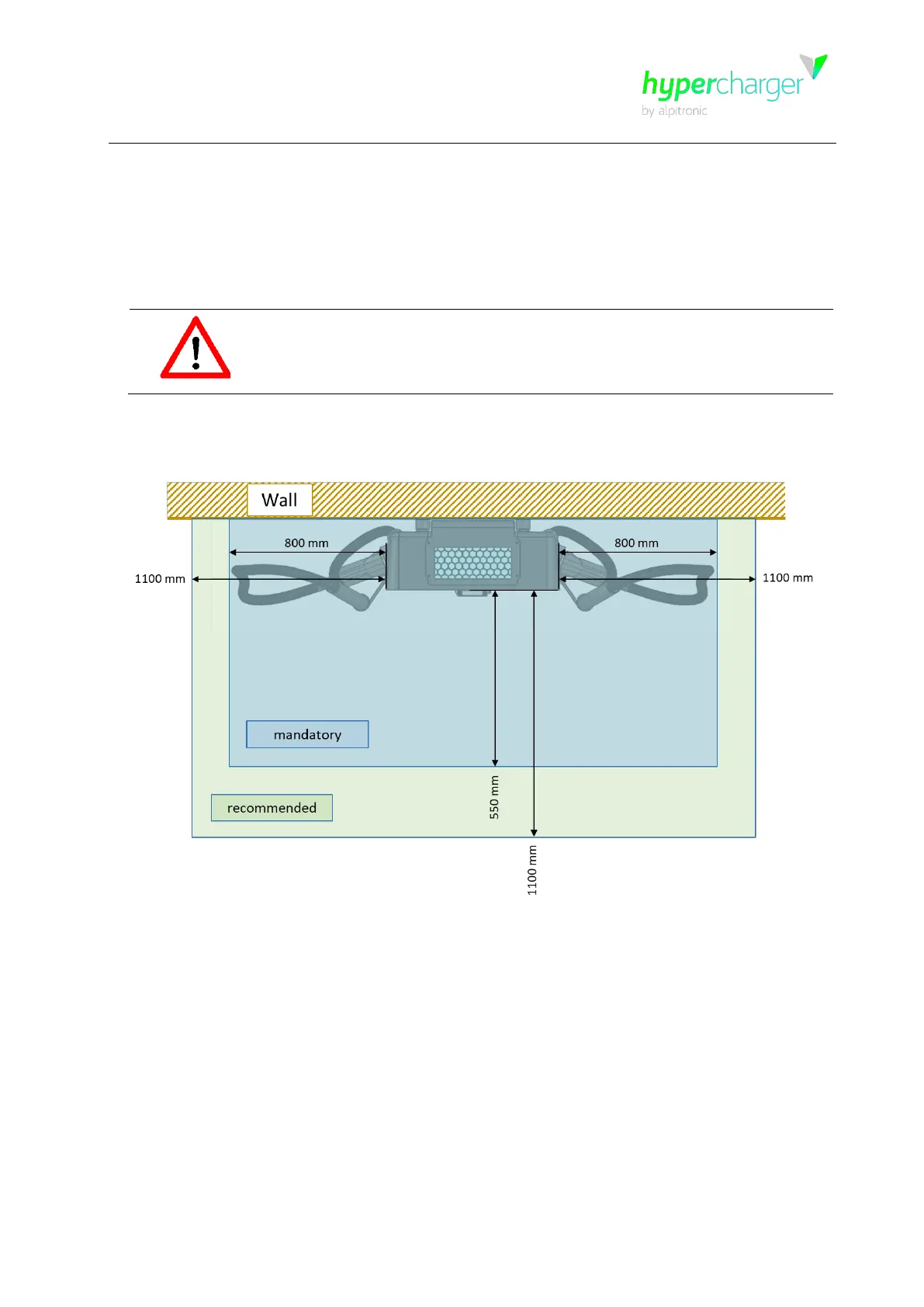

Figure 14: Recommended minimum distances for site selection
The recommended distances are designed for convenient maintenance of the HYC_50, the
minimum distances represent the absolute minimum for maintenance work, e.g. to be able
to exchange a power unit.
The ground conditions should be as flat and level as possible in the areas shown.
