Frame and suspensions
FRAME
Specification Desc./Quantity
Type Adjustable composite structure aluminium frame with cast el-
ements.
Steering rake angle 24.1° (measurements with respect to bare chassis)
SUSPENSIONS
Specification Desc./Quantity
Front fork Adjustable upside-down hydraulic fork with 41 mm (1.61 in)
stanchions
Front stroke 120 mm (4.72 in)
Rear shock absorber Piggyback shock absorber with adjustable spring pre-load,
length and hydraulic rebound damping.
Rear stroke 52 mm (2.05 in)

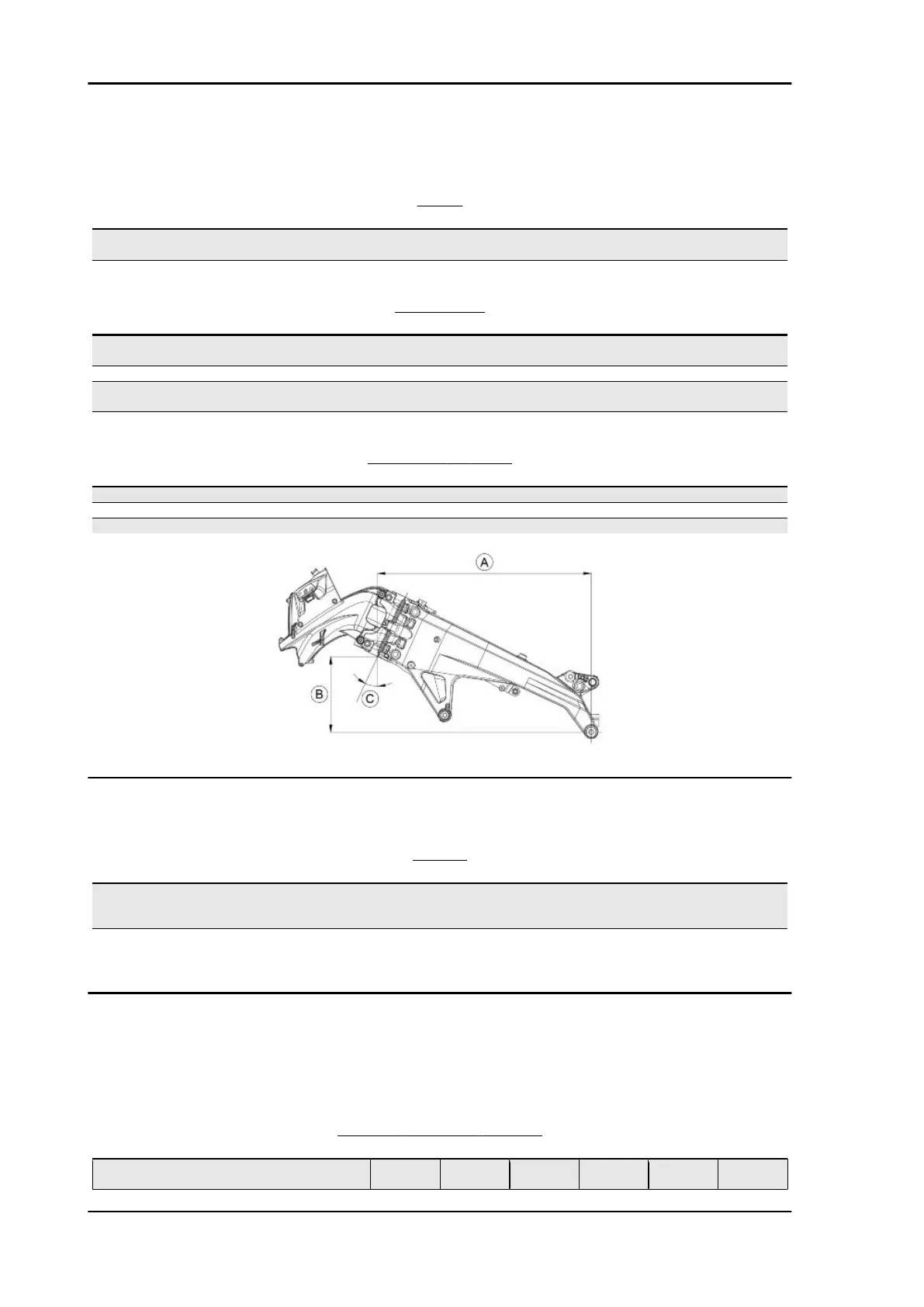

DIMENSIONS A AND B
Specification Desc./Quantity
Size "A" 655.5 mm (25.80 in) (measurements refer to the bare chassis)
Size "B" 337.5 mm (13.28 in) (measurements refer to the bare chassis)
Angle "C" 24.1° (measurements with respect to bare chassis)
Brakes
BRAKES
Specification Desc./Quantity
Front 320 mm (12.60 in) discs, four-piston callipers - with 32 mm
(1.26 in) pistons and 2 pads - radial master cylinder and steel
braided brake hose.
Rear 220 mm (8.66 in) disc, two-piston calliper - with 34 mm (1.34
in) pistons - master cylinder with integrated reservoir and steel
braided brake hose.
Tightening Torques
If the following tables do not expressly indicate the tightening torque values, refer to the table with the
generic torque values indicated below.
GENERAL TIGHTENING TORQUES
M4 M5 M6 M8 M10 M12
Metric tightening torque: TE - TEFL - SHC - TBEI
- TCC - TS
3 Nm (2.21
lb ft)
6 Nm (4.43
lb ft)
10 Nm
(7.38 lb ft)
25 Nm
(18.44 lb ft)
50 Nm
(36.88 lb ft)
80 Nm
(59.00 lb ft)
Characteristics RS 660 - Tuono 660
CHAR - 20

APRILIA RS 660 Specifications

General

Displacement	659 cc
Bore x Stroke	81 mm x 63.93 mm
Compression Ratio	13.5:1
Maximum Power	100 HP (73.5 kW) @ 10, 500 rpm
Maximum Torque	67 Nm @ 8, 500 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Front Tire	120/70 ZR 17
Rear Tire	180/55 ZR 17
Seat Height	820 mm
Dry Weight	169 kg
Wet Weight	183 kg
Engine Type	Parallel twin
Fuel System	Electronic fuel injection with 48 mm throttle bodies
Front Suspension	Kayaba 41 mm upside-down fork, adjustable rebound and preload
Rear Suspension	Kayaba monoshock, adjustable rebound and preload
Front Brake	Dual 320 mm discs, Brembo radial calipers
Rear Brake	220 mm disc, Brembo caliper
ABS	Cornering ABS
Fuel Capacity	15 liters
Electronics	Ride-by-wire, multiple riding modes, traction control
