PE6108AV / PE6208AV / PE8208AV User Manual
6
Components

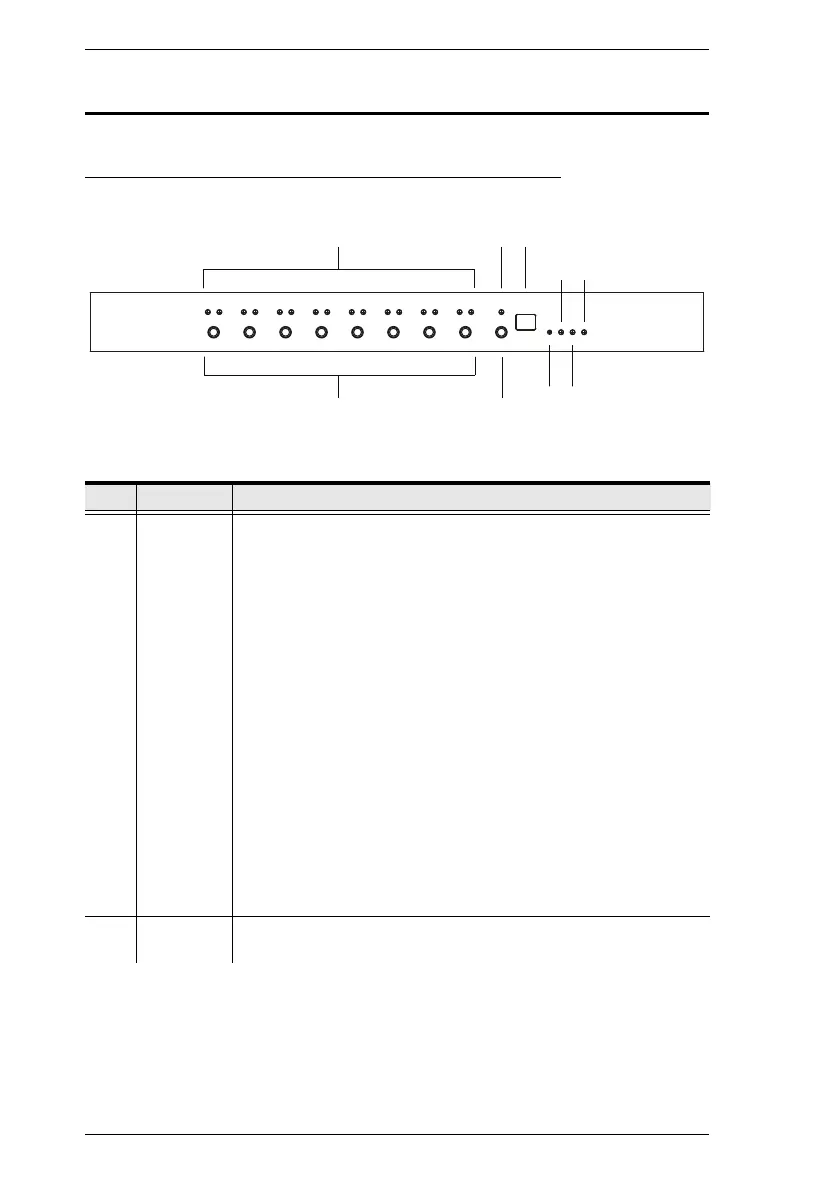

PE6108AV / PE6208AV / PE8208AV Front View
No. Item Description
1 Port LED The Port LEDs provide status information about their
corresponding AC outlet ports. There is one pair of LEDs for each
port. The one on the left is the Local LED; the one on the right is
the Power LED:
A Local LED lights GREEN to indicate that the device attached
to its corresponding port is capable of being controlled locally
via the Power Control Button. The Local Mode is enabled/
disabled with the Outlet Locked check box in the web GUI.
A Power LED lights ORANGE to indicate that there is electricity
going to its corresponding outlet. The LED flashes under the
following conditions:
If Modem Ring Resume is enabled (see Modem Ring
Resume*, page 30), an outlet still receives electricity even
when its corresponding computer has been powered OFF.
The Power LED blinks OFF, then ON for 8 seconds, then
OFF, then ON for 8 seconds, etc., to indicate this situation.
When a power status change is pending, the LED flashes
until the change has taken place.
If both LEDs flash it indicates that there is either an
overcurrent situation, or the relay has failed.
2 Current
LED
Lights to indicate that the Current (in amps) is being displayed on
the Status LED.
1
6
7
2 3
8 9
4
5
