PE6108AV / PE6208AV / PE8208AV User Manual
8

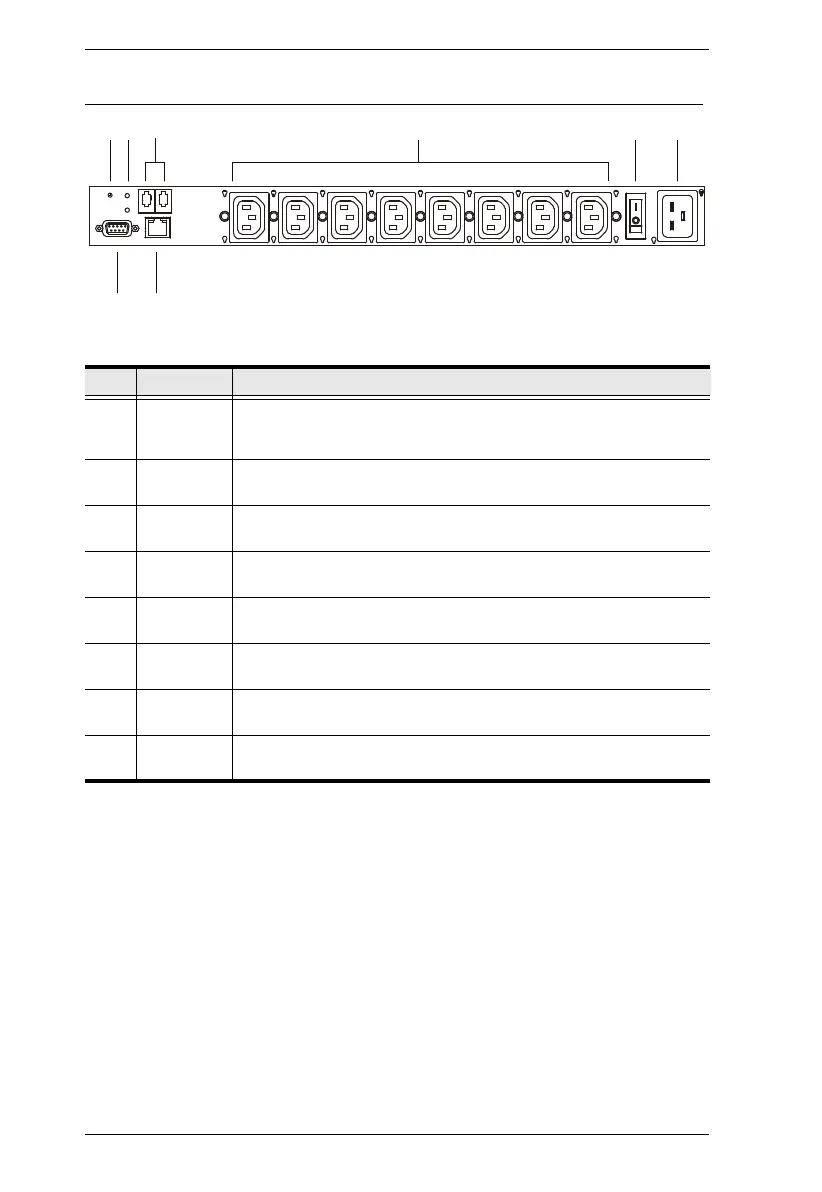

PE6108AV / PE6208AV / PE8208AV Rear View (exclude PE6208AVX)
PE6208AVG rear view is used as the example above.
No. Item Description
1 Reset
Switch
Press and release to reboot the PDU. This switch is recessed and
must be pushed with a thin object, such as the end of a paper clip,
or a ballpoint pen.
2 Sensor
LEDs
Two Sensor LEDs light GREEN when a sensor is connected to the
respective sensor port.
3 Sensor
Ports
External sensors plug into these two RJ-11 ports.
4 Power
Sockets
The power cables that connect to the computers plug in here.
5 Power
Switch
This standard rocker switch powers the PE6108AV / PE6208AV /
PE8208AV On and Off.
6 Power
Socket
The power cable from the AC source plugs in here.
7 RS-232
Port
This port can be used to attach to a computer for local power on/
off/reboot control.
8 LAN Port The Cat 5e cable that connects the PE6108AV / PE6208AV /
PE8208AV to the Internet plugs in here.
432
7
8
561
