Function
• To carry out a display test, i.e. to check whether the display and LEDs are still intact.
Procedure
Starting from the Main screen,

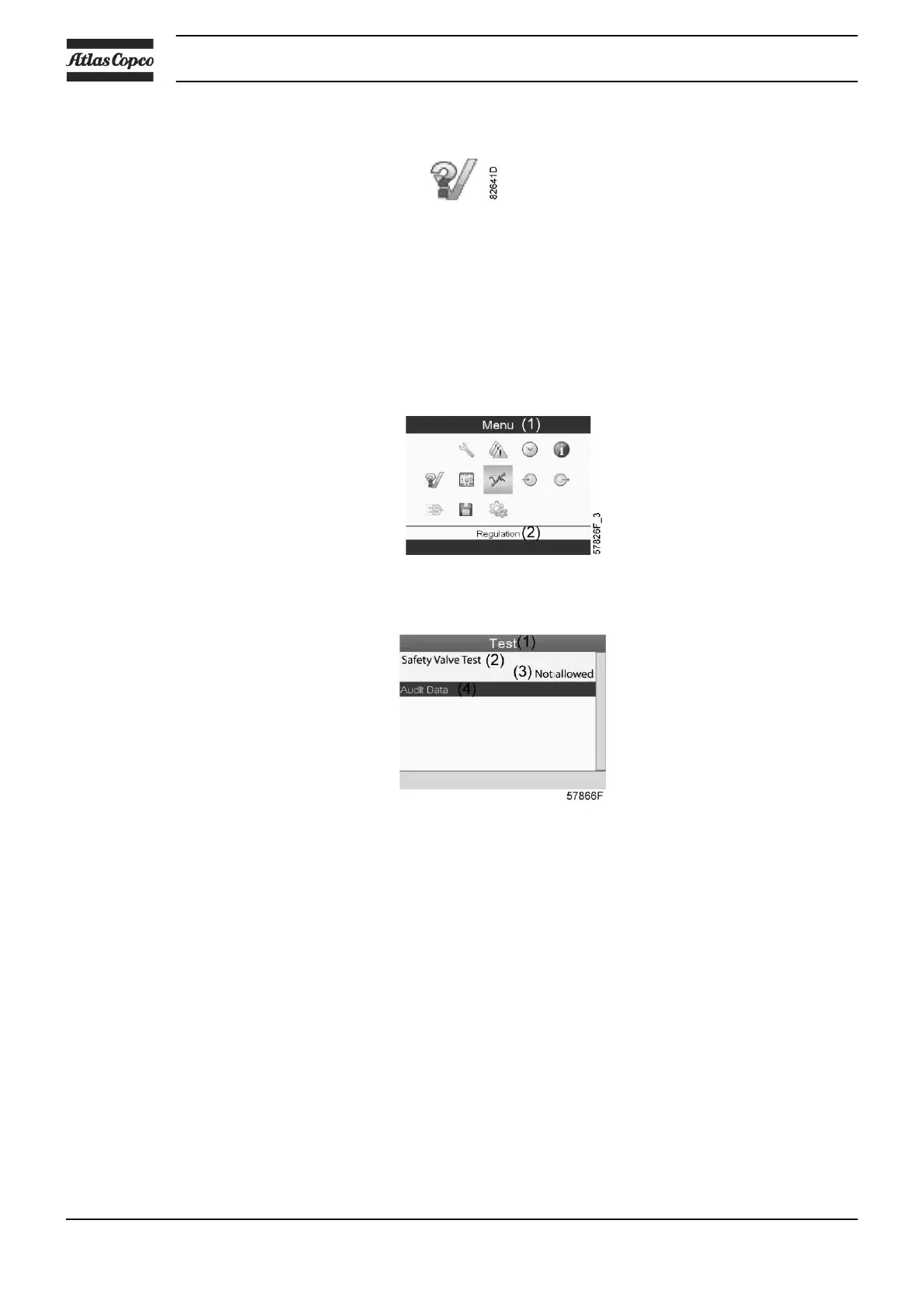

• Move the cursor to the action button Menu and press the enter key (2), following screen appears:
• Using the scroll keys (1), move the cursor to the test icon (see above, section Menu icon)
• Press the enter key (2), following screen appears:
• The safety valve test can only be performed by authorized personnel and is protected by a security code.
• Select the item display test and press the enter key. A screen is shown to inspect the display, at the same
time all LED's are lit.
Instruction book
108 2920 7109 60

Atlas Copco GA 75+ Specifications

General

Model	GA 75+
Category	Air Compressor
Power	75 kW
Capacity FAD	13.5 m³/min
Working Pressure	7.5-13 bar
Noise Level	70 dB(A)
Cooling System	Air Cooled
Drive Type	Direct Drive
