Atlas Copco GA 75+ User Manual

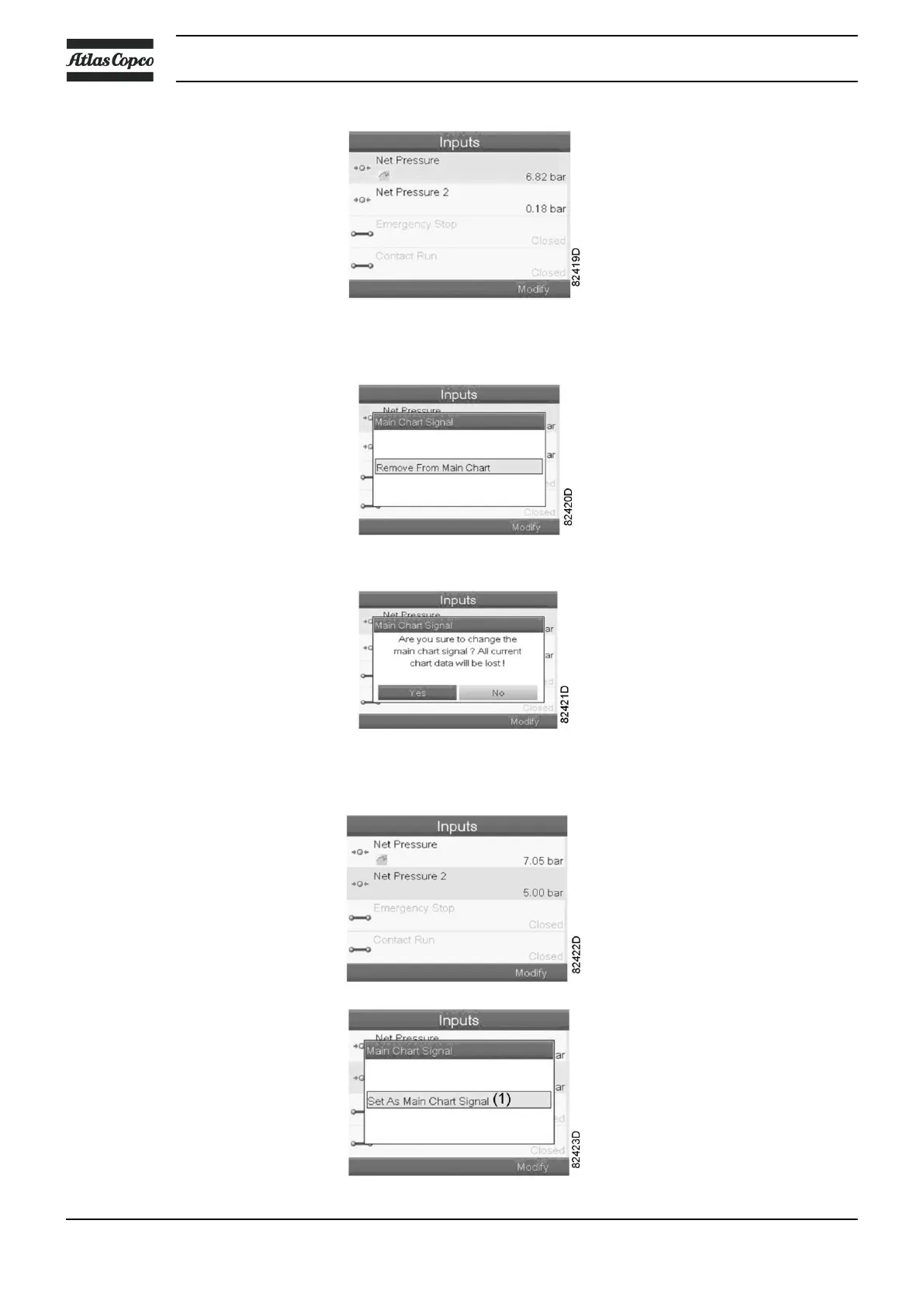

The first item in the list is highlighted. In this example, the Net Pressure is selected (chart icon).
To change, press the Enter button again: a pop-up window opens:
Press Enter again to remove this input from the chart. Another confirmation pop-up opens:
Select Yes to remove or No to quit the current action.
In a similar way, another input signal can be highlighted and selected as Main Chart signal:
Instruction book
82 2920 7109 60

Atlas Copco GA 75+ Specifications

General

Model	GA 75+
Category	Air Compressor
Power	75 kW
Capacity FAD	13.5 m³/min
Working Pressure	7.5-13 bar
Noise Level	70 dB(A)
Cooling System	Air Cooled
Drive Type	Direct Drive
