6. Input & communication
6.2 Local keypad of the DP2K C-series projector
Identification of the keys
1
2
3
4
5
6
2
1
3
4
5
6
7
8

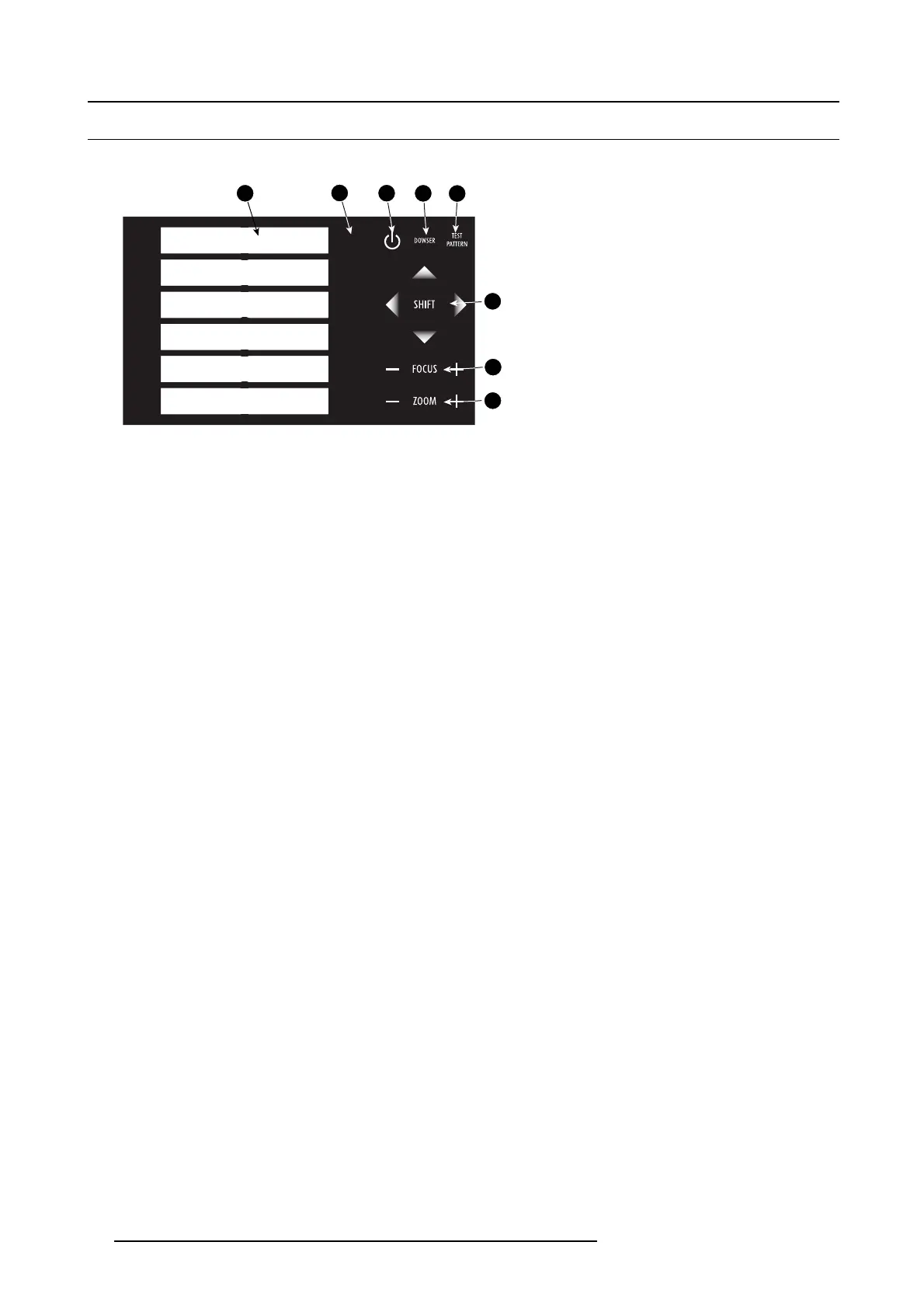

Image 6-2
Local keypad
1 Marker area for macro name
2 Numeric keyboard
3 Standby key
4 Dowser open/close switch
5
Test pattern toggle switch
6 Lens shift up/down, left/right
7
Lens focus
8 Lens zoom
Numeric keys
All the numer ic keys (2) of the local keypad have a blue backlight during norm al operation. When the au thorization process is
activated with the security key, the backlight co lor of the num eric keys 1 to 6 c hanges to orange. Each key can be linked to a mac ro
which allows you to setup the projector to your requirements with one push of a button. Note that each n umeric key has a marker
area (1) where you can write down the nam e of the m acro.
Standby key
Standby key (3) switches ON or OFF the lamp and lamp electronics. The lamp c ooling fans remain ac tive for a bout 5 m inute s. The
speed of the other fans is reduced. The backlight color of the standby key remains red in standby mode and changes to green in
operation m ode.
Dowser key
The dowser key (4) opens or closes the dowser. The backlight color of the d owser key is green when the dowser is open and r ed
when the dows er is closed.
Test pattern k ey
The test pattern key (5) gives you direct access to the internal test patterns of the projector.
Shift keys
The shift keys (6) allow you to shift the lens up/down or left/right. This functionality is only ava ilable in case of a m otorized lens shift.
Focus keys
The focus keys (7) a llow you t
o focus the projected im age on the screen. This functionality is only a vailable in case of a motorized
lens and lens holder.
Zoom keys
The zoom keys (8) allow you to zoom in or out the projected image on the screen. This functionality is only available in case of a
motorized lens and lens holder.
48
R5905050 DP2K C-SERIES 10/07/2012
