10. Removal and installation of projector covers
Necessary tools
3 mm Allen wrench.

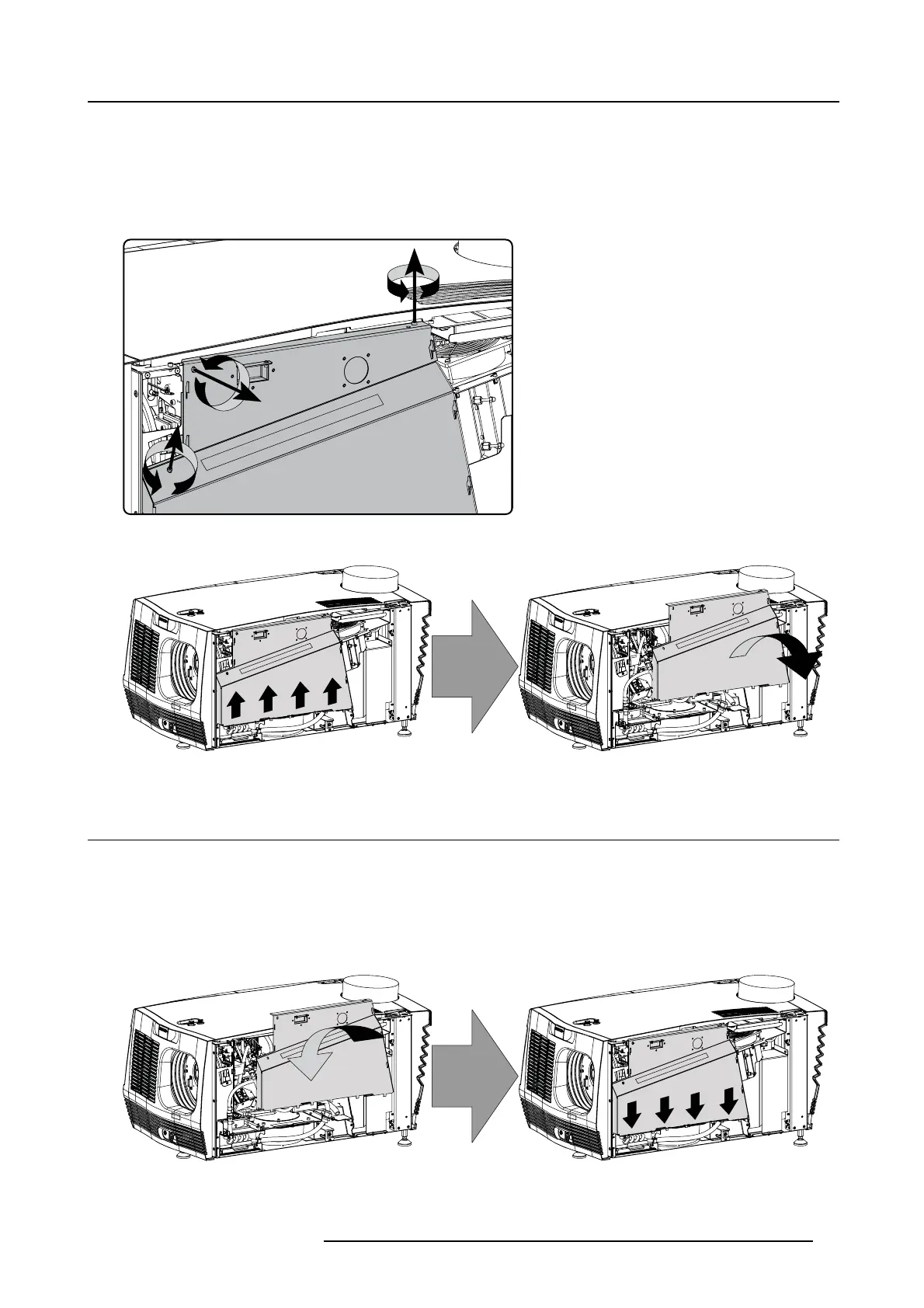

How to open the sealed compartment of the Light Processor Unit?
1. Release the three hexagon head c ap screw s as illustrated. Use for that a 3 mm Allen w rench.
Note: A w asher is m ounted between the plate and the screw head.
Image 10-13
2. Lift up the c over plate slightly, using the two lower lips provided, and then remo ve the cover plate away from the projector.
Image 10-14
10.8 Close the sealed compartment
Necessary tools
3 mm Allen wrench.
How to close the sealed compartment of the Light Processor Unit?
1. Place the cover p late in its place as illustrated.
Caution: Do not damage the micro switch at the top of
the projector.
Image 10-15
2. Fasten the three hex agon head cap screws as illustrated. Use for that a 3 mm Allen wrench.
Note: Insert a washer between the each screw and the plate.
R5905050 DP2K C-SERIES 10/07/2012
73
