QUIK DROP SETUP

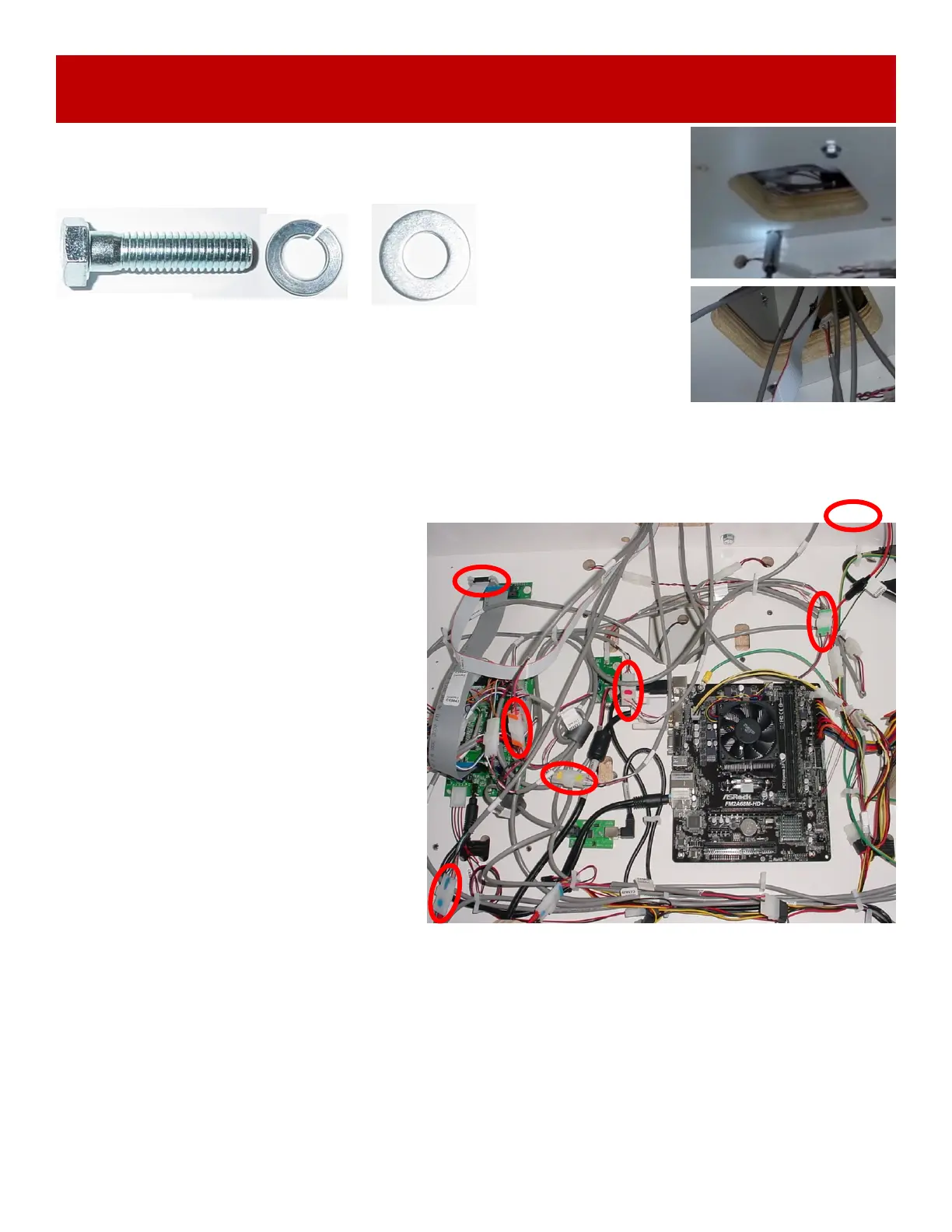

Secure the marquee in place by threading 4 bolts (A5BOHH090), 4 lock
washers (A5WALO010) and 4 washers (A5WAFL050) up into the
marquee. Tighten all 4 bolts using a 9/16” wrench.
Pull the 7 cables down from the marquee into the lower cabinet.
A5BOHH090
A5WAFL050
A5WALO010
Plug the 7 cables from the marquee into the color coded connectors as shown:
CE5842 power cable to CE5859 - 4 pin flat
CE5841 ribbon cable to board
CE5826 motor cable to CE5827 - Green
CE5853 sensor cable to CE5815 - Red
CE5825 speaker cable to CE5828 - Orange
CE5851 sensor cable to CE5822 - Yellow
CE5858 display cable to CE5838 - Blue
