Bay-Tek quik drop User Manual



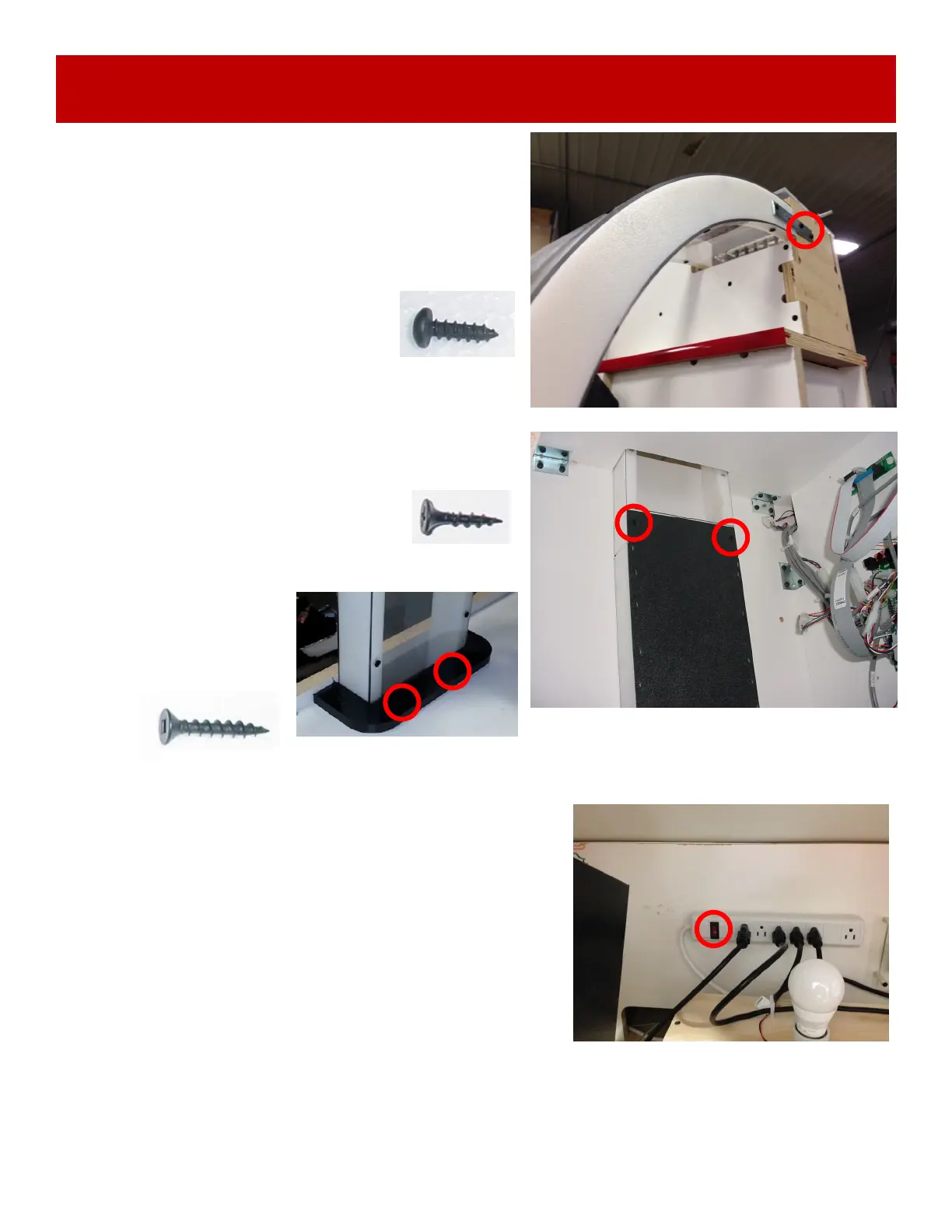

QUIK DROP SETUP
Open the back door of game and remove the upper
ball return chute.
Carefully lift upper ball return chute to the top of the
game and position into the top of the game and up
against the marquee.
Secure the top of ball return chute with
2 of the black 10 screws using a # 2
square bit.
Inside the lower cabinet, secure the lower ball return
chute by installing 2 of 3/4 “ bugle screws using a
Phillips screwdriver.
At the top of the game,
install 2 of 1” bugle screws
using a # 2 square bit
Unlock the coin box door and remove power cord from
the coin box. Plug one end into the back of the cabinet
and the other into the wall.
Open the front door of the cabinet and flip the rocker
switch on the power strip to power on game.
You’re ready to Quik Drop!
