Programming
BC3150
67
Version: 2.1.0

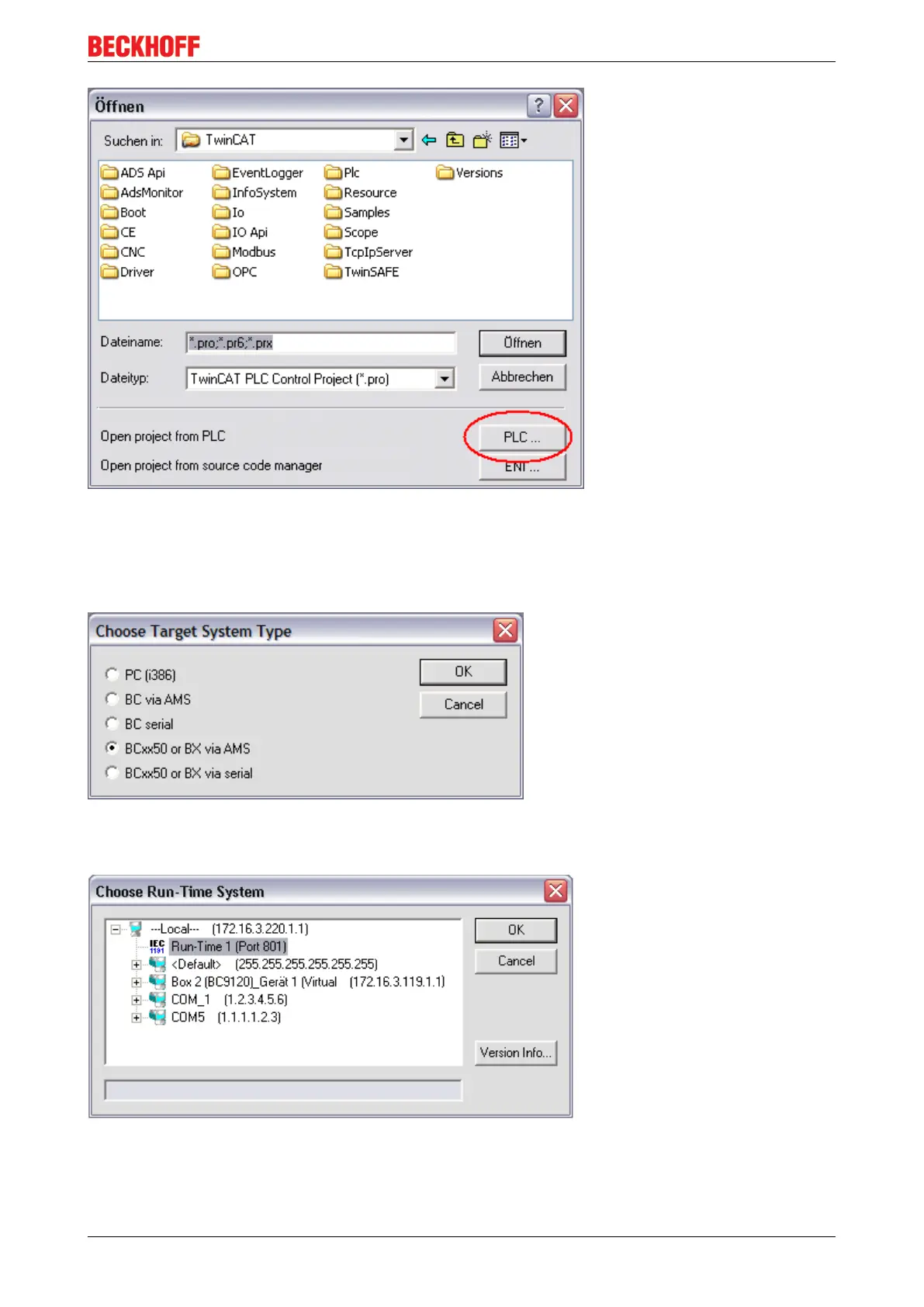

Fig.62: Uploading a program
Select the data transfer route:
•
BCxx50 or BX via AMS
, if you are connected to the Bus Terminal Controller via the fieldbus, or
•
BCxx50 or BX via serial
, if you are connected to the Bus Terminal Controller via the serial interface.
Fig.63: Selecting the data transfer route
Then select the device and confirm with OK.
Fig.64: Selecting the device
The source code will now be uploaded.
