Programming
BC315074 Version: 2.1.0
The Bus Terminal Controller requires the following setting:
• Baud Rate: 9600/19200/38400/57600 baud (automatic baud rate detection)
• Stop bits: 1
• Parity: Straight line

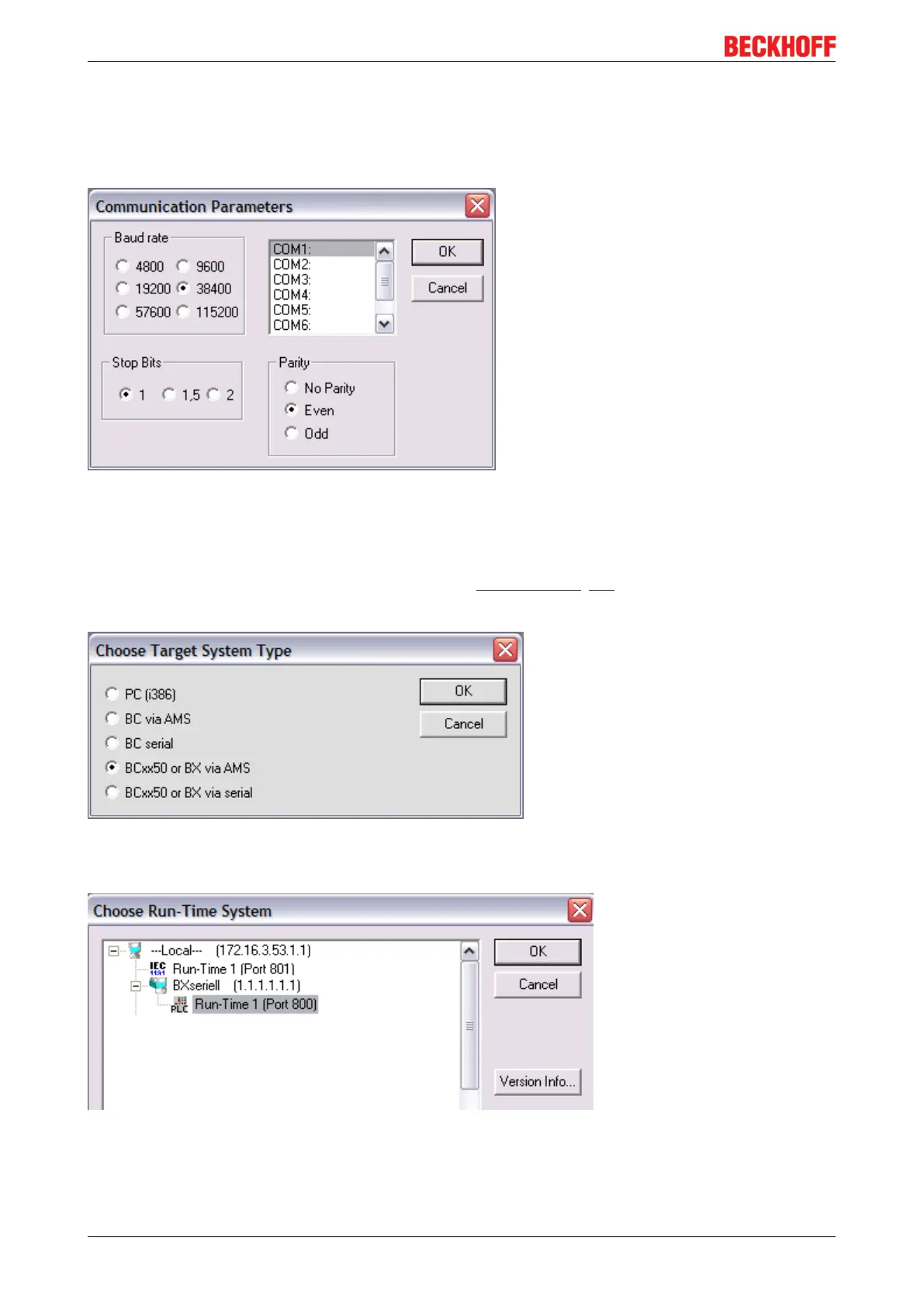

Fig.68: Parameterization of the serial interface
Program transfer via the serial interface and ADS
The Bus Terminal Controller can be programmed via the PC's RS232 interface. Before you can work with the
Bus Terminal Controller, TwinCAT must be notified of it (see serial ADS [}35]).
Select the ADS connection in TwinCAT PLC Control.
Fig.69: Selecting the data transfer route - AMS
PLC Control can be accessed via Online/Communication Parameters....
Fig.70: Selecting the device
