2.1.2 EL2002 - LEDs and connection

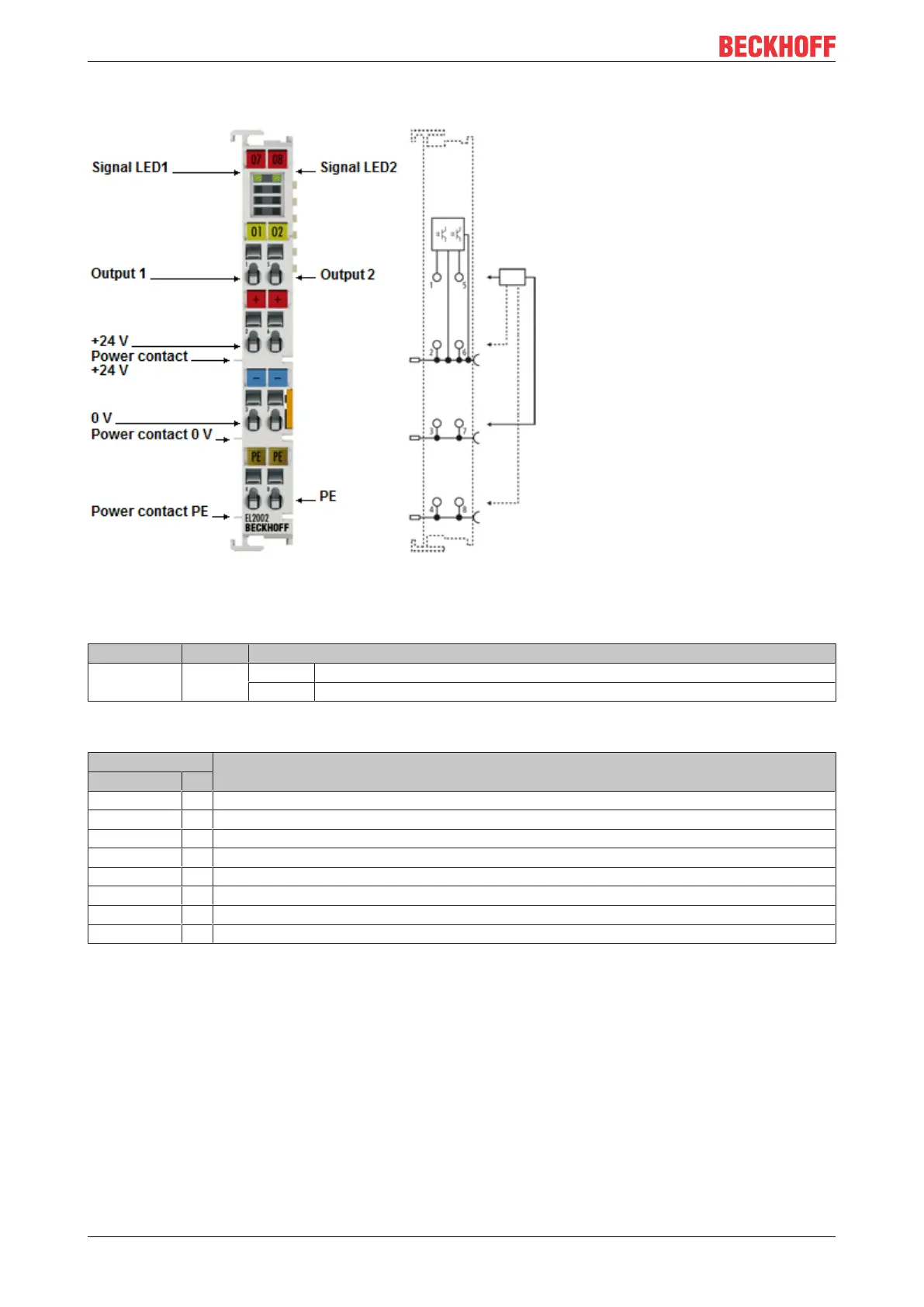

Fig.14: EL2002
EL2002 - LEDs
LED Color Meaning
OUTPUT 1
OUTPUT 2
green off No output signal
on 24V
DC
output signal at the respective output
EL2002 - Connection
Terminal point Description
Name No.
Output 1 1 Output 1
+24V 2 +24V (internally connected to terminal point6 and positive power contact)
0V 3 Ground for output1 (internally connected to terminal point7 and negative power contact)
PE 4 PE (internally connected to terminal point8)
Output 2 5 Output 2
+24V 6 +24V (internally connected to terminal point2 and positive power contact)
0V 7 Ground for output2 (internally connected to terminal point3 and negative power contact)
PE 8 PE (internally connected to terminal point4)
